SUSPENSION
41

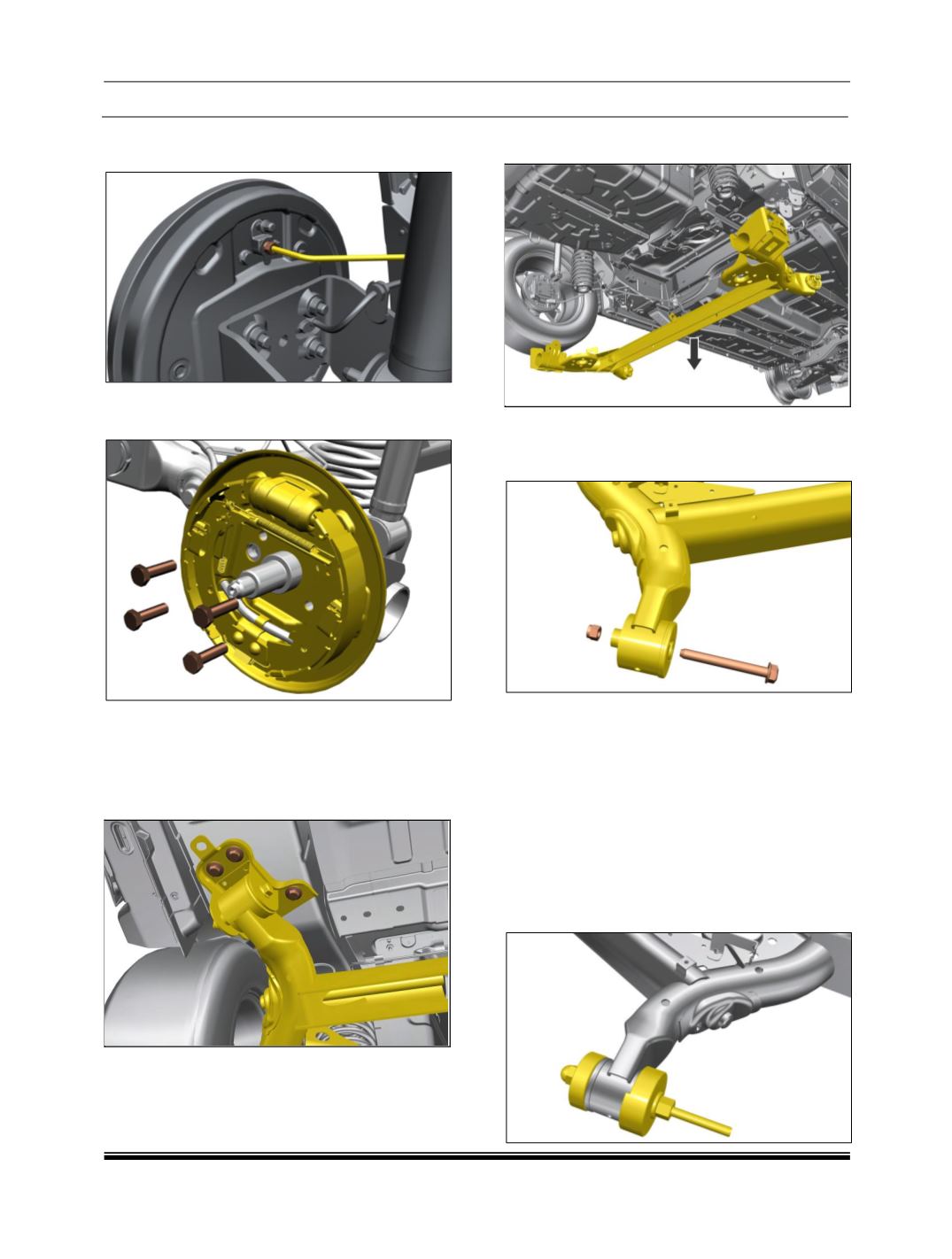

cap on to the bundy pipe to avoid brake fluid
from spilling and contamination.
16.Remove the stub axle and back plate along with
brake shoe assembly.
17. Remove the shock absorber lower bolts and
coil springs. (Refer removal and refitment of
shock absorber and coil springs)
18. Loosen and remove the twist beam bracket
bolts on both sides.
.
19. Lower the twist beam along with bracket
20. Remove the twist beam cross bolt on both
sides
21. Twist beam bush removal
22.Remove twist beam front pivot bush using
special tools as shown in below arrangement.
NOTE:
Apply soap water to the bush and the bore of
twist beam assembly before installation.
Tightening of RTB on body to be done in
preloading condition. No jacking to be done
on beam, avoid oil based lubricant while
pushing the bushes in eye
