1.5L REVOTORQ BS VI ENGINE
175

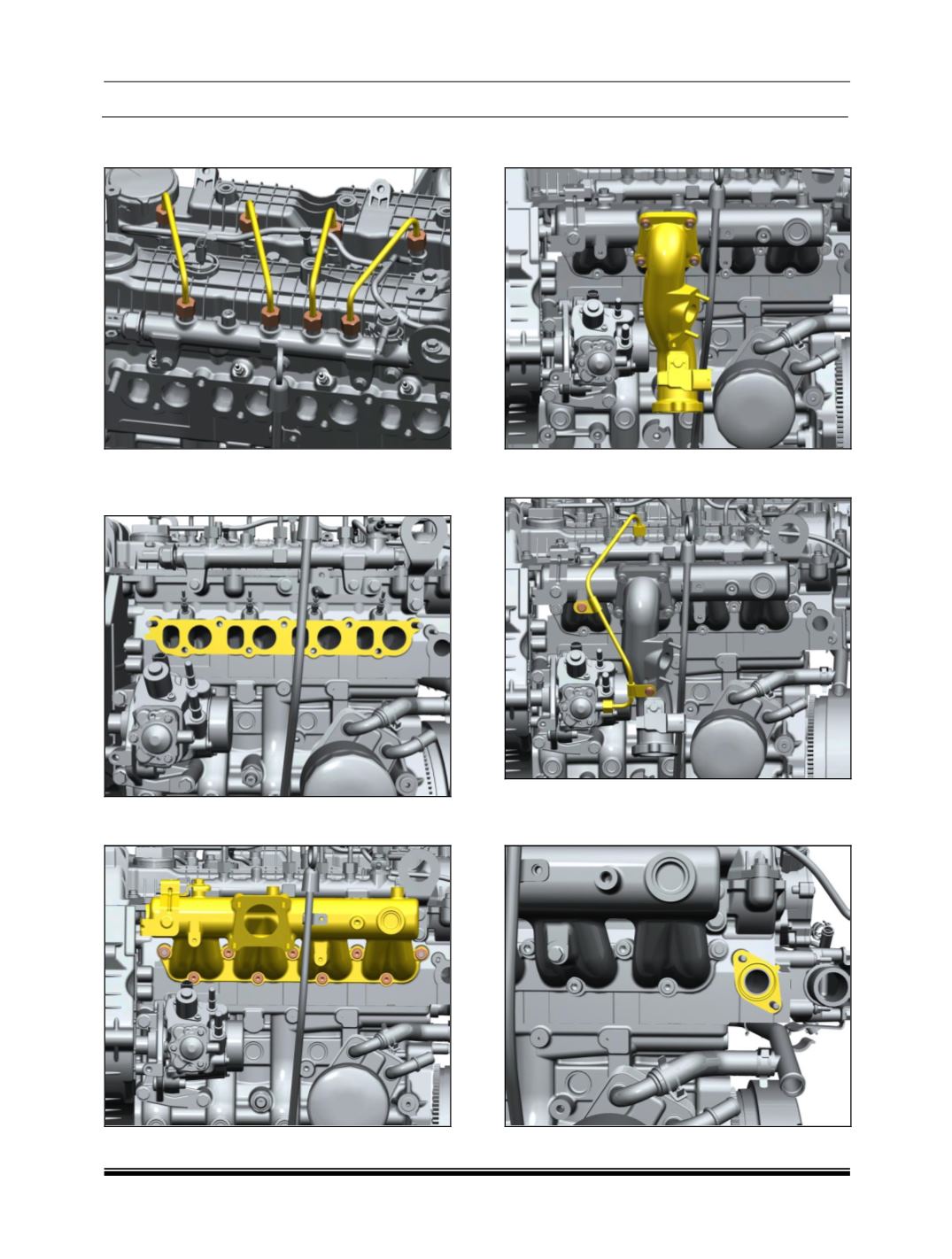

7. Install the high pressure fuel lines on all the
fuel injectors.
8. Place the gasket on the intake ports of the
cylinder head. Make sure to use new gasket
when installing.
9. Install the intake manifold assembly. Use
specified torque and tightening sequence.
10.Install air intake elbow along with air
temperature sensor.
11.Install the H.P. fuel line connected to the fuel
rail.
12.Place the gasket on the EGR ports of the
cylinder head. Make sure to use new gasket
when installing.
