1.5L REVOTORQ BS VI ENGINE
180

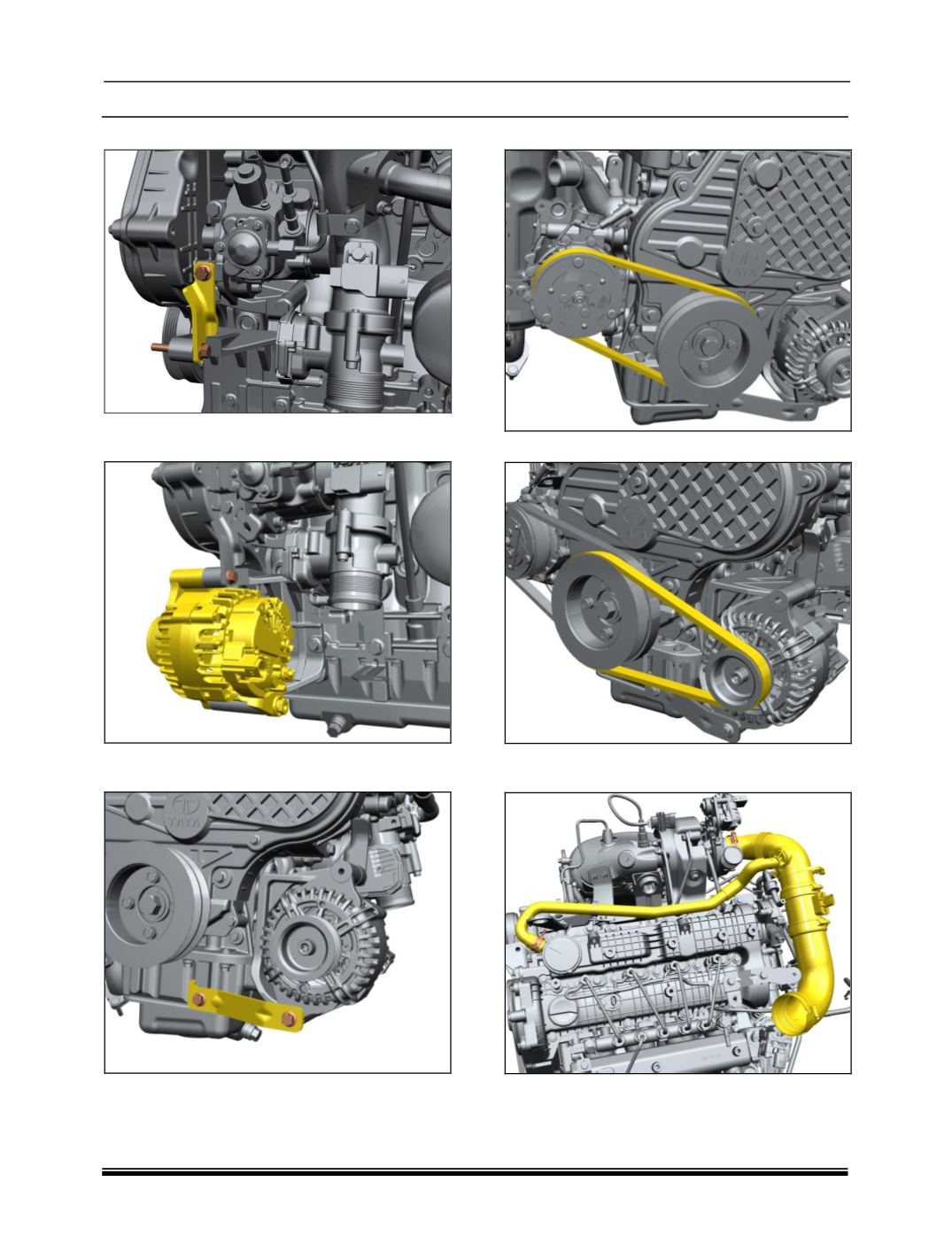

13.Install the support brackets.
14.Align the alternator assembly on the mounting
bracket and install the mounting bolt.
15.Install alternator support bracket mounting
bolts.
16.Install the compressor belt using special tool.
17.Install the alternator belt using the special tool.
18.Install oil separator hose and air duct to
turbocharger.
