1.5L REVOTORQ BS VI ENGINE
174

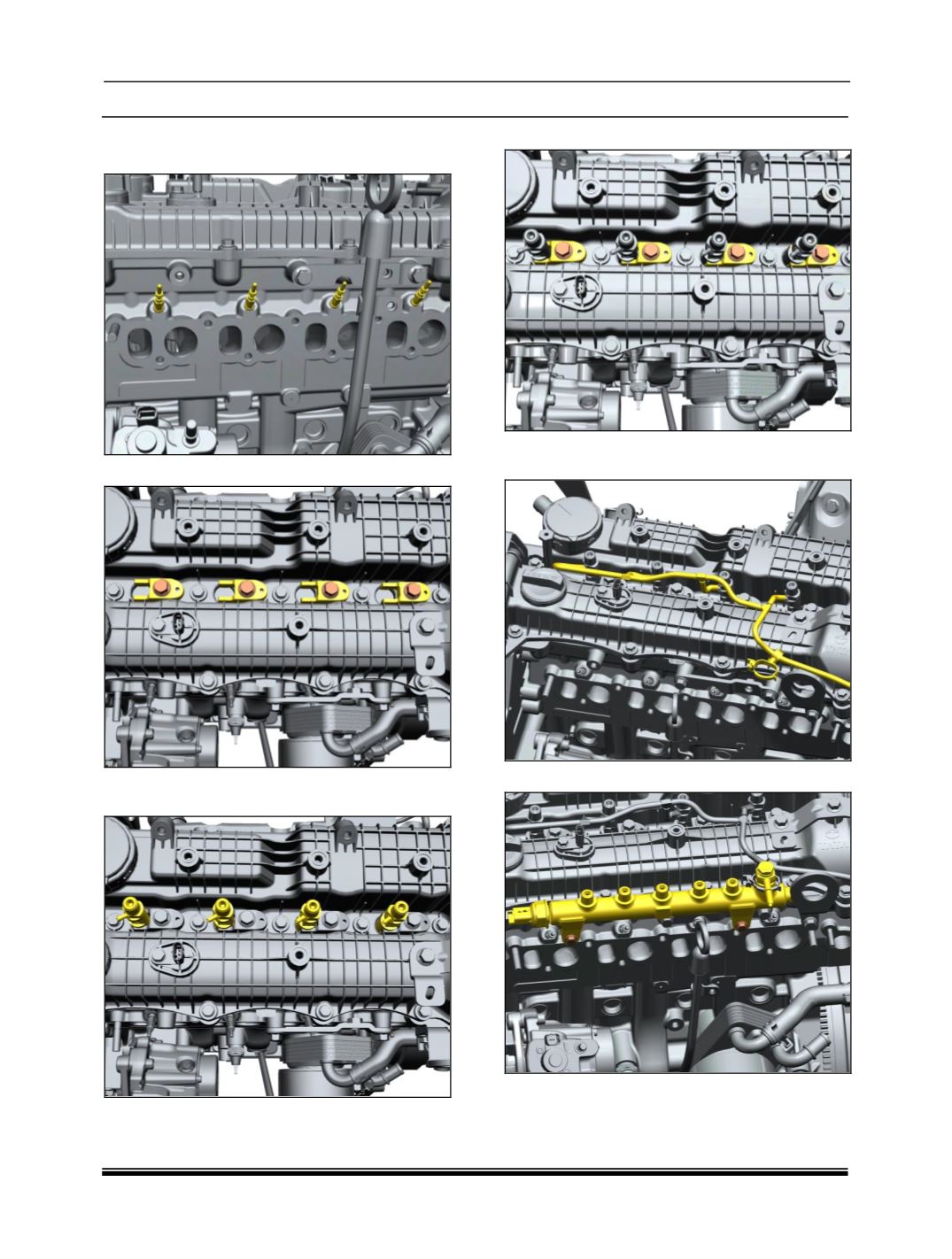

xi. FITMENT OF INTAKE MANIFOLD
1. Install all the glow plugs.
2. Loose fit the injector claws on the head cover.
3. Install all the four fuel injectors. Tighten the
injector claws.
4. Tighten the mounting bolts of the injector claw.
5. Install the back leak hose connected to the fuel
injector.
6. Install the fuel rail assembly.
