1.5L REVOTORQ BS VI ENGINE
157

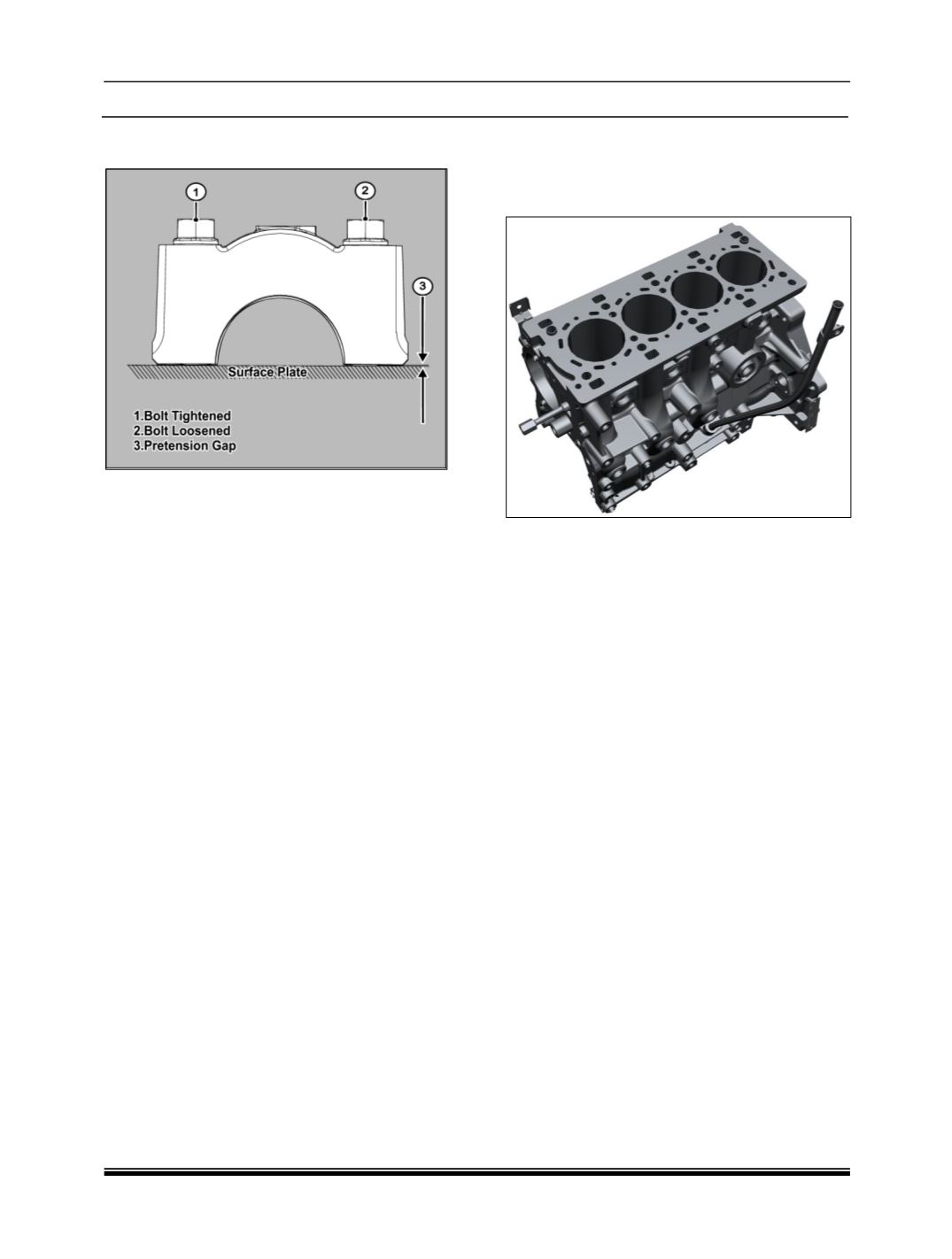

measurement has to be done on a flat surface
and not on cylinder block.
10.Main bearing shells are precision finished and
should not be bored or scrapped.
11.Select new pair of thrust washer according to
crank shaft 4th main journal width.
12.Pretension Gap: 0.06 to 0.09mm.
CYLINDER BORES
1. Clean cylinder bores thoroughly
2. Check cylinder bore dimension, taper and
ovality.
3. If taper and ovality is found to exceed specified
limit or bore is excessively worn out then
replace the block.
4. Record the readings in Engine inspection sheet
given in this manual.
NOTE
Select the bearing shell as per the crankshaft measurements observed. Refer selection table in ‘Assembly
Clearance’ section.
