1.2L REVOTRON ENGINE
87

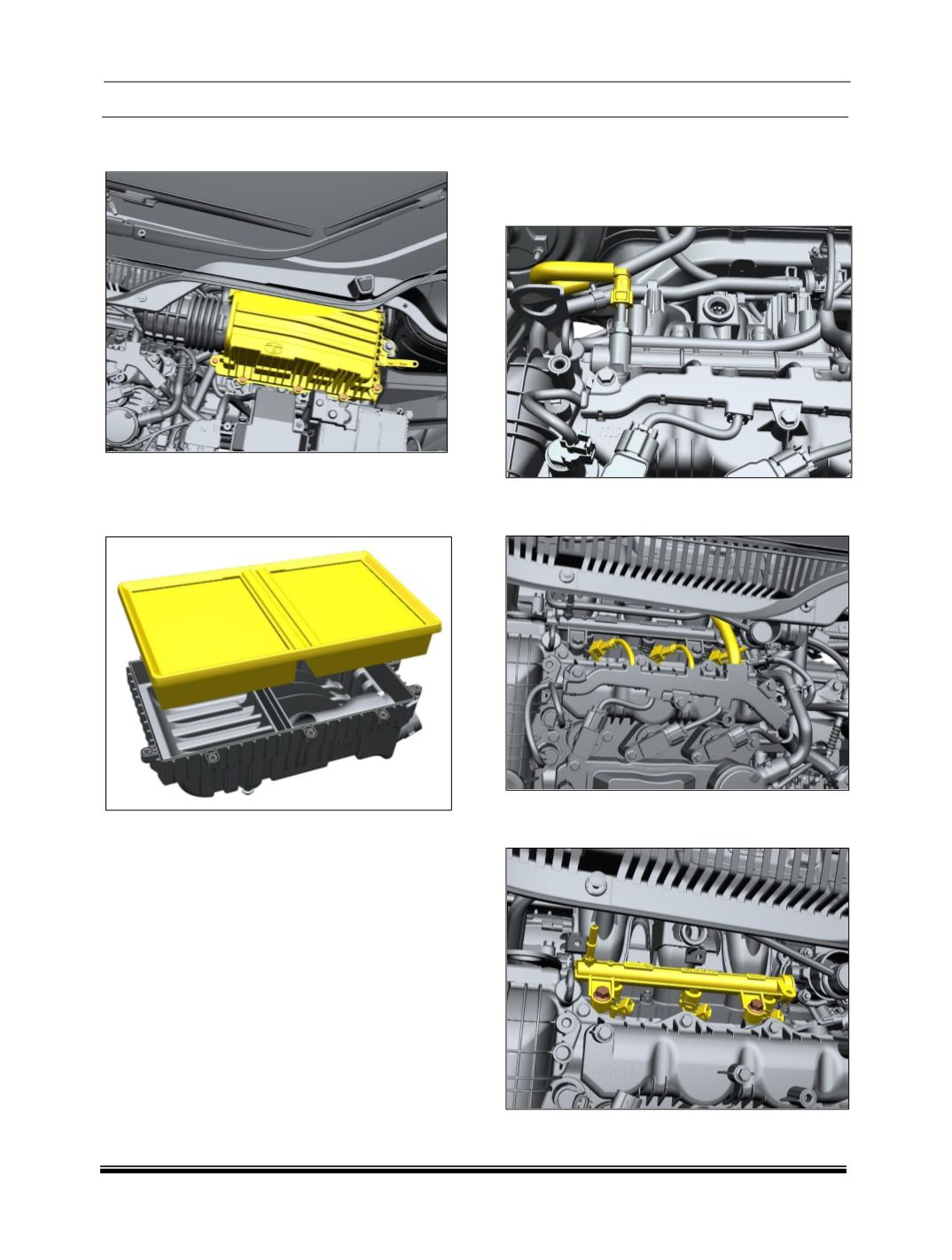

1. Remove the mounting bolts of the air filter
cover.
2. Set the air filter aside along with the air filter
hose.
3. Remove the filter element.
4. Inspect and replace filter element.
FITMENT
For fitment follow removal procedure in reverse.
D
.
FUEL RAIL AND INJECTOR
REMOVAL
1. Relieve fuel pressure and disconnect fuel line to
fuel rail.
2. Disconnect electrical connection to fuel injector
and pry out harness mounting on the fuel rail.
3. Remove the fasteners of rail and remove out
the rail along with injector.
4. Remove injector retainers.
