1.2L REVOTRON ENGINE
83

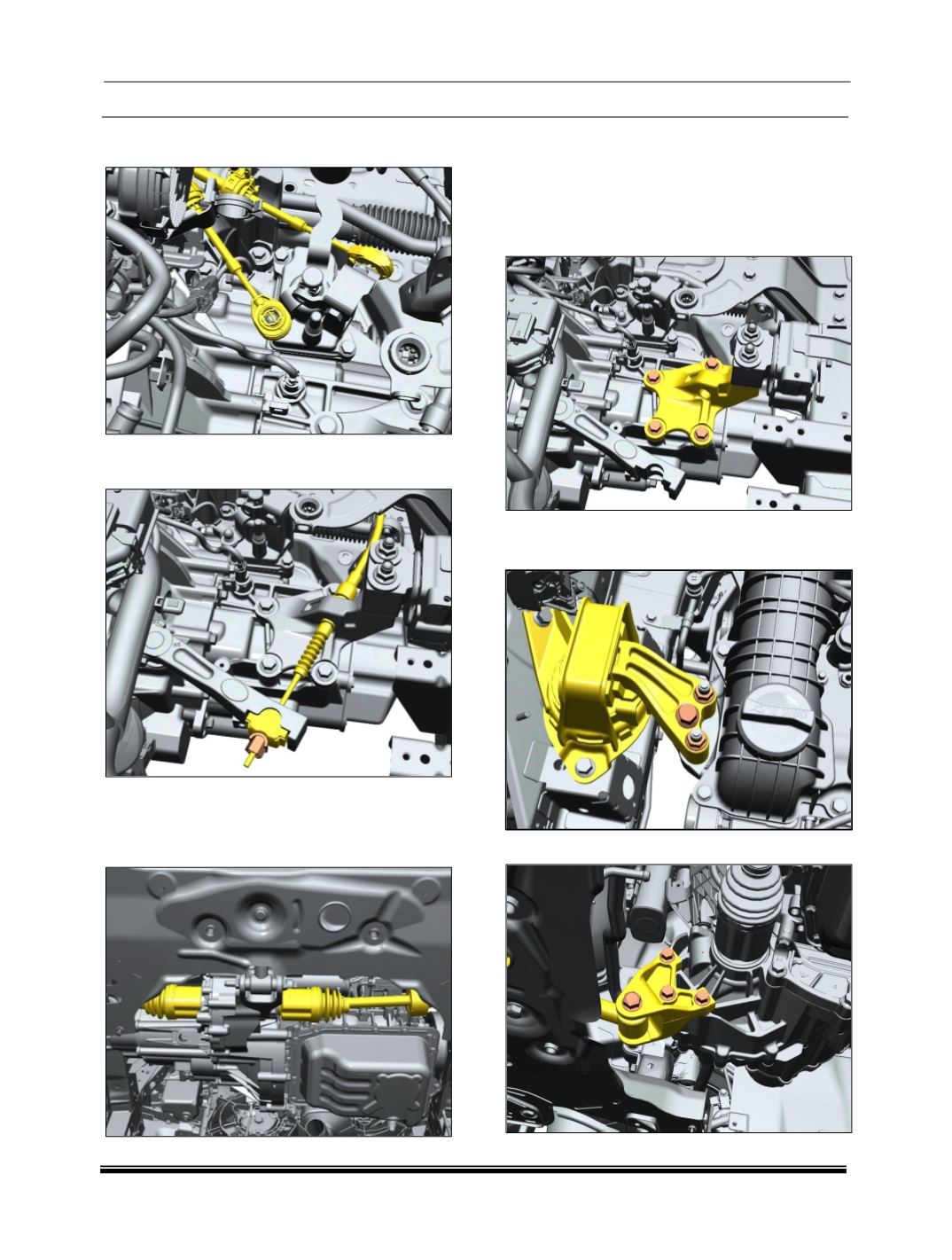

29. Disconnect the gear shift cable and selector
cable from the transaxle.
30. Disconnect the clutch cable connection from
the transaxle.
31. Remove front two tyres.
32. Disconnect the left and right drive shafts from
the vehicle. (For removal procedures refer
Transaxle section).
33. Use suitable belt/chain to fix a zip crane to the
engine lifting hooks located at front and rear of
the engine.
34. Raise the crane slightly up until very light
pressure is applied to the engine.
35. Remove the bolts on Engine 'B' mounting
bracket.
36. Remove the “A”- mounting bracket nuts (3 nos)
from engine side.
37. Remove the “C” mount.
