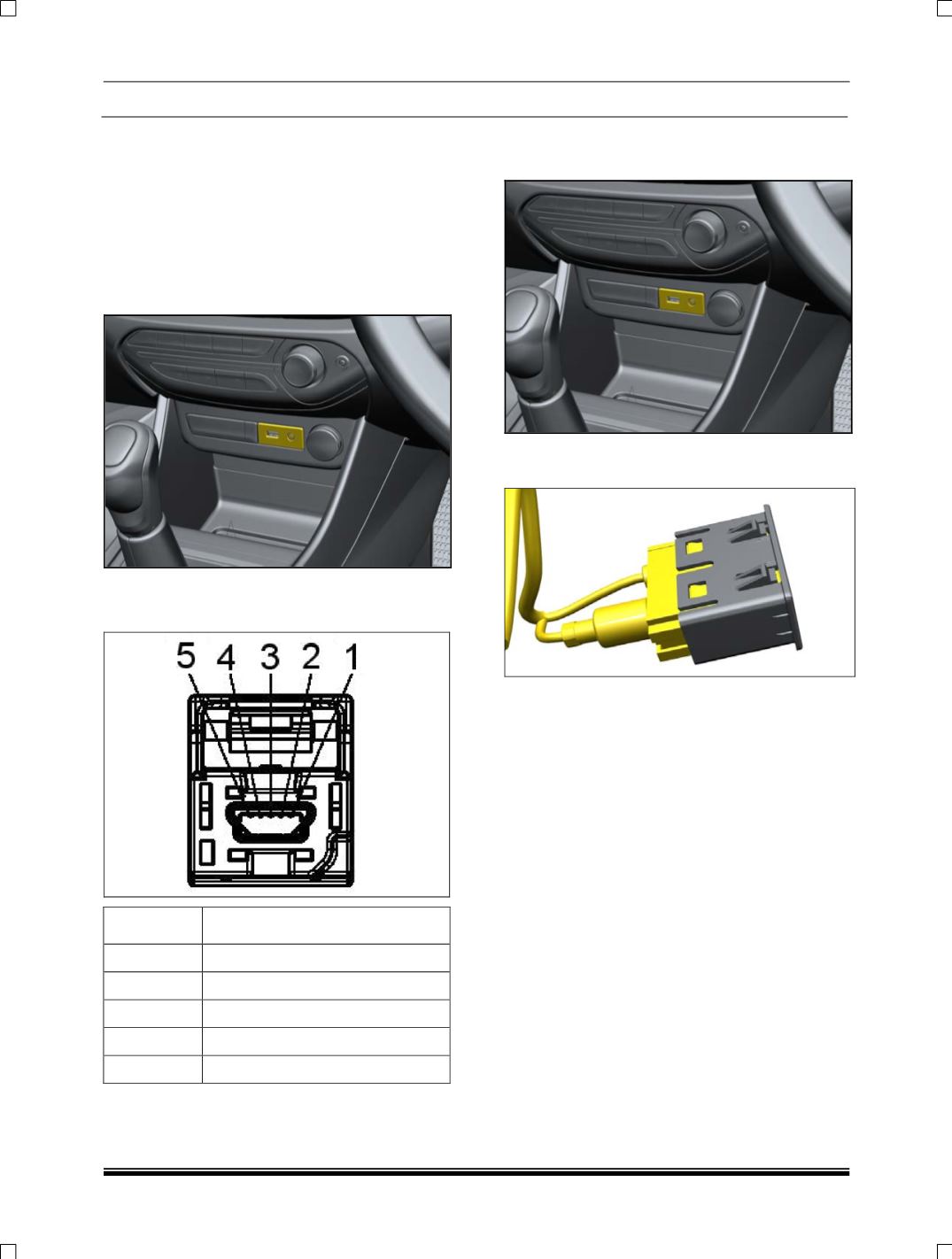

21.3 USB PORT
USB:
External memory devices like memory sticks / Pen
Drives, I-Pods can be connected for playing music
tracks stored in these devices through the vehicles
music system.
LOCATION
USB port is fitted below the Fascia switch.
PINOUT DETAILS
1. USB Connector
PIN
DESCRIPTION
1
NC
2
Vcc
3
D-
4
D+
5
GNF
REMOVAL
1. Gently pry out the module from the cutout.
2. Disconnect the electrical connections & take
out the switch assy.
REFITMENT
For refitment, follow the procedure in reverse.
