ELECTRICAL
72

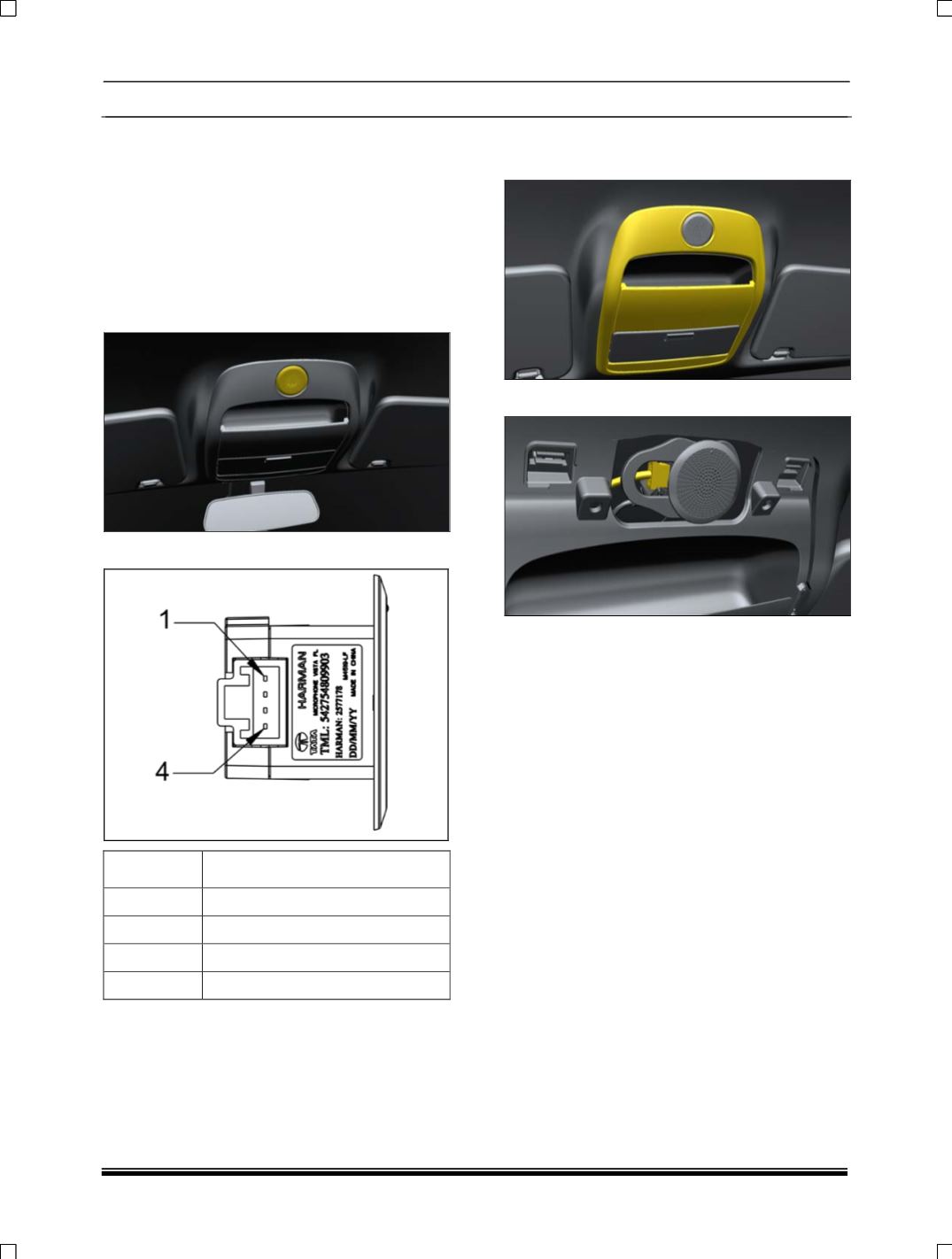

21.6. MICROPHONE (XZ-HIGH)
A microphone is an acoustic-to-electric transducer
or sensor that converts sound into an electrical
signal.
The microphone helps communicate calls through
the infotainment system. In some models provision
is given for fitment.
LOCATION
It is fitted above the driver’s seat on the headlining
PINOUT DETAILS
PIN
DESCRIPTION
1
MIC -
2
MIC +
3
NC
4
NC
REMOVAL:
1. Pull out the roof console bezel cover .
2. Disconnect the electrical connection.
3. Take out the microphone.
REFITMENT
For refitment follow the procedure in reverse.
