ELECTRICAL
64

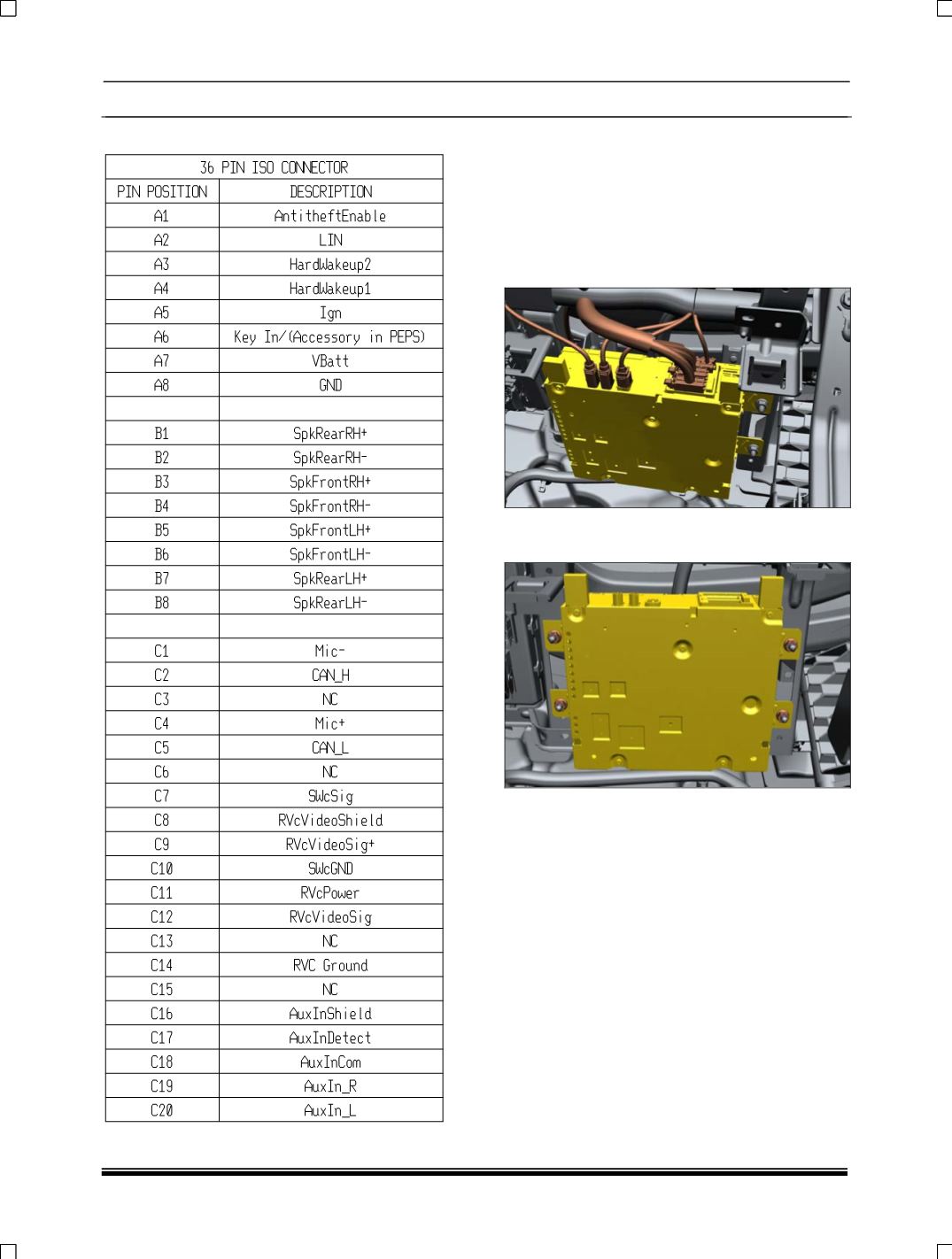

4. 36 PIN ISO CONNECTOR
REMOVAL
1. Disconnect –VE Terminal of Battery.
2. Remove
Glove
Box.
(Refer
Instrumental
cluster
Removal
procedure).
3. Disconnect all electrical connection on
silver Box.
4. Remove all 4 mounting screws on
silver Box.
5. Lastly take out silver box.
