ALTROZ SERVICE MANUAL

BODY

FITMENT

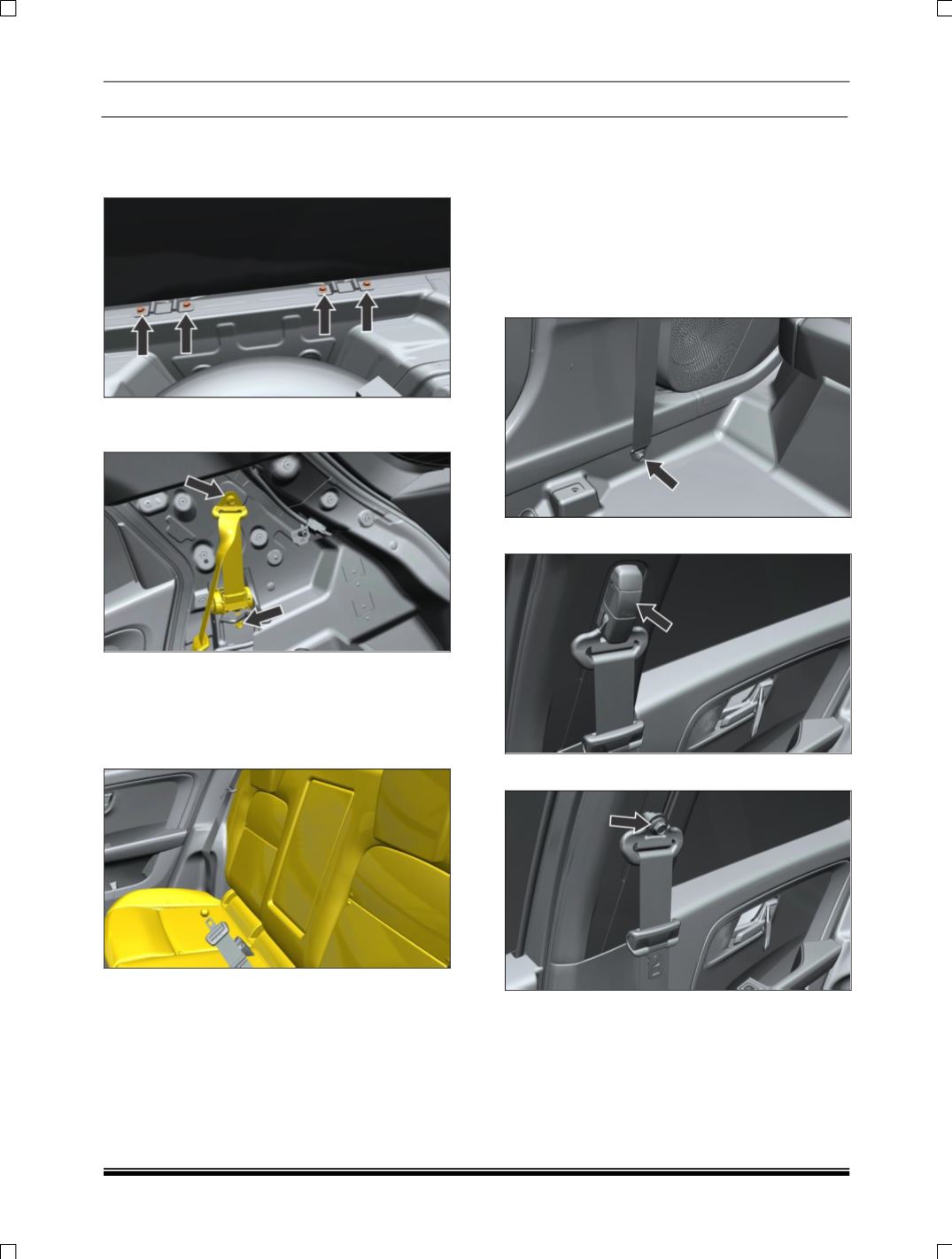

1. Fit rear seat backrest side bracket mounting

fasteners from both side.

2. Mount two screw of seat belt striker from both

side and do lose fitment.

3. Fit C Pillar lower trim. (For procedure refer C

pillar removal process.)

4. Lift the backrest and apply force from center,

such that both the latches are mounted firmely

to striker provided in the body.

5. After latching tight the striker screws.

NOTE

Lift the belts and buckle while cushion folding to

design position

2.25. FRONT SEAT BELT



FOR RETRACTOR PRETENSIONER LOAD

LIMITER (RPLL)

REMOVAL

1. Fold the front seat to have easy access for the

belt removal.

2. Loosen and remove the lower mounting bolt of

seat belt.

3. Pull out show in fig

4. Remove front seat belt anchor mounting bolt.

5. Remove lower “B” pillar trim. (For procedure

refer “B” pillar trim removal procedure in Body

section.)

6. Disconnect the electrical connection of RPLL.
