6. Adjust the parking brake cable slackness as
per the given procedure.
NOTE:
Refer parking brake adjustment procedure
(
Point 14.8
).

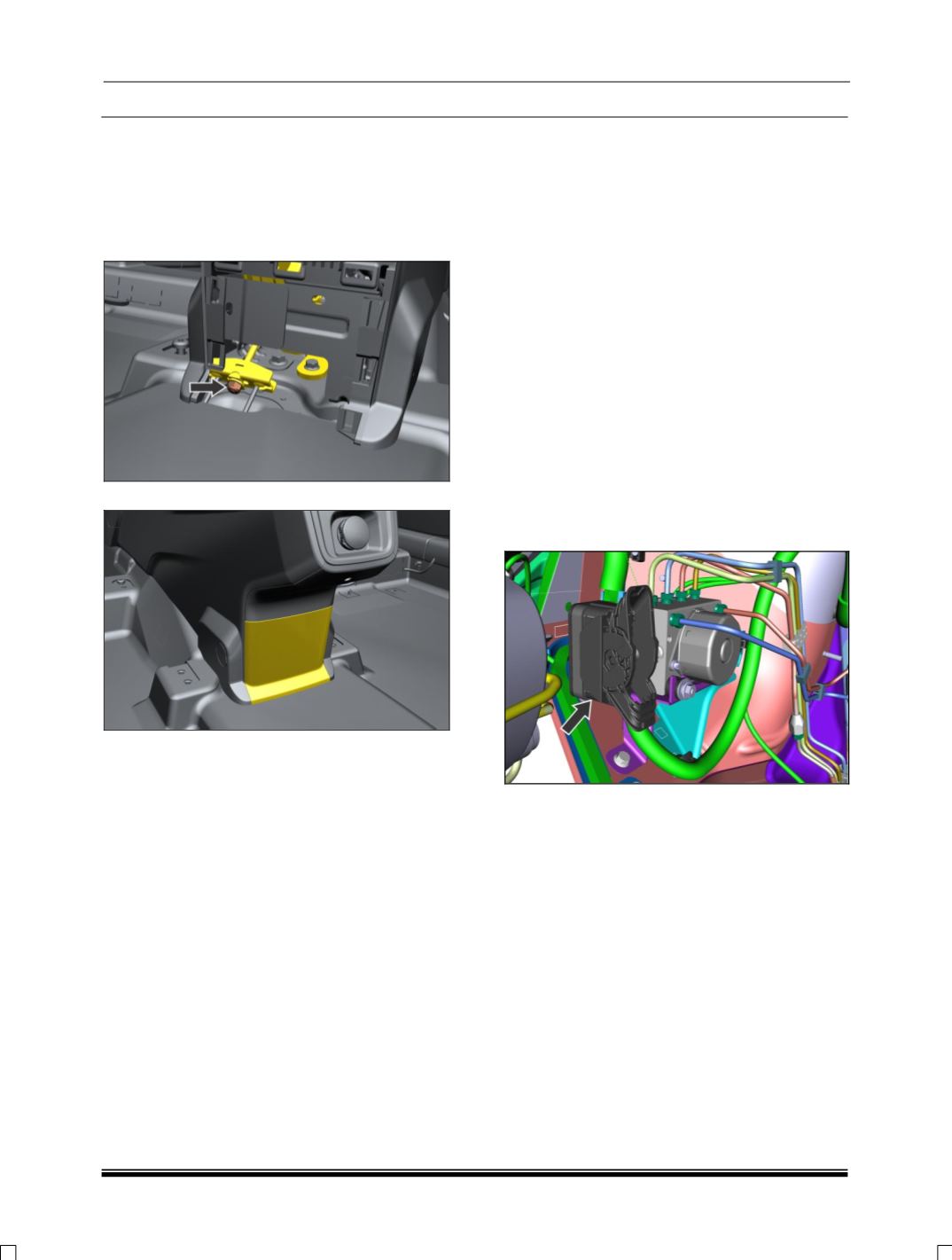

7. Tighten the parking brake slackness
adjustment nut located inside the console.
8. Fix the Console Rear cover.
14.11.
REMOVAL AND REFITMENT OF ABS
ECU / HCU
Following precautions should be carried while
working on ABS.
1) Before undertaking any electric arc welding
work, disconnect the ABS ECU’s connector.
2) During paintwork operations or major repair
work, which are likely to subjected to higher
temperature (above 85° C), The HCU must be
removed.
3) Before removing the ECU, the battery must be
disconnected.
4) Terminals must be fully tightened while
installing battery.
5) Electrical wiring not to be repaired (should be
replaced)
REMOVAL
1) Turn OFF the ignition switch and disconnect
battery.
2) Disconnect ABS ECU wiring harness
connector.
NOTE:
Refer steps (i) and (ii) to disconnect ABS ECU
Connector.
(i) Press the unlock button and remove the lever
from the lock and move towards unlocking
position.
(ii) Lock the lever to its unlock position by
pressing the lever till the Click sound is heard
and remove the connector from ABS ECU.
WARNING:
Never apply a 12V power source to any
terminal of the ECU connector when it’s
disconnected.
3) Identify the brake pipes going into and out of
the Hydraulic Control Unit (HCU) with tags so
that reinstallation of the brake lines becomes
easy.
