757 / 1119
BRAKES
60
16.

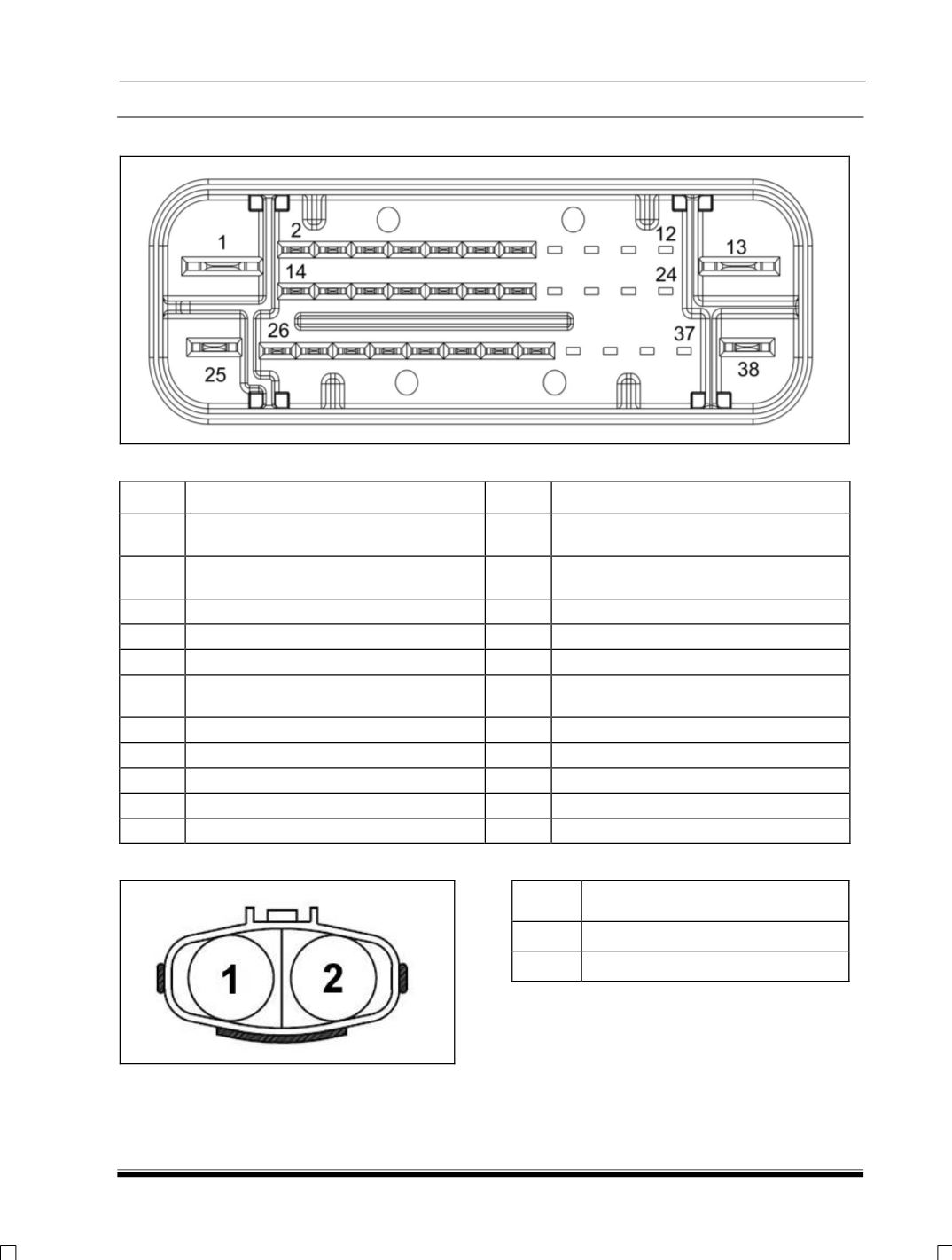

ABS ECU CONNECTOR (K2):
ECU pin details:
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1
Power Supply to ABS/ESP Motor Pump
Relay
17
Wheel Speed Sensor Power Rear Right
2
Vehicle Speed Output (Signal on CAN
Bus)
18
Wheel Speed Sensor Signal Rear Left
3
EBD Warning Lamp
19
Wheel Speed Sensor Power Front Left
4
Wheel Speed Sensor Signal Front Right
25
Power Supply to ABS/ESP Valve Relay
5
ABS Warning Lamp (Signal on CAN Bus)
26
CAN High Signal
7
Vacuum Sensor Switch (Not
Used/Optional)
27
CAN High Signal (Daisy Chain)
8
Wheel Speed Sensor Signal Front Left
28
Ignition Power Supply to ECU
13
Ground to ABS/ESP Motor Pump Relay
29
Wheel Speed Sensor Signal Rear Right
14
CAN Low Signal
30
Brake Light Switch Signal (Hardwired)
15
CAN Low Signal (Daisy Chain)
31
Wheel Speed Sensor Power Rear Left
16
Wheel Speed Sensor Power Front Right
38
Ground to ABS/ESP ECU
WHEEL SPEED SENSOR CONNECTOR:
Pin Details:
PIN NO.
DESCRIPTION
1
Wheel Speed Sensor Signal
2
Wheel Speed Sensor Power
