BRAKES
49

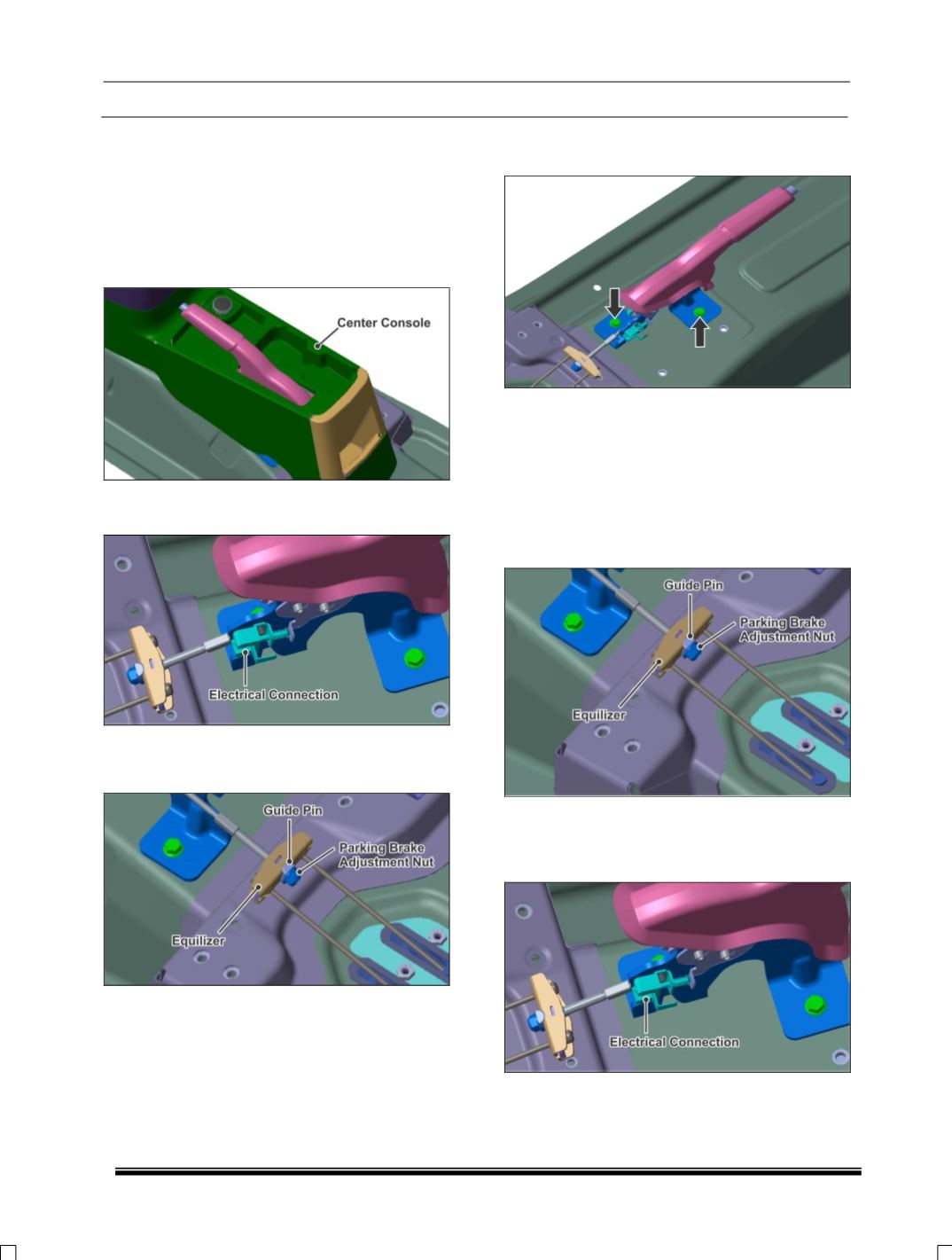

14.6. REMOVAL OF PARKING BRAKE LEVER
(Applicable to Low Version)
1. Position the car in the two-post lift.
2. Place the Parking Brake in Fully released
position.
3. Remove the center console located in the
cabin.
4. Disconnect the electrical connection to parking
brake lever.
5. Remove the parking brake adjustment nut,
guide pin and remove the equalizer from the
parking brake lever.
6. Unscrew 2 Mounting bolts of Parking Brake
lever and take out the Assembly.
7. After removing the Parking Brake Lever, lift the
car up.
INSTALLATION OF PARKING BRAKE LEVER
1. Proceed in the reverse order of removal.
2. Tighten the mounting bolts of the parking brake
lever to the torque specified.
3. Adjust the parking brake cable slackness as
per the procedure given below.
4. Reconnect the electrical connections to the
parking brake switch assembly and confirm
that the parking brake lamp becomes “ON”
when parking brake lever is at first notch.
