SUSPENSION
38

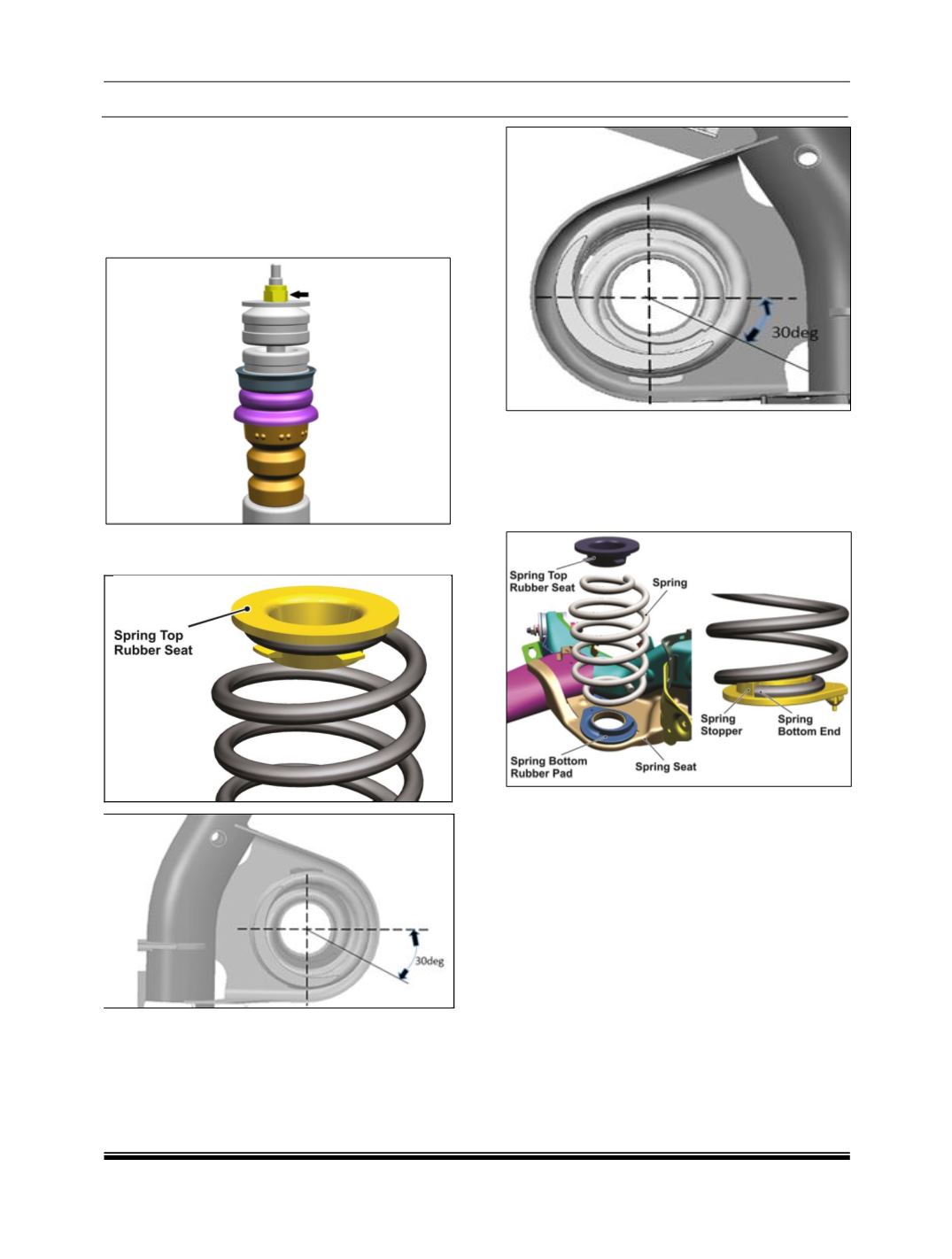

9.12 ON VEHICLE REAR SHOCK ABSORBER
AND COIL SPRING ASSEMBLY:
1.
Refit the shock absorber top mounting
fasteners with new nyloc nut in the luggage
compartment and tighten to 2.5 to 3 kg-m
Torque.
2.
Fit and rotate the top rubber with the coil spring.
LH Spring Orientation
RH Spring Orientation
3.
Position the spring bottom rubber pad to be
fixed to twist beam in two holes. Spring to be
oriented such that end rest and against the
stopper of bottom rubber pad.
4.
Raise the torsion beam using hydraulic jack so
that the coil spring gets compressed and shock
absorber sits exactly over torsion beam
properly.
5.
Refit the Rear Shock Absorber Bottom Fastener
& apply torque. (As per torque table).
6.
Refit the rear wheels.
7.
Remove the Car from 2 Post Lift.
