DRIVESHAFT - DIESEL
5

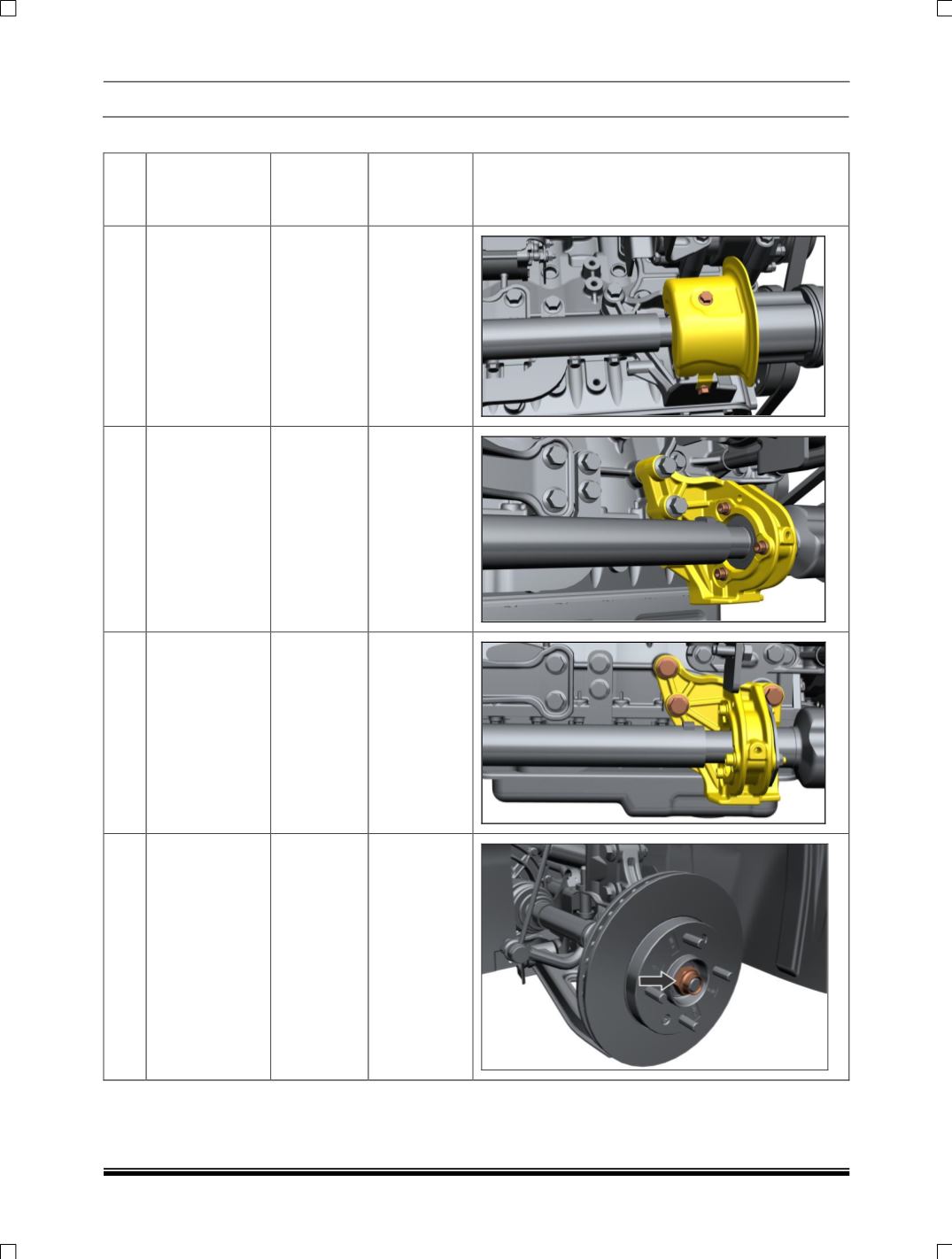

6. TIGHTENING TORQUES
SR.
NO
DESCRIPTION FASTNER
TIGHTNING
TORQUE
(Kg-M)
LOCATION
1
Heat Shield
mounting
bolts
Hex FL
Screw
M6X12
2
Intermediate
shaft
mounting on
Bracket
Cap Screw
M6x45
1.5 – 1.7
3
Intermediate
shaft
Bracket on
Engine
Hex FL
Bolt
M10x45
3.2 – 3.9
4
Drive Shaft
Lock Nut
Lock Nut
24.5 ± 1.5
