DRIVESHAFT_PETROL
10

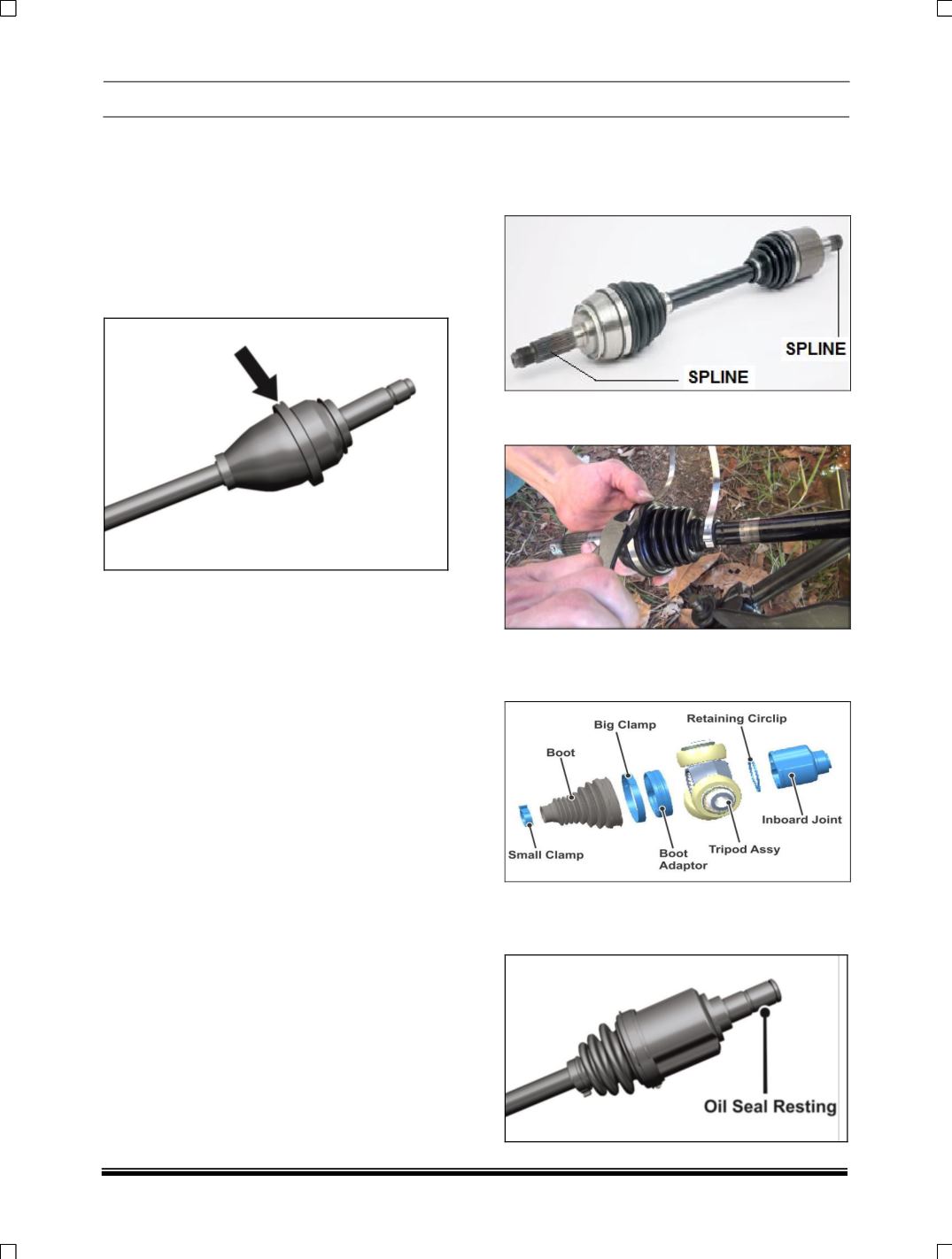

7. Slide the new large seal retaining clamp over
the housing in the free condition of the boot
and housing Insert the swage tool part no:
2779 5890 2001 over the clamp.
8. Align the seal bigger diameter on the housing
and position the big seal retaining clamp in its
place and swage the large seal-retaining
clamp using spanner Please tighten
alternatively between two bolts (i.e. don’t
tighten one bolt alone completely at a time).
12. PRECAUTION TO AVOID THE DAMAGE TO
DRIVE SHAFT
1. Avoid damaging the surface of the threads
and splines during installation.
2. Clamps should be in position and tight. If
clamps are loose, don’t install into vehicle.
3. To prevent damage to the internal
components of the inboard joint, take all
precautions to avoid over extending the joints.
4. Protect this surface from nicks and scratches.
Damage to this surface may reduce the
performance of the mating seal.
