TRANSAXLE - TA5260
55

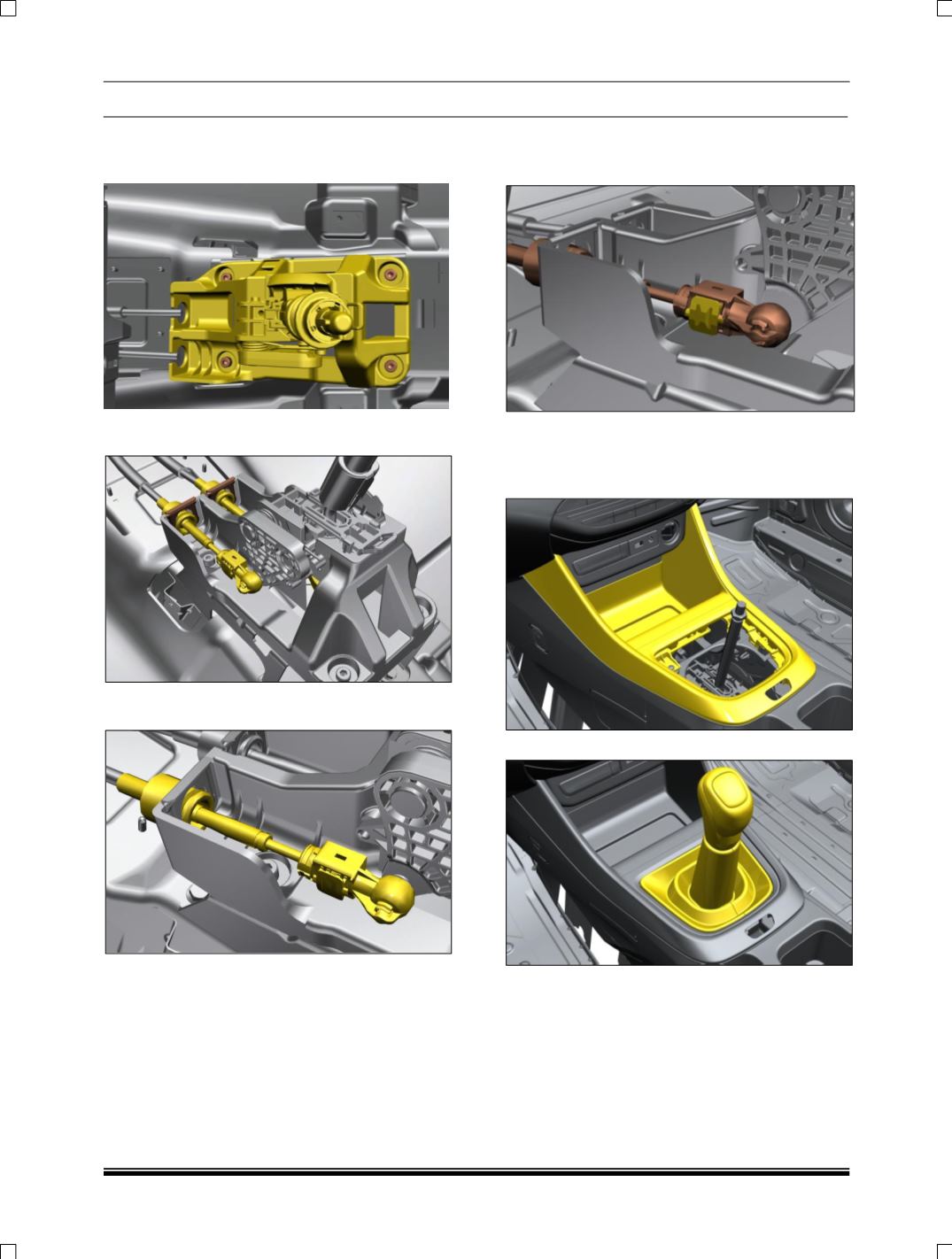

4. Position and tighten the assembly gear shift
housing on the cab floor or sheet metal
bracket.
5. Fit the selector and shift cable lock on the
assembly gear shift housing.
6. Fix the selector cable and shift cable on the
assembly gear shifter housing.
7. Fit the selector cable and shift cable end on
select lever ball. (Ensure yellow clip in partially
locked condition)
8. Press the yellow clip on the selector cable and
shift cable.
9. Place the center console over the assembly
and assemble it.
10. Then fix bellow and gearshift lever knob
Do’s
1. Do GSL lever neutral setting after every TA
related rework.
2. Before fitment do ensure smooth movement of
shifter side cable end.
3. Do ensure proper length of cable as per
specification.
Don’ts
1. Don’t bend cables while handling.
