TRANSAXLE - TA5260
51

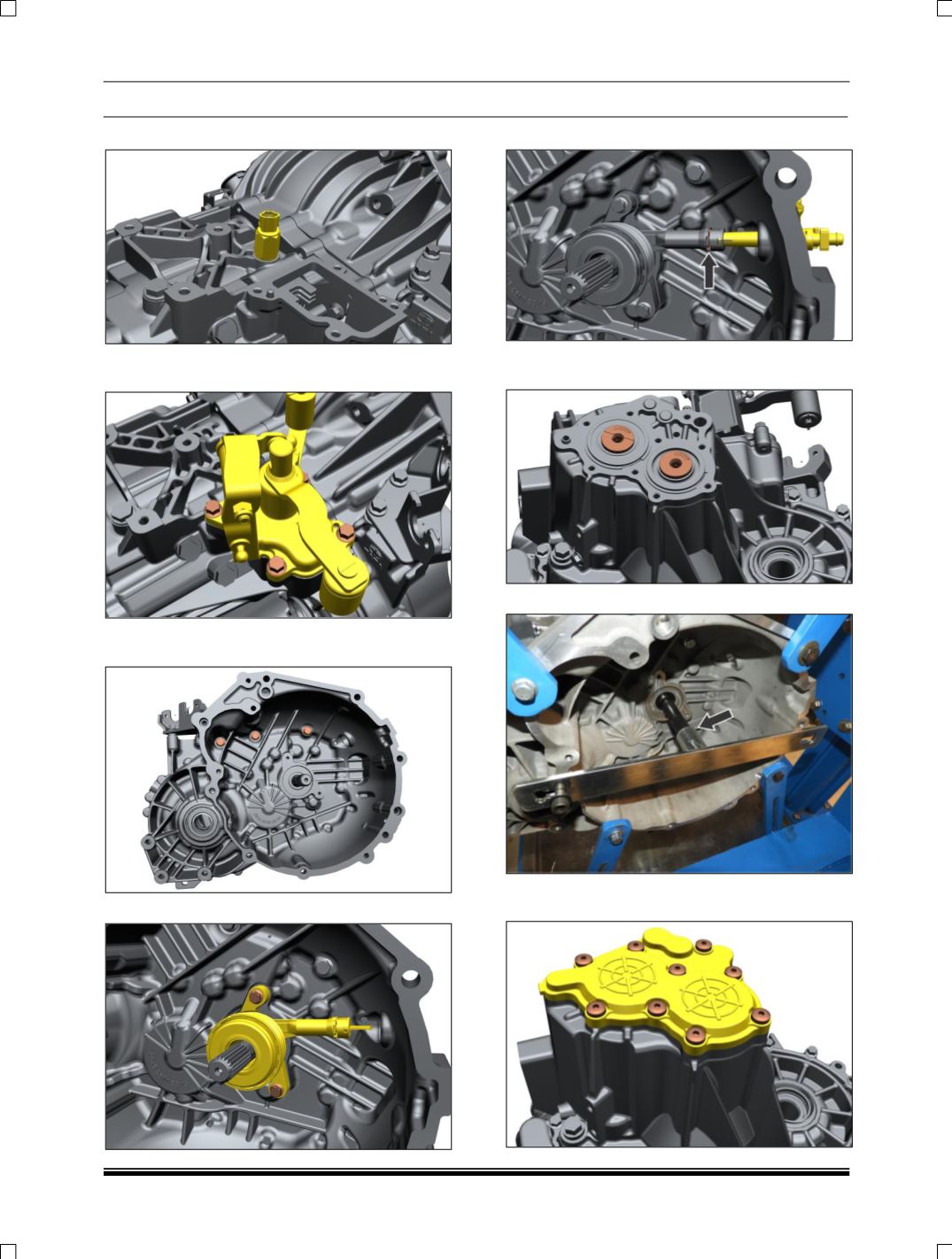

19. Fix Reverse Light Switch.
20. Assemble Hex FL bolt M8x25 & Fix Top Cover
Assy. with cable Mounting. Bracket.
21. Tighten the 3 inside flanged mounting bolts to
specified torque.
22. Fix CSC & tighten two Hex Screw.
23. Fix Hydraulic Adaptor by fixing clip.
24. Tighten the clamping screw on input and Lay
shaft using
locking plate 5412 5890 2608.
Locking Plate 5412 5890 2608
25. Tighten Rear Cover mountings & Fix rear
cover.
