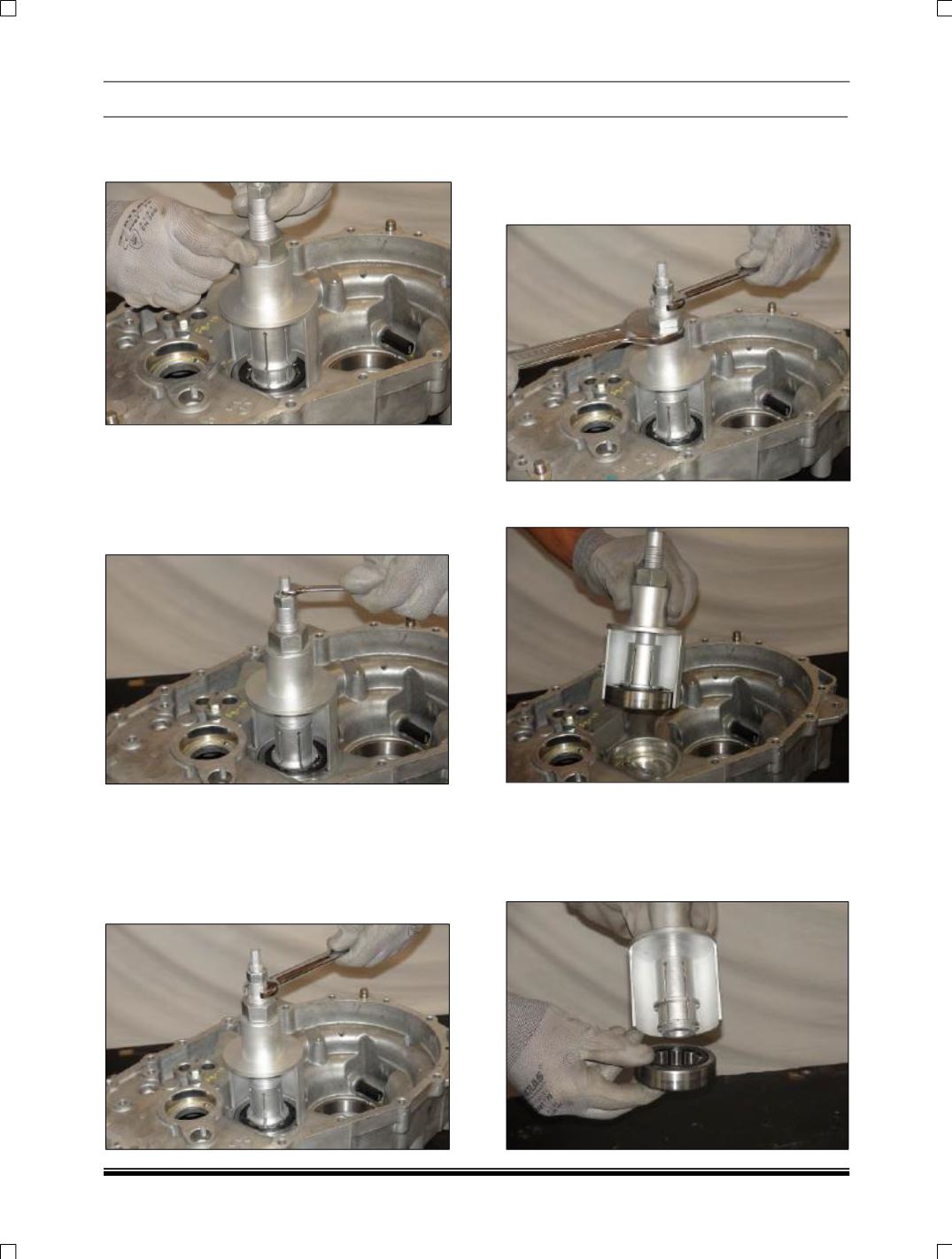

Rotate the pulling nut 30 mm anticlockwise and
allow anchoring body shaft of puller to get
inserted inside the bearing.
Once the anchoring body is inserted fully, hold
the locking stud on the top using open end
spanner 8 mm and turn the locking nut on the
top slowly using open end spanner 17 mm, few
turns till it gets resistance to rotate.
It allows flaring the anchoring body and gets
lock with bearing rollers.
CAUTION:
Please stop once the shaft is locked, excess
rotation of locking nut may cause damage to puller
of bearing.
Once the anchoring body is locked with bearing
hold the anchoring body shaft at the top using
the open end spanner 18 mm.
Use the open-end spanner 30 mm and turn the
pulling nut clockwise, do not allow anchoring
shaft to turn along with pulling nut.
It will start to pull the bearing out from the
casing.
Turn the pulling nut (30 mm) till the bearing
comes out completely from the casing.
Once the bearing comes out, unlock the
anchoring shaft by turning the locking nut
anticlockwise on the top and slowly tap on the
locking stud down to unlock the bearing from
anchoring body and to remove bearing from the
tool.
