TRANSAXLE - TA5260

37

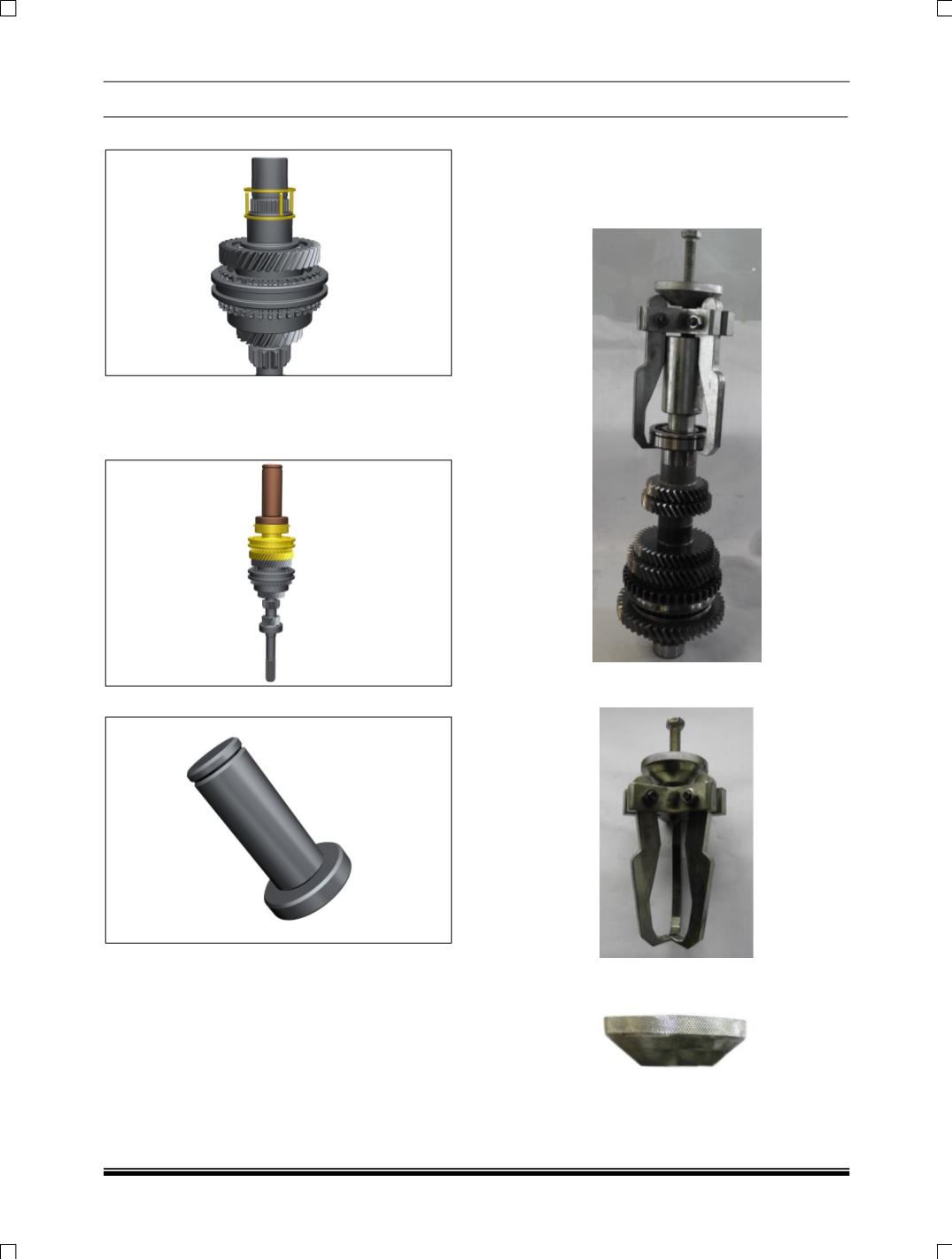

7. Place Needle Cage.

8. Press Engaging gear, Synchronizer, Retaining

carrier plate, deep groove ball bearing

sequentially with the help of Drift

5403 5890

2609

& support plate

5412 5890 2606.

DRIFT 2870 5890 3256

C. REMOVAL OF DEEP GROOVE BALL

BEARING FROM LAY SHAFT (USE FOR

BEARING REPLACEMENT ONLY)

1. Remove deep groove ball bearing (rear) using

Puller & spacer.

Puller for Removal of lay shaft Deep Groove

ball bearing 5438 5890 2603

Conical Spacer for Removal of lay shaft Deep

Groove ball bearing 5438 5890 2603
