TRANSAXLE - TA65 Star
13

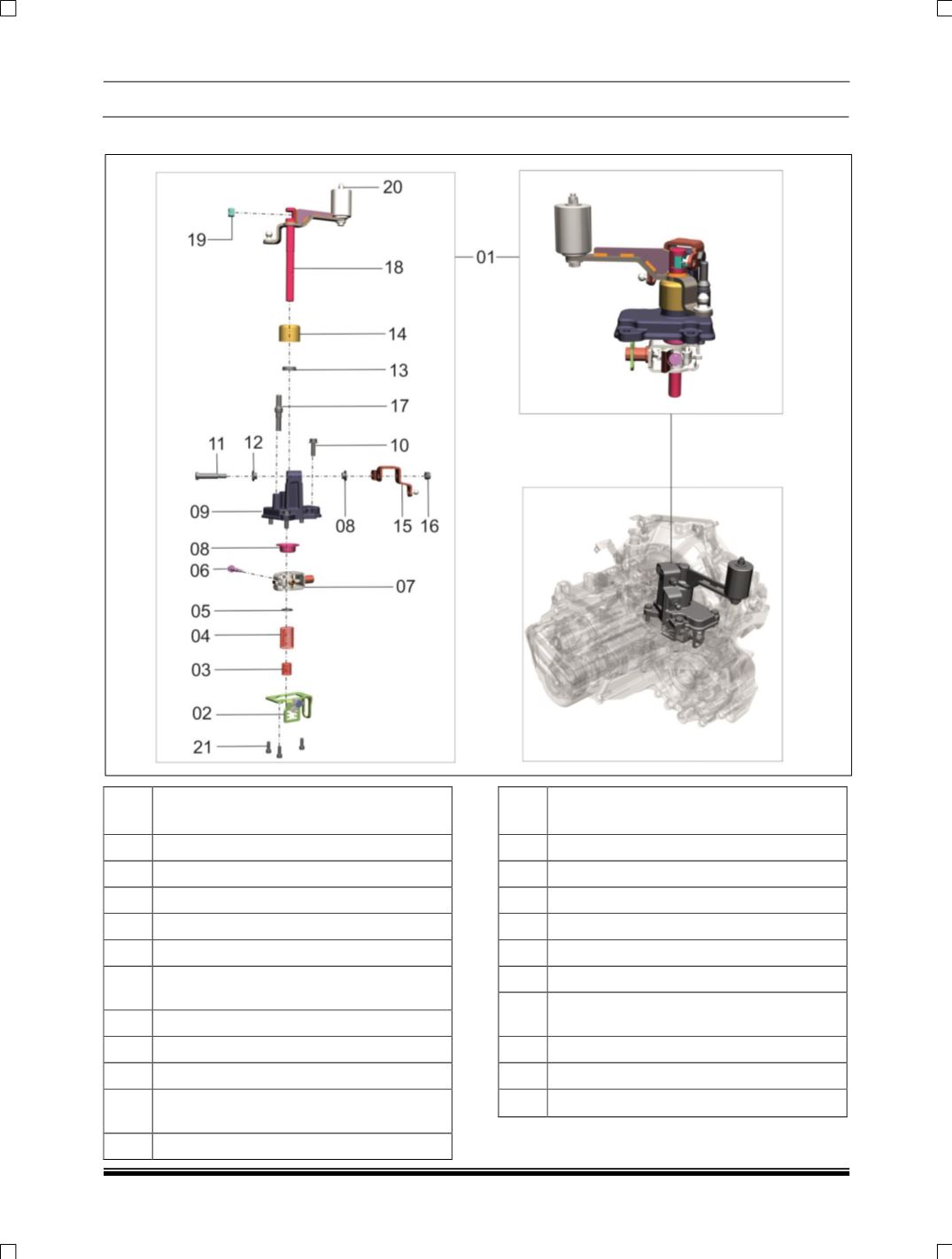

B. TOP COVER ASSEMBLY
SR.
NO.
DESCRIPTION
1
TOP COVER ASSEMBLY
2
BRACKET ASSY
3
SPRING (1ST / 2ND SELECTION)
4
SPRING (5TH / REV SELECTION)
5
SPACER SELECTOR SHIFTER SHAFT
6
CROSS PIN SHIFTER/SELECT
FINGER
7
INTERLOCK & SHIFT FINGER ASSY
8
CUP
9
TOP COVER
10
HEX FL BOLT M8X25 TS17070 8.8
SS8451S2-Y
11 PIN (SELECTION)
SR.
NO.
DESCRIPTION
12 COLLAR BUSH
13 OIL SEAL (SEL SHIFT SHAFT)
14 DUST CAP
15 BELL CRANK LEVER
16 NYLOC NUT M8 IS7002-8-SS8451S2-Y
17 BREATHER
18
SHAFT SHIFTER AND SELECTOR
ASSEMBLY
19 BUSH
20 SPLIT PIN 2X25 IS549 SS8451-8C
21 CAP SCREW M6X16
