TRANSAXLE - TA65 Star
9

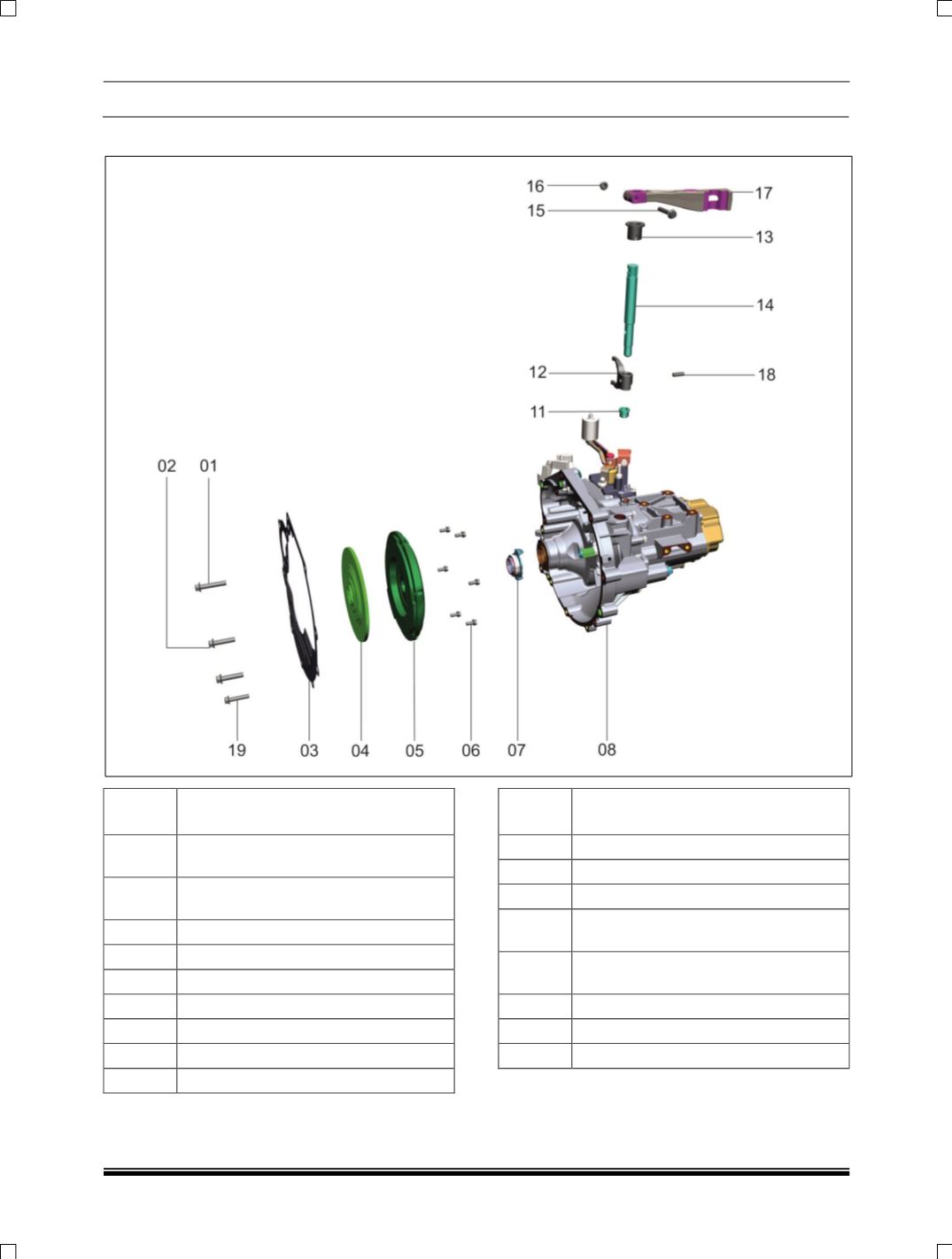

7. CONSTRUCTIONAL DETAILS
SR.
No.
COMPONENT DESCRIPTION
1
HEX FL BOLT M10X55 TS17130-8.8
SS8451-8C
2
HEX FL BOLT M10X45 TS17130-8.8-
SS8451S2-Y
3
BACK COVER WITH DAMPING PAD
4
CLUTCH DISC ASSEMBLY
5
CLUTCH COVER ASSY
6
HEX. FLANGE SCREW
7
SLEEVE
8
TRANSAXLE UNIT
11
BUSH, LOWER
SR.
No.
COMPONENT DESCRIPTION
12
CLUTCH RELEASE YOKE
13
BUSH, UPPER
14
CLUTCH RELEASE SHAFT
15
HEX FL BOLT M8X45 TS17130-8.8-
SS8451S2-Y
16
HEX NUT AM8 TS17430-8-SS8451-
8C
17
CLUTCH RELEASE LEVER
18
SPLIT PIN
19
HEX FL BOLT M8X40
