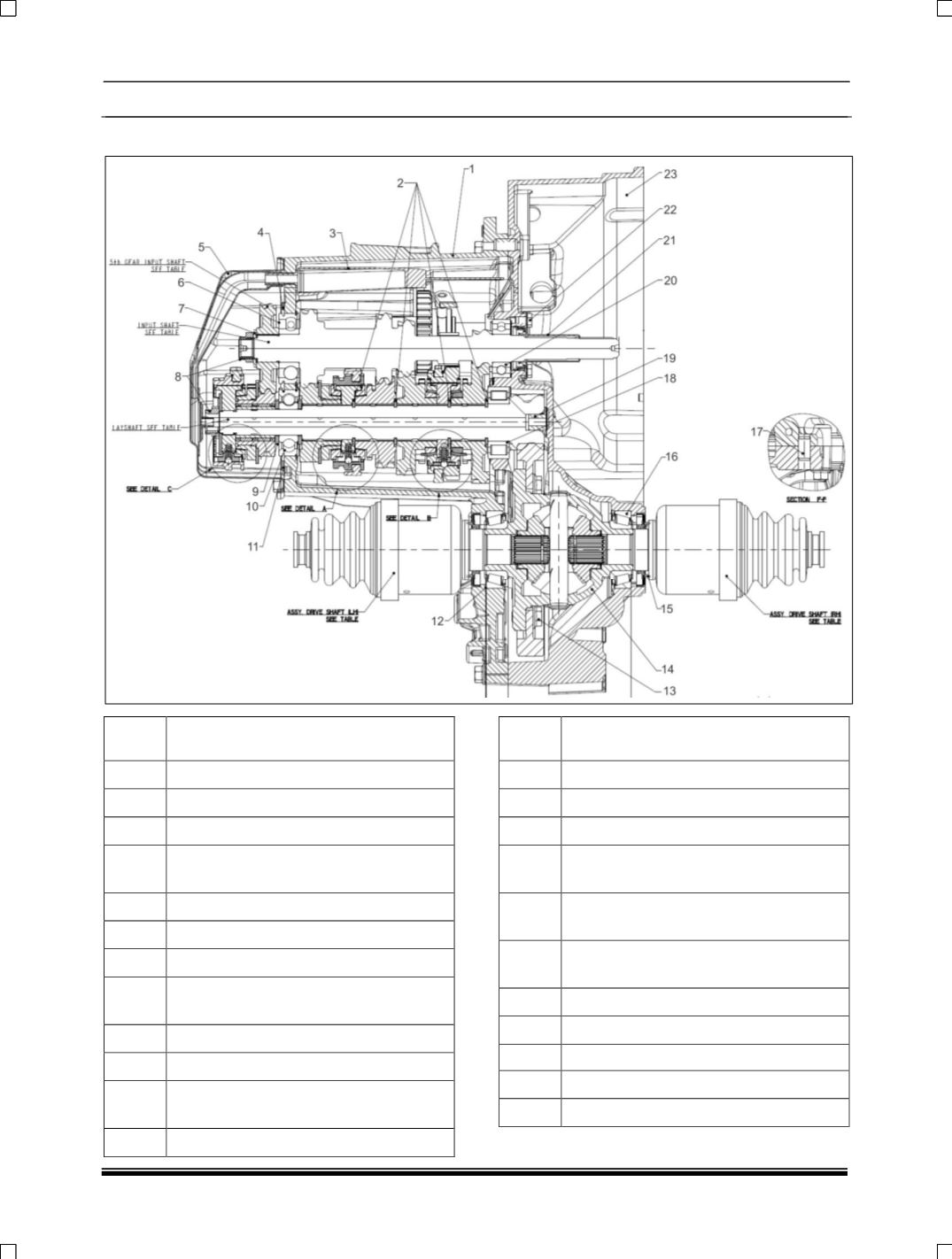

8. CUT SECTION OF TRANSAXLE TA 65 STAR:
SR.
NO.
DESCRIPTION
1
HOUSING REAR HALF
2
CIRCLIP (LAYSHAFT)
3
OIL CHANNEL
4
LOCK PLATE (INPUT SHAFT
BEARING)
5
ASSY REAR COVER
6
BALL BRG.WITH SNAP RING
7
CONICAL WASHER
8
LOCK NUT (LAYSHAFT/INPUT
SHAFT)
9
SPACER
10
D.G.BALL BRG.(L/S REAR END)
11
LOCK PLATE (LAY SHAFT
BEARING)
12
SHIM (0.1) DIFF.BRG.
SR.
NO.
DESCRIPTION
13
COLLARED SCREW
14
SUB ASSY DIFFERENTIAL
15
OIL SEAL (DRIVE SHAFT)
16
TAPER ROLLER BEARING
(INNER)
17
CYL.PIN (HSG.FRT.HALF TO
HSG.REAR HALF)
18
CYLD.ROLLER BRG.(L/S
FRT.END)
19
BUSH (LAYSHAFT)
20
D.G.BALL BRG.(I/S FRONT END)
21
COVER ASSY;INPUT SHAFT
22
HEX FLANGE SCREW
23
HOUSING FRONT HALF
