TRANSAXLE - TA65 Star
12
10.

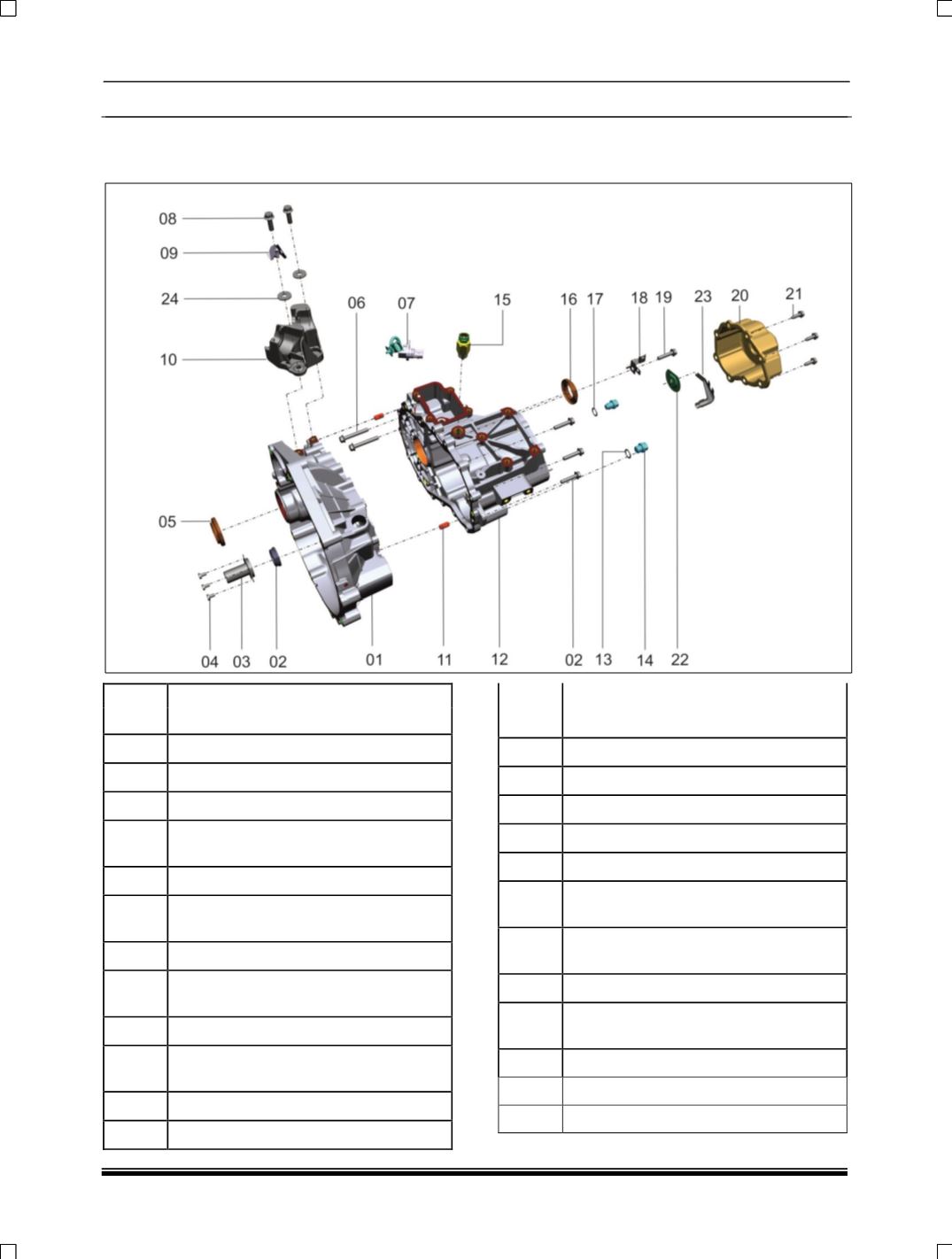

EXPLODED VIEWS OF TRANSAXLE
:
A. TRANSAXLE HOUSING
SR.
NO.
DESCRIPTION
1
HOUSING FRONT-HALF
2
OIL SEAL (INPUT SHAFT)
3
INPUT SHAFT COVER
4
HEX SCREW M6X10 TS17070-8.8-
SS8451S2-Y
5
OIL SEAL (DRIVE SHAFT)
6
H/FL BOLT M8X55 TS17070-10.9
SS8451S2-YH
7
NEUTRAL POSITION SENSOR
8
HEX FL BOLT M8X25 TS17070 8.8
SS8451S2-Y
9
BRACKET WIRING HARNESS MTG
10
CABLE ANCHOR BRACKET WITH
RUBBER DAMPER
11
CYLINDRICAL PIN
12
HOUSING REAR-HALF
SR.
NO.
DESCRIPTION
13
SEALING WASHER
14
FILLER PLUG
15
REVER LIGHT SWICH
16
OIL SEAL (DRIVE SHAFT)
17
MAGNETIC DRAIN PLUG
18
BRACKET ASSY,BATTERY +VE
CABLE MTG
19
HEX FL BOLT M8X38 TS17070-8.8-
SS8451S2-Y
20
REAR COVER
21
HEX FL BOLT M8X25 TS17130-8.8-
SS8451-8C
22
CUP (OIL CATCHER)
23
OIL CHANNEL
24
WASHER
