CLUTCH_PETROL
19
NOTE:
Do not mix clutch mounting bolts with other
fasteners. Do not use longer or shorter screws.
Longer screws may not tighten the clutch at all.
Shorter screws will not provide enough threads to
achieve desired tightening.
While tightening the clutch mounting screws
check aligning mandrel for continuous free
sliding to ensure concentric installation of clutch
disc which will avoid trouble during the
installation of the transaxle.

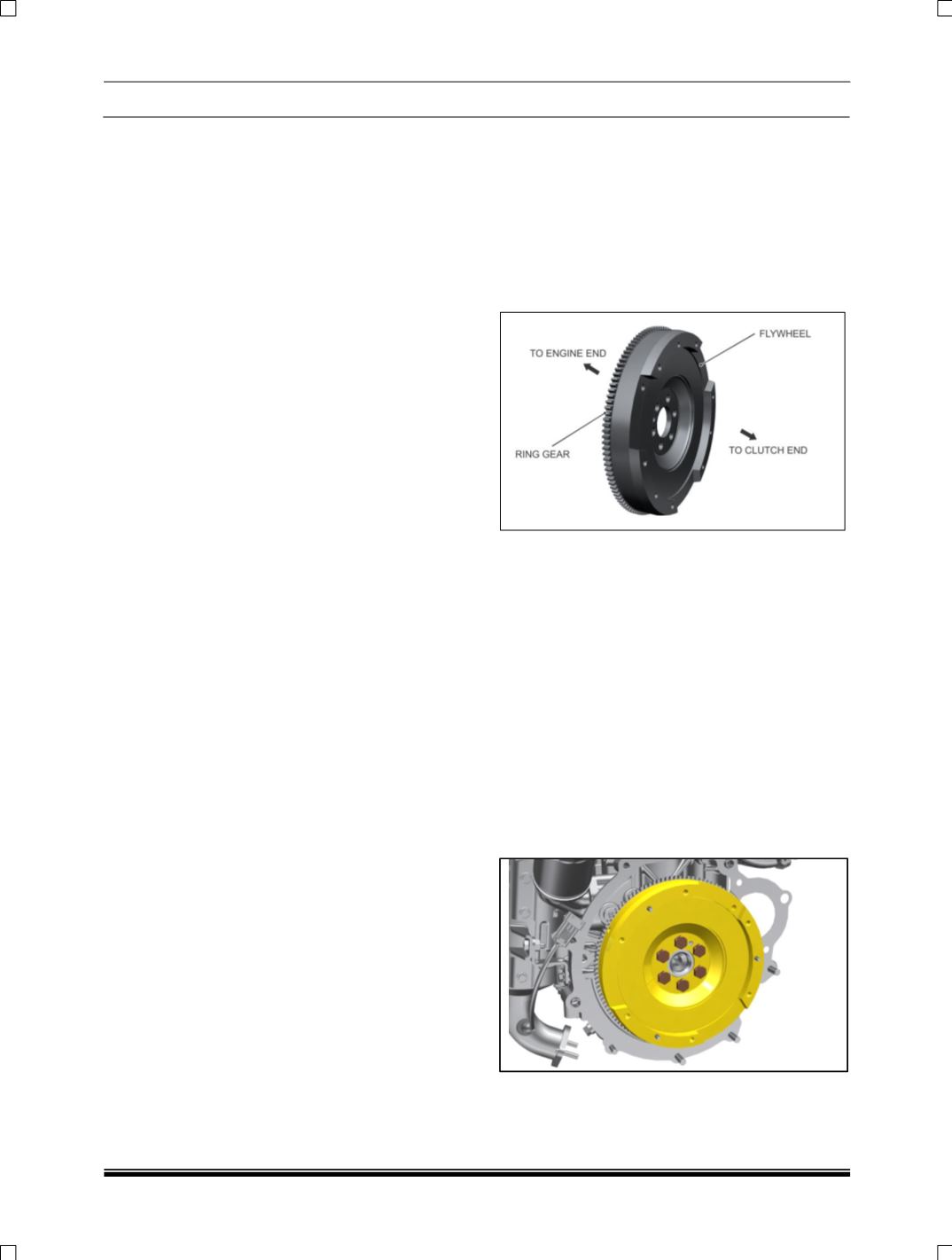

D. FLYWHEEL
The single mass flywheel
(SMF)
is a flywheel having
single inertia mass. It is fitted on the engine
crankshaft and provides mounting for the clutch
assembly, comprising of clutch cover assembly and
the driven disc.
The function of a conventional flywheel is to
dampen the speed fluctuations caused by impulses
during the engine cycle.
FLYWHEEL REMOVAL
1. Disconnect battery connection.
2. Remove splash guard from the vehicle.
3. Remove the starter motor (For procedure refer
Electrical section.)
4. Lower the gearbox from the vehicle. (For
procedure refer gearbox removal in Gearbox
section.)
5. Remove the clutch disc with clutch cover
assembly. (For procedure refer clutch cover
assembly removal procedure in this section.)
6. Loosen and remove mounting bolts and
separate the flywheel assembly from the
engine.
FITMENT
For fitment, follow reverse procedure of removal.
