421 / 1119
CLUTCH_PETROL
14

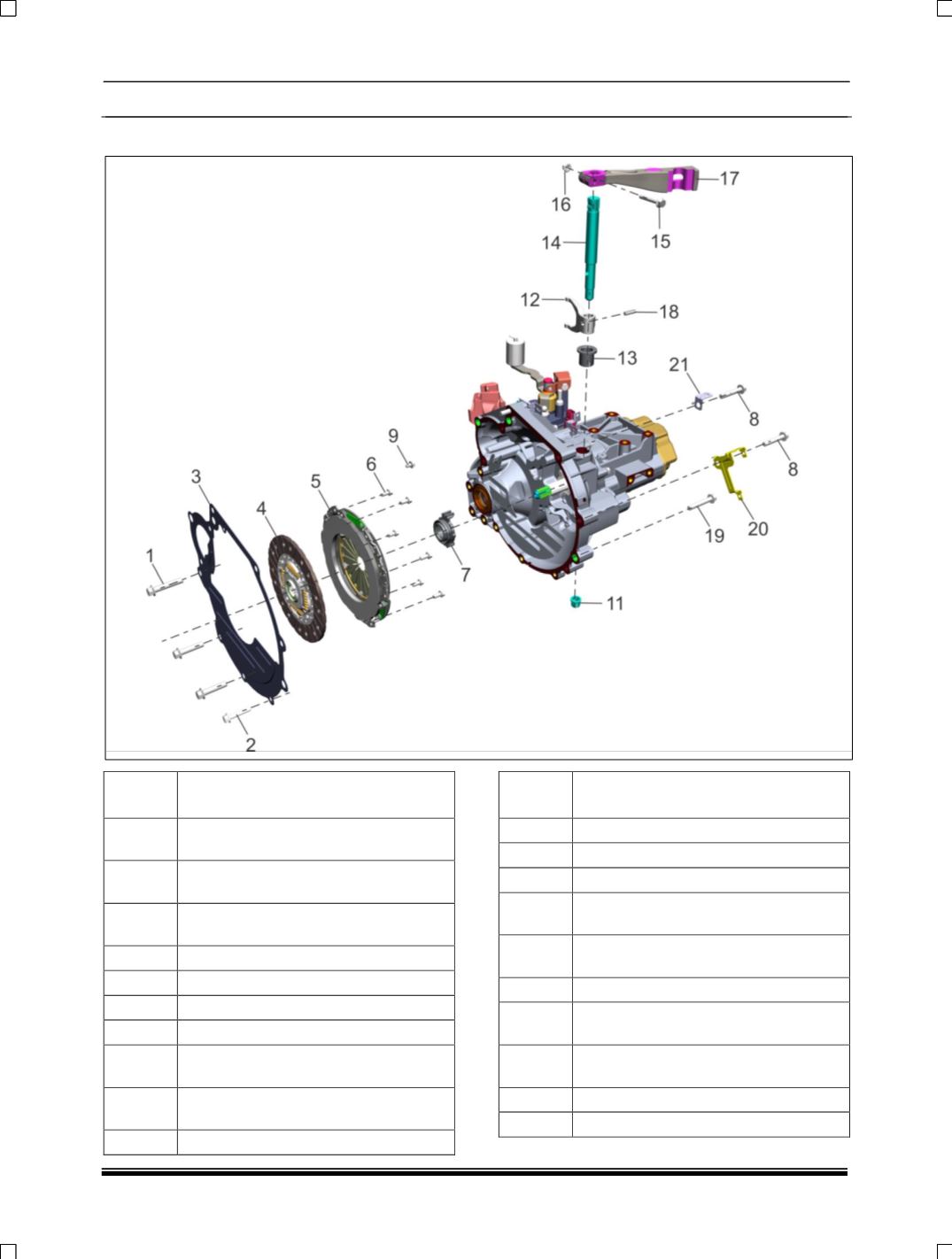

7. CONSTRUCTIONAL DETAILS
SR.
No.
COMPONENT DESCRIPTION
1
HEX FL BOLT M10X55 TS17130-8.8
SS8451-8C
2
HEX FL BOLT M8X40 TS17130-8.8-
SS8451S2-Y
3
BACK COVER WITH WELDED
STIFFENER PLATE
4
CLUTCH DISC ASSEMBLY
5
CLUTCH COVER ASSY
6
HEX. FLANGE SCREW
7
CLUTCH RELEASING BEARING
8
HEX FL BOLT M10X60 TS17130-8.8-
SS8451S2-Y
9
HEX FL SCR M6X10 TS17070-8.8-
SS8451S2-Y
11
BUSH LOWER
SR.
No.
COMPONENT DESCRIPTION
12
CLUTCH RELEASE YOKE
13
BUSH UPPER
14
CLUTCH RELEASE SHAFT
15
H/FL BOLT M8X45 TS17130-8.8-
SS8451S2-Y
16
HEX FL NUT AM8 TS17430-8-
SS8451-8C
17
CLUTCH RELEASE LEVER
18
GROOVED PIN 8X26 IS12952
SS8451S2-Y
19
HEX FL BOLT M10X60 TS17130-8.8-
SS8451S2-Y
20
LAMBADA SENSOR PARKING BKT
21
BRACKET
