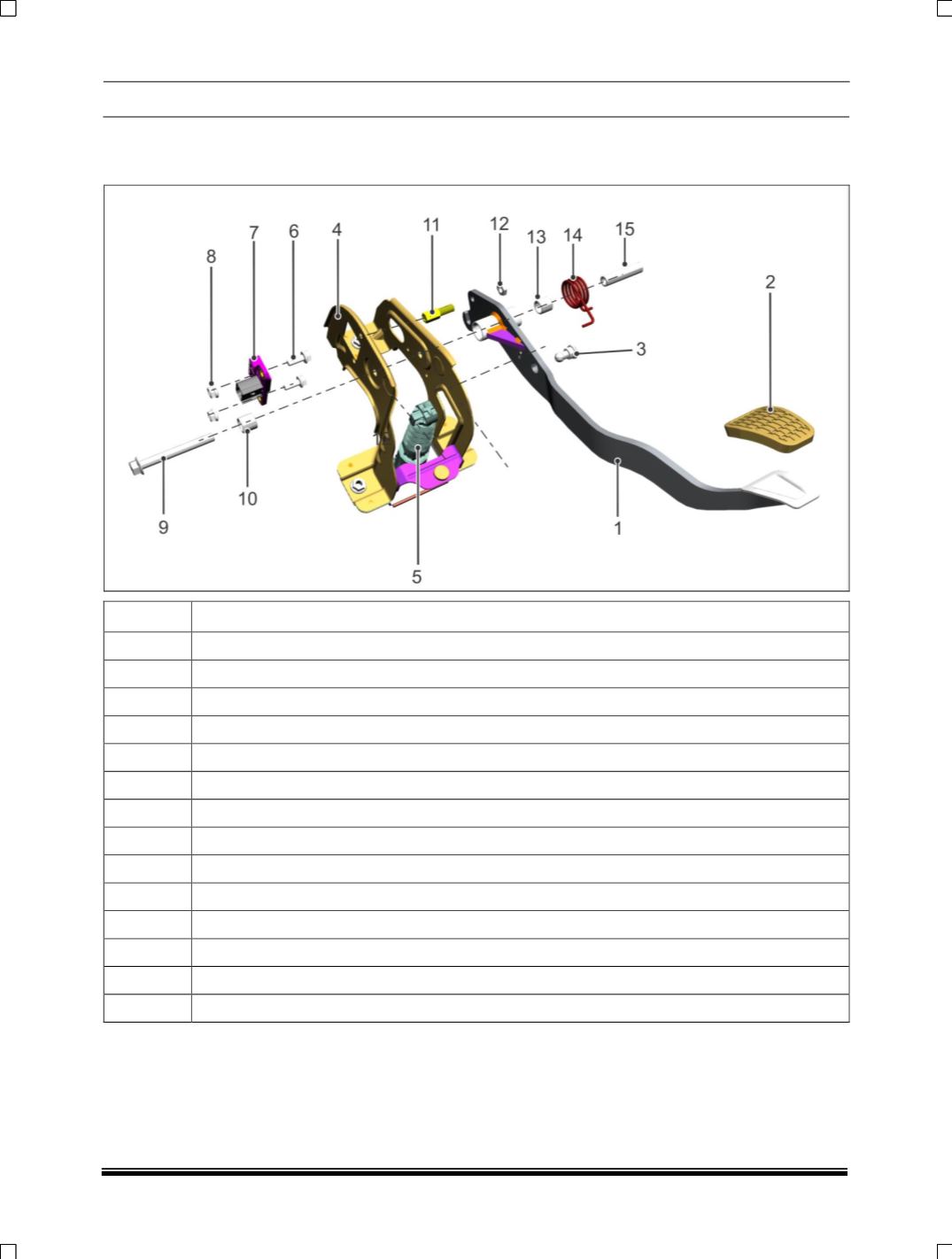

1.7. EXPLODE VIEWS
A. CLUTCH PEDAL ASSEMBLY
ITEM
DESCRIPTION
1
CLUTCH PEDAL ASSEMBLY WITH LEVER
2
CLUTCH PEDAL COVER
3
CLEVIS PIN
4
BRACKET FOR HYD. CLUTCH PEDAL
5
CLUTCH MASTER CYLINDER
6
HEX FL SCREW M6X16
7
CLUTCH SENSOR
8
HEX FL NUT AM6
9
HEX FL BOLT M8X70
10 & 13 SINTERED BUSH
11
CONTACTLESS CLUTCH SENSOR
12
HEX THIN NUT M8
14
RETURN SPRING - CLUTCH PEDAL
15
SLEEVE
