CLUTCH_DIESEL
18

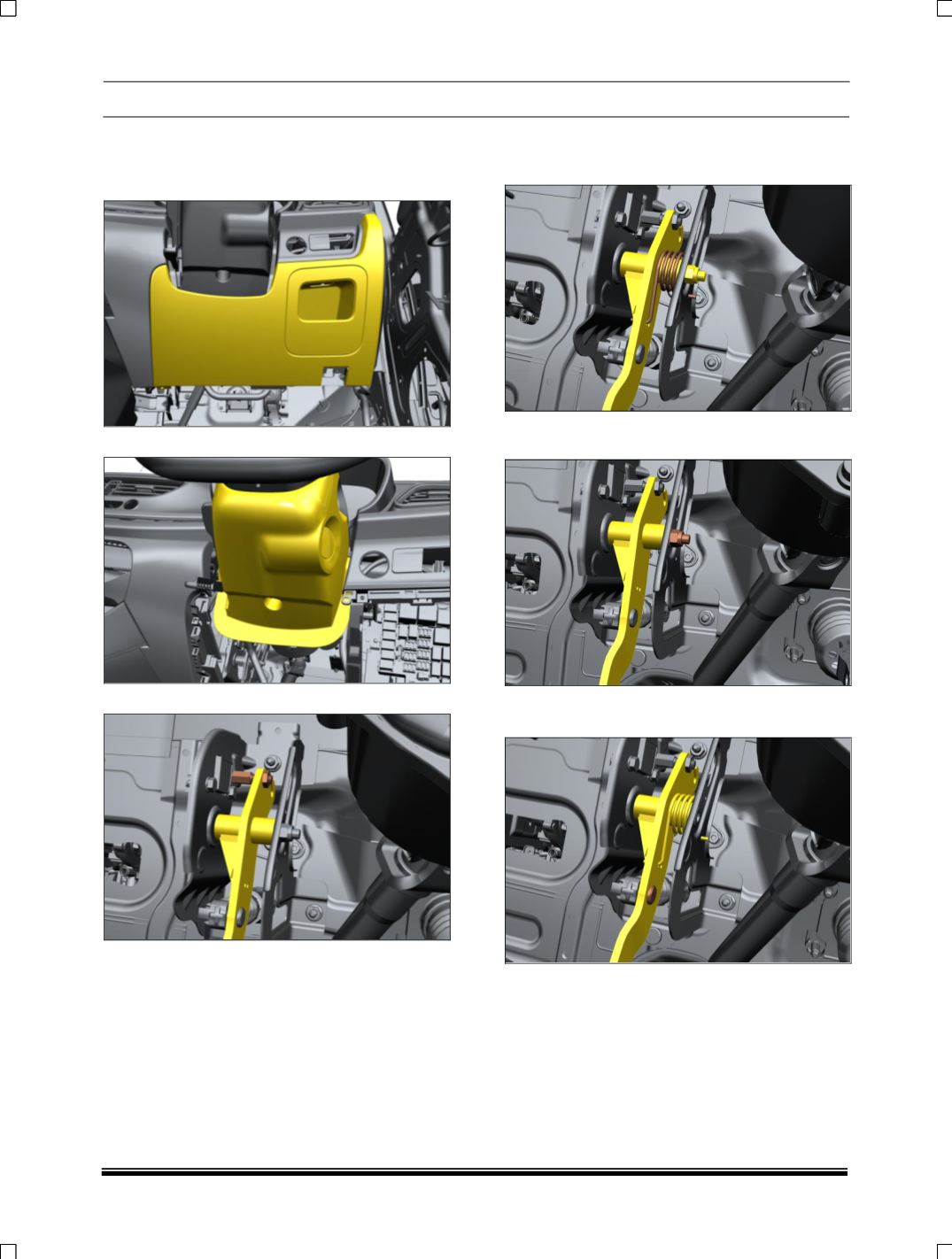

B. CLUTCH PEDAL REMOVAL
1. Disconnect battery connection.
2. Pry out the lower cover of steering column.
3. Pry out the nacelle lower of steering column.
4. Remove contactless speed sensor.
5. Remove the clutch pedal return spring which
is mounted on clutch return spring mounting
bracket.
6. Remove Mountings of clutch pedal on pedal
mounting bracket.
7. Free the clutch pedal from the clutch master
cylinder by removing the clevis pin.
