1.2L REVOTRON ENGINE
111

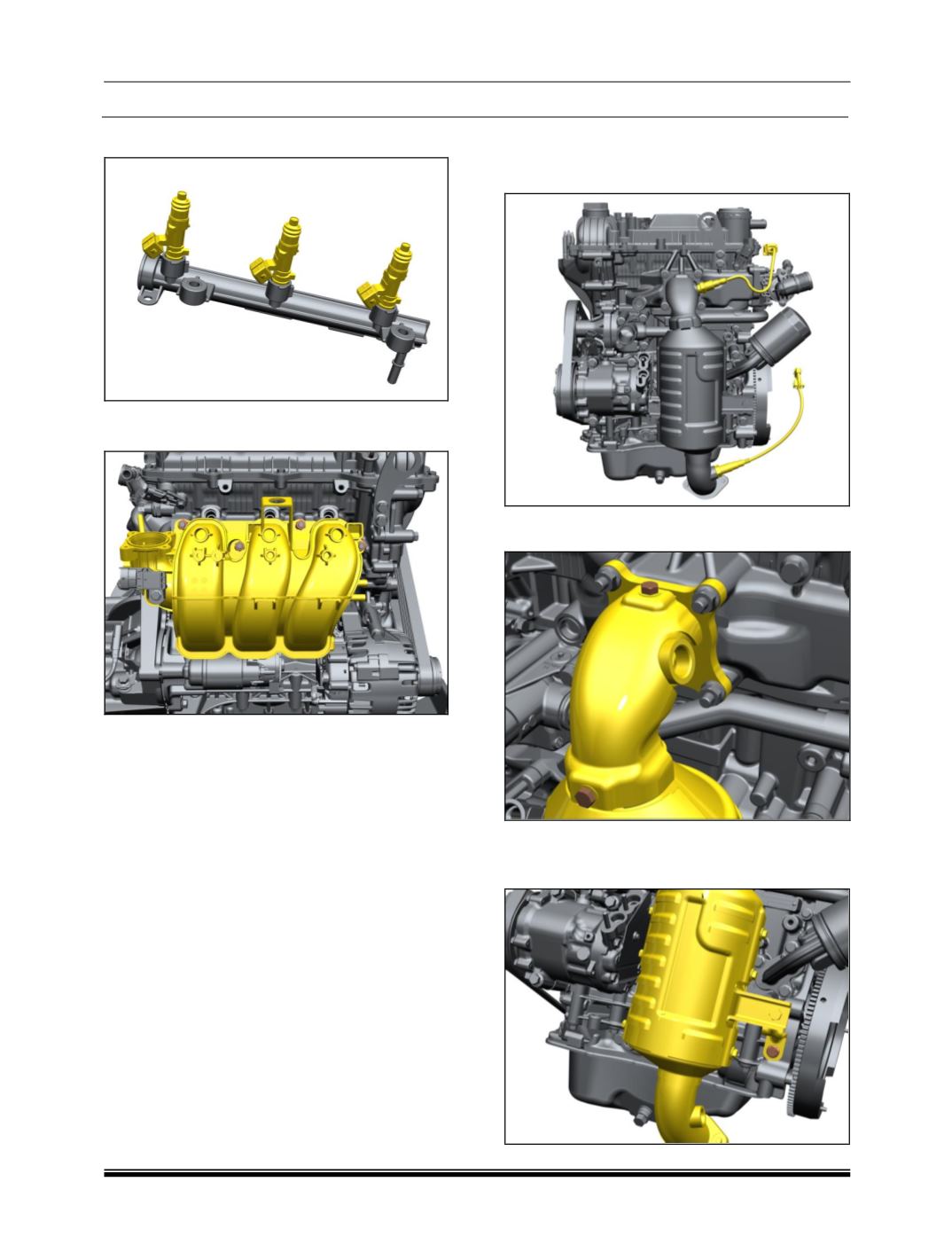

8. Remove the Injectors.
9. Removing 5 no of fasteners and Remove the
Intake Manifold.(4 on head and 1 on block)
II.
Removal of Exhaust Manifold
1. Remove the Lambda Sensor Upper and
Lower from CCC.
2. Remove the Heat Shield by removing two
bolts.
3. Remove the Right side Support Bracket for
the Closed Coupled Catalytic Convertor
(CCC) near oil filter.
