HVAC
40

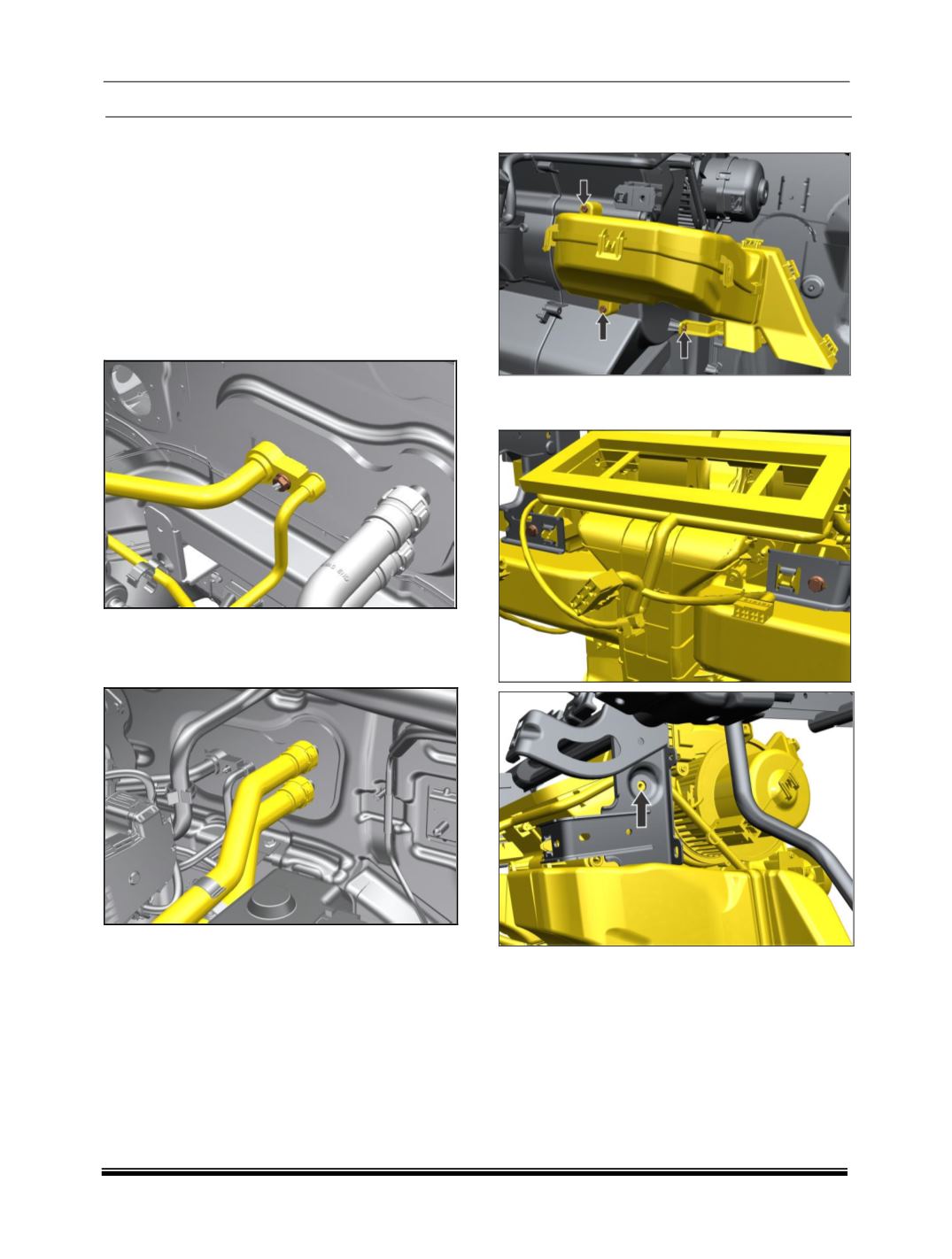

E. FRONT HVAC UNIT REMOVAL AND ASSEM-
BLY
1. Recover the refrigerant using standard recovering
equipment.
2. Remove dashboard skin.
(For procedure refer
dashboard removal procedure in Body section.)
3. Disconnect all electrical connections from HVAC
Unit.
4. Loosen and remove bolts and disconnect the inlet
and outlet lines i.e. high pressure line and low
pressure line and plug the ports.
5. Drain the coolant.
6. Disconnect the Heater inlet and heater coil outlet
pipes.
WARNING
The heater pipes contain hot coolant which may spill
out when disconnected, even if the coolant is
drained, so be careful while disconnecting them.
Keep a suitable container below to collect the cool-
ant that will flow out.
7. Loosen up CCB (Cross Car Beam).
8. Remove RH side Foot Duct.
9. Loosen and remove mounting cap screws on
cross member assembly as shown in fig. below
