HVAC
39

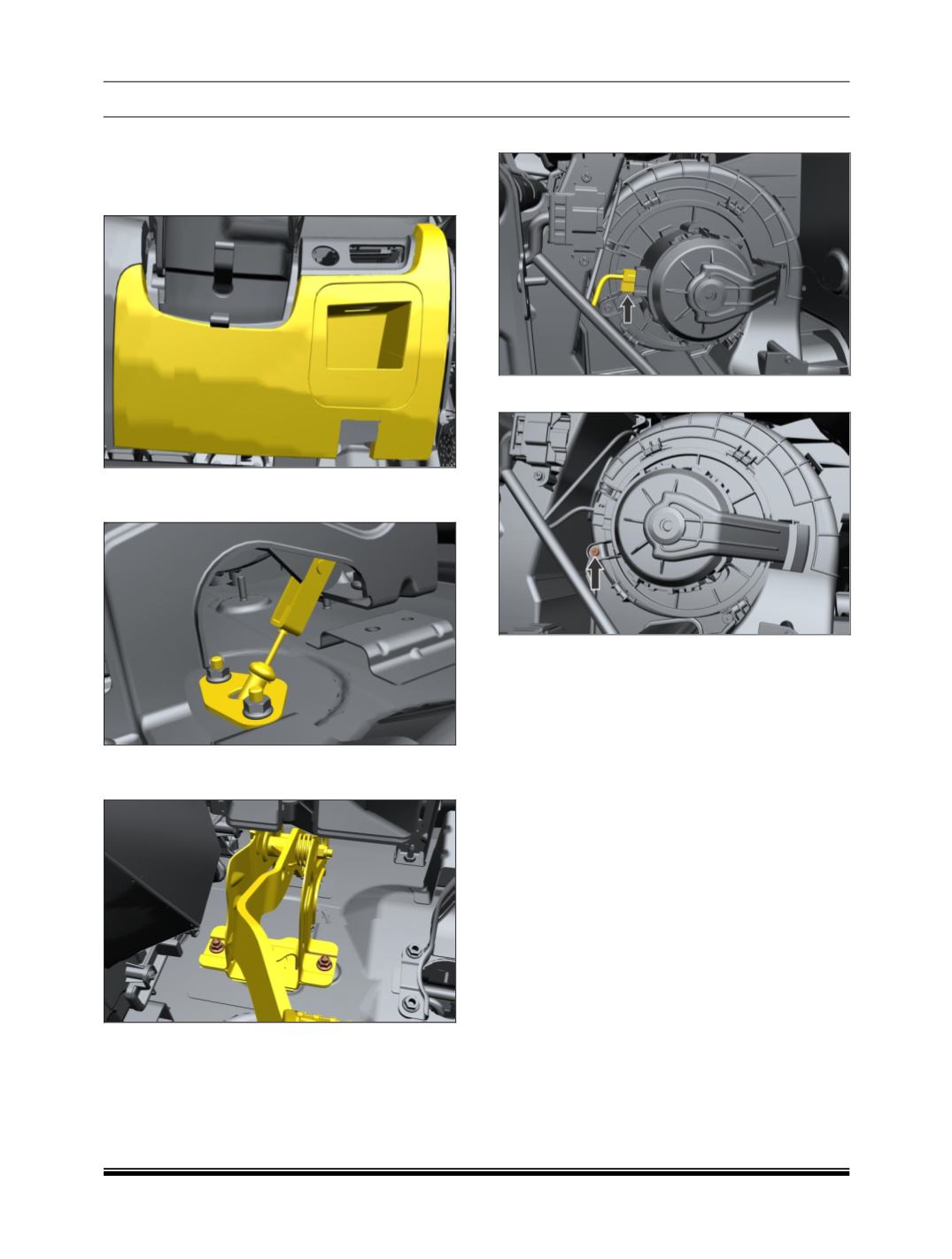

D. BLOWER MOTOR REMOVAL AND ASSEM-
BLY
1. To access Blower from Driver side remove driver
side Lower Panel.
2. Disconnect the clutch cable from clutch release
lever.
3. Remove mountings on clutch pedal and take out
the Clutch pedal.
4. Disconnect Electrical connection from Blower.
5. Remove one screws on blower Assembly.
6. Rotate the blower in anticlockwise direction and
finally take out Blower motor Assembly.
ASSEMBLY
For assembly follow the reverse procedure of re-
moval.
