ALTROZ SERVICE MANUAL

HVAC

17. ON VEHICLE REPAIRS

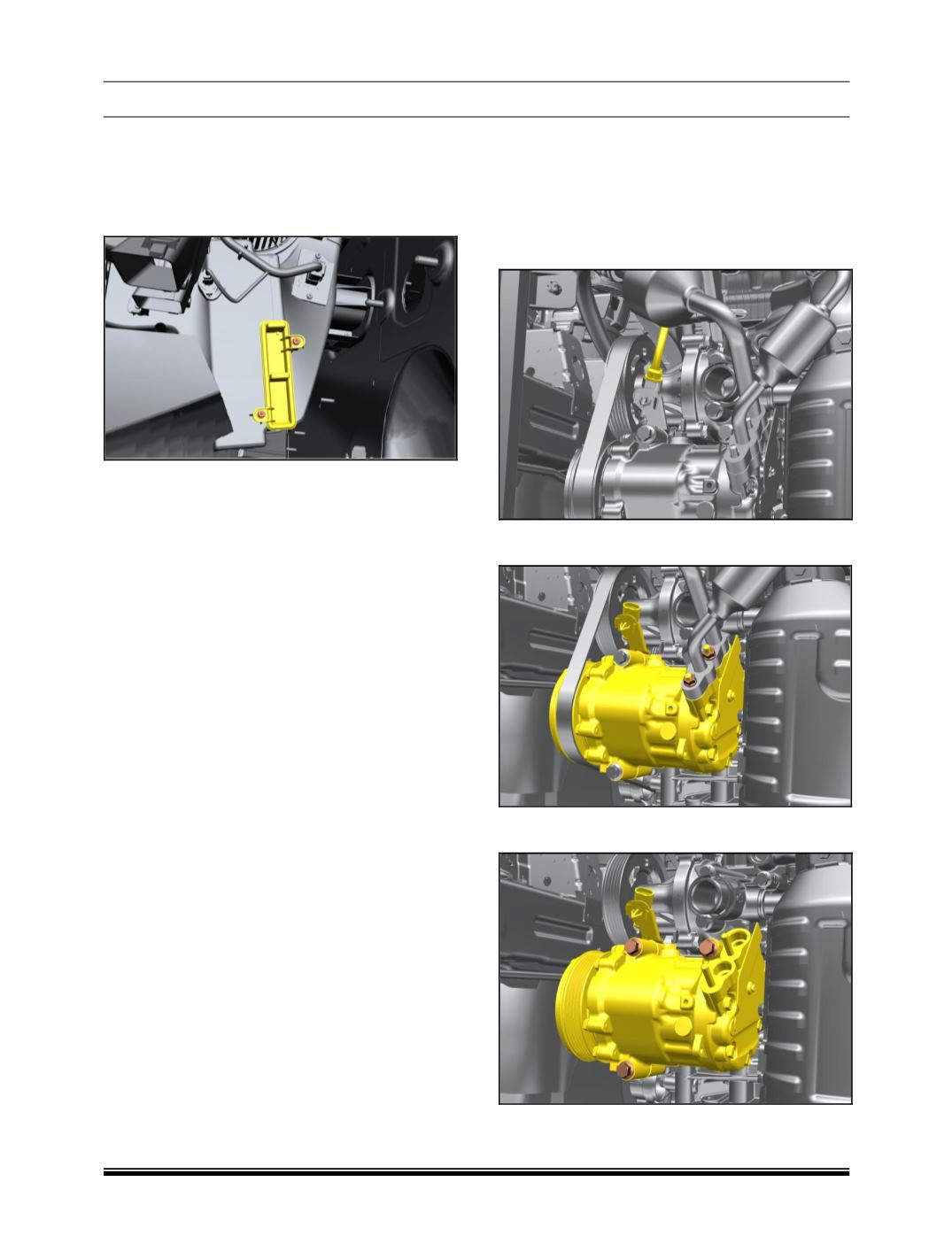

A. AC FILTER REMOVAL AND ASSEMBLY

1. Remove two screws on Air Filter cover.

2. Take out AC Filter cover.

3. Take out AC Filter.

CAUTION:

Always Position Arrows on AC Filter to-

wards Engine Fire wall.

FITMENT

For fitment follow the reverse procedure of removal.

B. COMPRESSOR REMOVAL AND ASSEMBLY

1. Discharge the refrigerant using standard recover-

ing equipment. (

Refer maintenance section.)

Remove the AC Compressor belt; (

refer AC

Compressor belt removal procedure in Engine

section.)

3. Remove Electrical Connection to compressor.

4. Disconnect the Suction line and the discharge

line.

5. Loosen and remove four mounting bolts and re-

move Compressor.
