ELECTRICAL
117

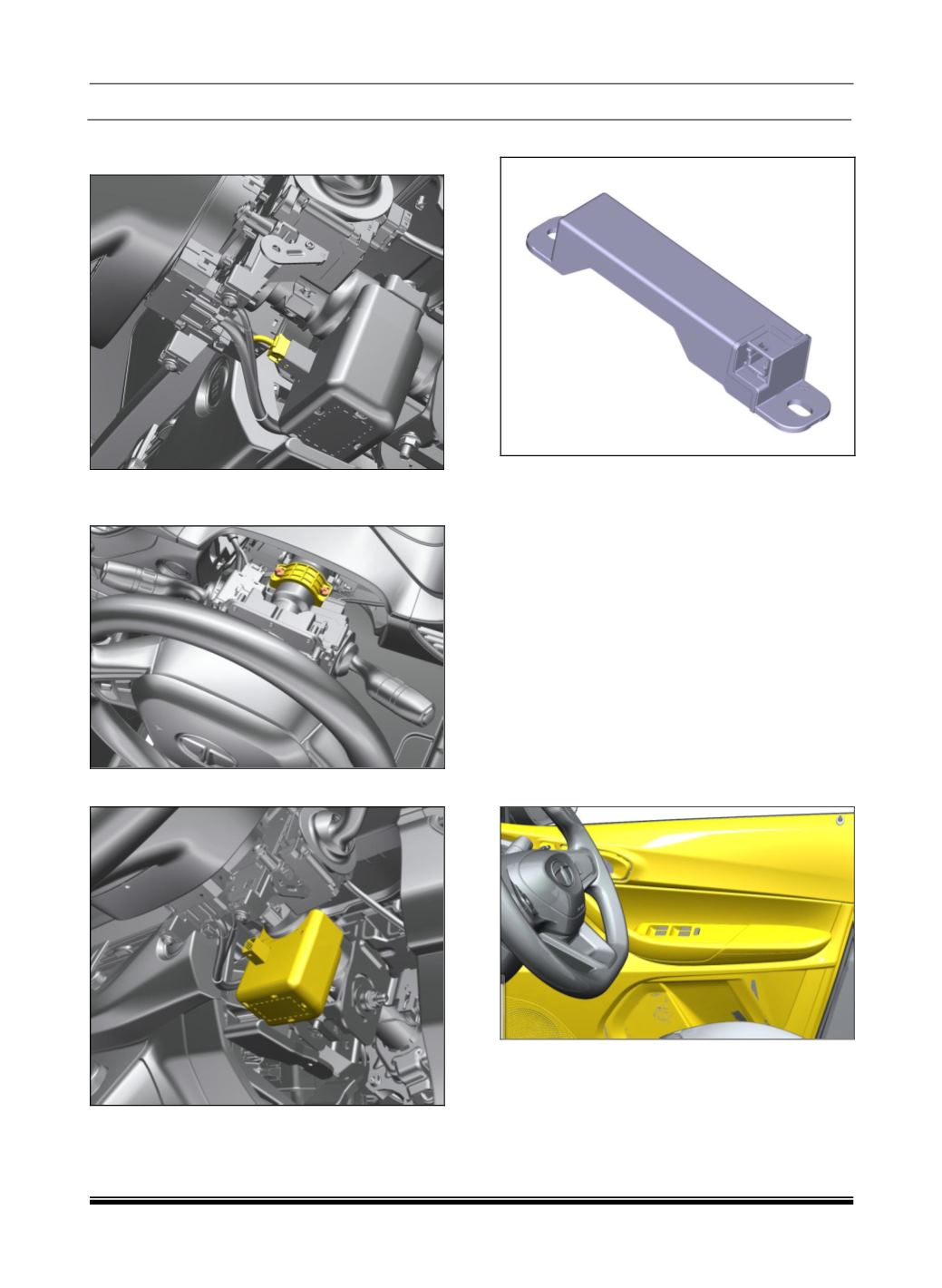

2. Disconnect the electrical connection to the
ESCL.
3. Remove the ESCL mounting bracket’s dome
screw (2 qty.).
4. Take out the ESCL unit.
REFITMENT
Follow the removal process in reverse.
10.4 LF ANTENNAS
LF antennas are responsible for detection of valid
Smart Key. These are responsible for LF
transmission for valid smart key searching
inside/outside the vehicle for Passive Start Stop
and Passive Entry.
LOCATION
LF antenna is located at following
A. RH rear door antenna.
B. Centre console antenna.
C. Tailgate antenna
REMOVAL
A. RH front door antenna.
1. Remove the door trims.
(Refer door trims
removal for the procedure in Body Section)
.
