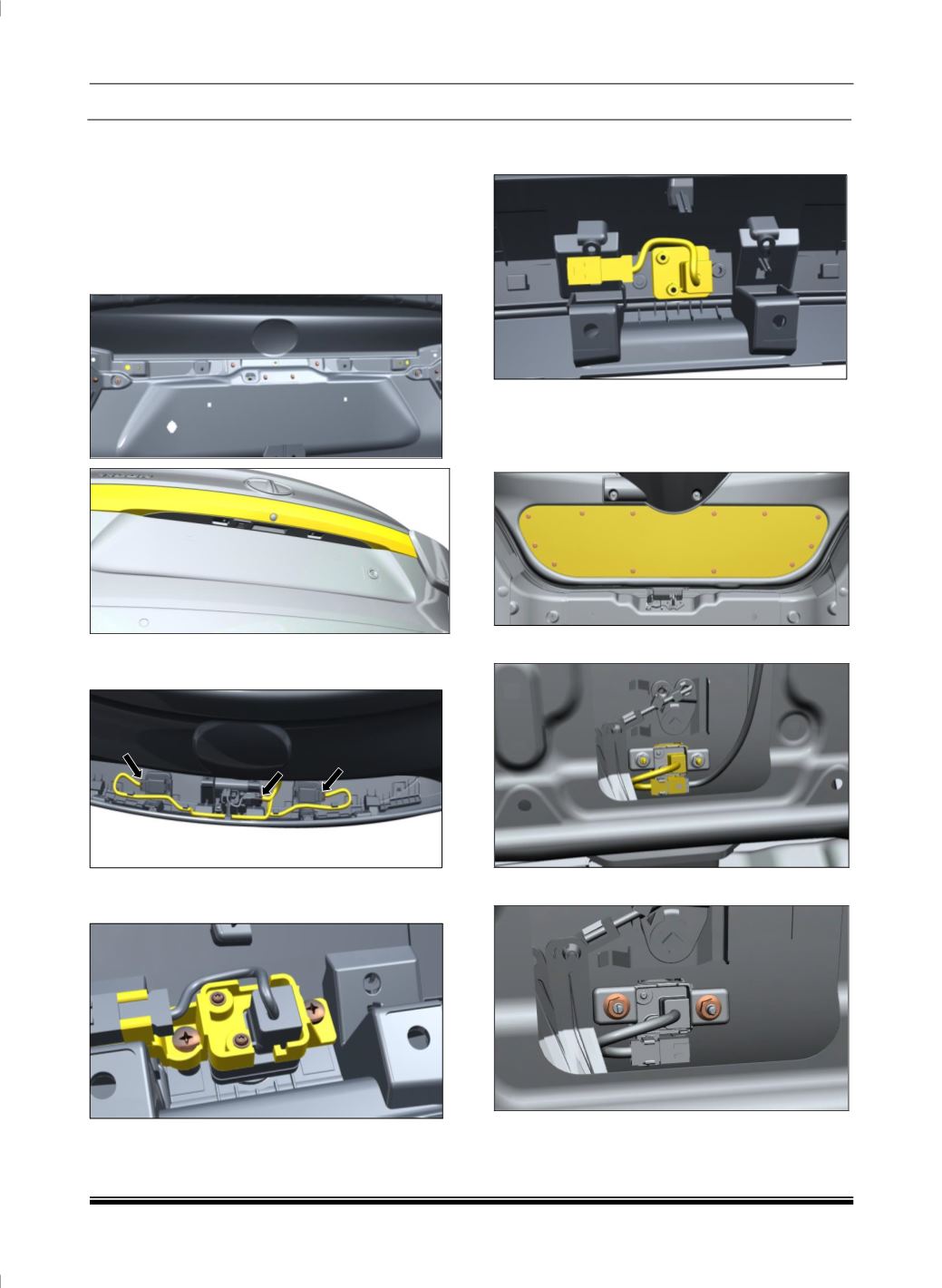

9.6 REAR VIEW CAMERA REMOVAL (TIGOR &
TIAGO)
REAR VIEW CAMERA REMOVAL (TIGOR)
1. Open tailgate and remove tailgate interior trim.
(Refer body section for removal)
2. Loosen the tailgate garnish mountings and
Position aside the tailgate garnish.
3. Disconnect the electrical connectors and
remove the tailgate garnish.
4. Remove the RCV bracket screw and remove
the RCV mounting bracket.
5. Take out the rear view camera from rear view
garnish.
REAR VIEW CAMERA REMOVAL (TIAGO)
1. Open tailgate door.
2. Pull out the tailgate trims.
3. Disconnect electrical connection.
4. Remove mounting nut of camera.
REFITMENT
For refitment follow the procedure in reverse.
