ELECTRICAL
116
REFITMENT
Follow the removal process in reverse.
OPERATION
1. ESCL unlock operation
:
If ESCL is in lock condition, ESCL gets unlocked
when start/stop button is pressed with valid smart
key inside the vehicle. Once ESCL is successfully
unlocked, vehicle power mode changes to ACC
mode.
2. ESCL lock operation:
When vehicle is in OFF mode (ACC, IGN and
Crank are OFF) and user opens the driver door
OR vehicle lock command is received, ESCL gets
locked.
(Wheel speed shall be less than 10 rpm and
Engine RPM shall not available).

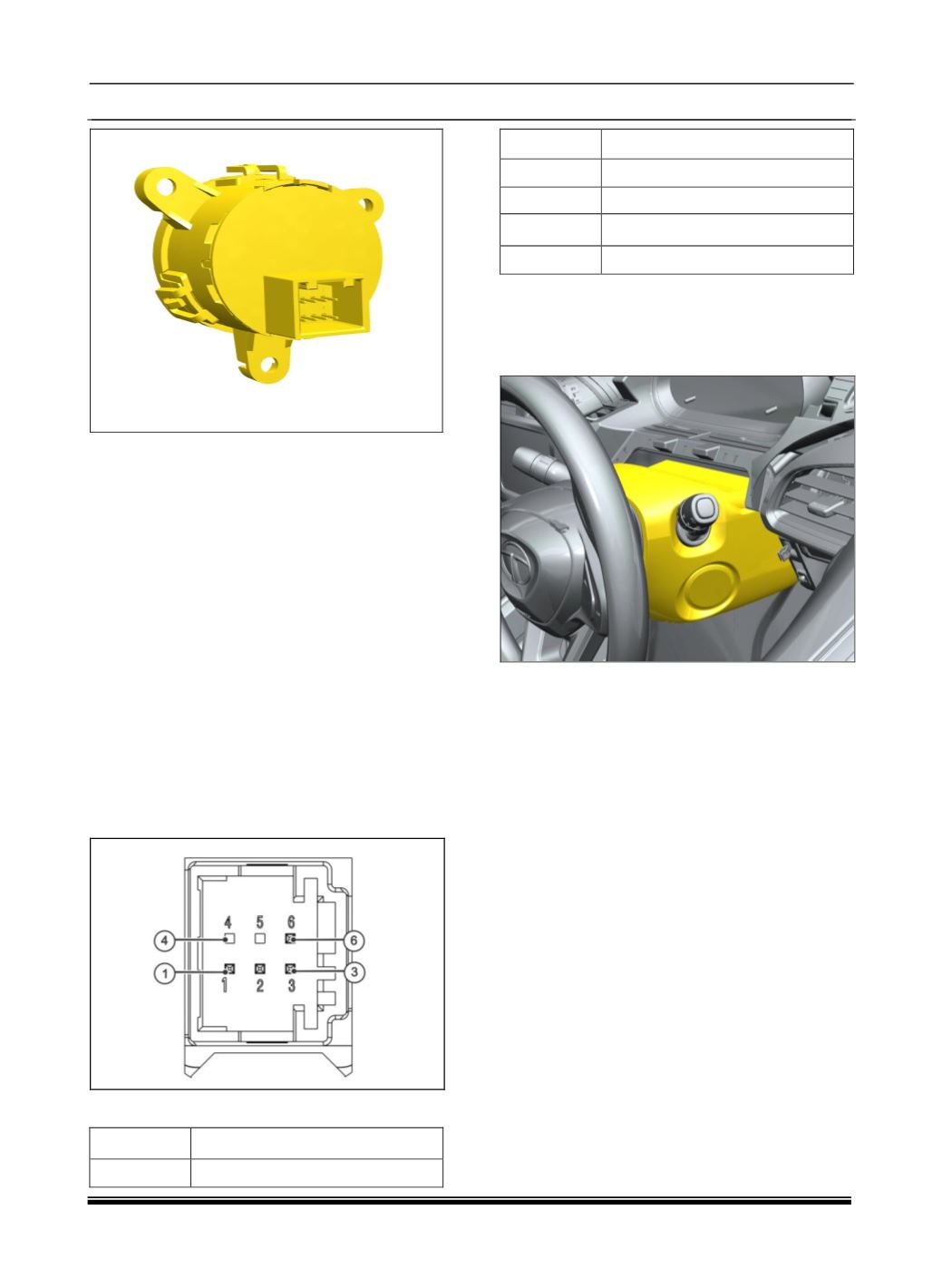

PINOUT DETAILS
CONNECTOR DETAILS
PIN
DESCRIPTION
1
Battery_Supply_+12V
2
CAN1-H
3
CAN1-L
4
(Reserve)
5
(Reserve)
6
GND_+12v
REMOVAL
1. Remove steering nacelle assembly.
(Refer
steering column removal for the procedure in
Steering Section)
.
