ELECTRICAL
113

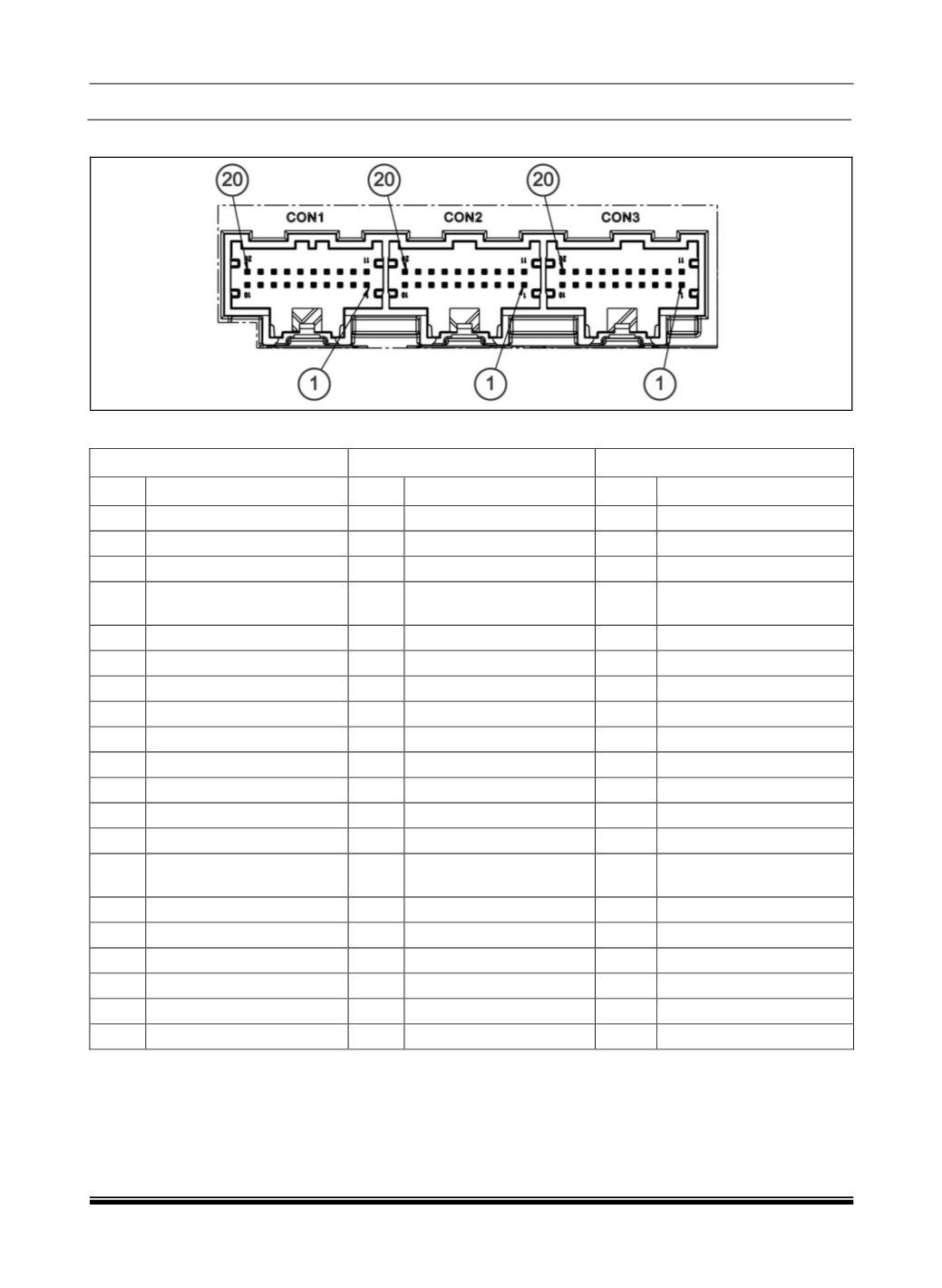

PINOUT DETAILS
CONNECTOR DETAILS
CONNECTOR 1
CONNECTOR 2
CONNECTOR 3
PIN
DESCRIPTION
PIN
DESCRIPTION
PIN
DESCRIPTION
1
TrunkSwGnd
1
Clutch10PercSwSig
1
PEPS_ECU_Gnd
2
NC
2
BrakeSwSig
2
NC
3
NC
3
Clutch90PercSwSig
3
NC
4
CoDriverDoorHandleSwG
nd
4
NC
4
NC
5
DriverDoorHandleSwGnd
5
StartStopSwGnd2
5
CAN_H
6
Front_Antenna_Low
6
StartStopSw_ACCLED
6
NC
7
NC
7
StartStopSw_IGNLED
7
NC
8
Back_Antenna_Low
8
StartStopSwGnd1
8
NC
9
Right_Antenna_Low
9
StartStopSwSig1
9
PEPS_ECU_Supply
10
NC
10
StartStopSwSig2
10
PEPS_ECU_Supply
11
TrunkSwSig
11
HW_WakeUp_Output
11
NC
12
NC
12
HW_WakeUp_Input
12
NC
13
NC
13
NC
13
CAN_L
14
CoDriverDoorHandleSwSi
g
14
NC
14
NC
15
DriverDoorHandleSwSig
15
ACC_Relay_Feedback
15
Immo_TellTale
16
Front_Antenna_High
16
ACC_Relay_Output
16
NC
17
NC
17
NC
17
Crank_Relay_Output
18
Back_Antenna_High
18
NC
18
Crank_Relay_FeedBack
19
Right_Antenna_High
19
IGN_Relay_Feedback
19
20
NC
20
IGN_Relay_Output
20
NC
