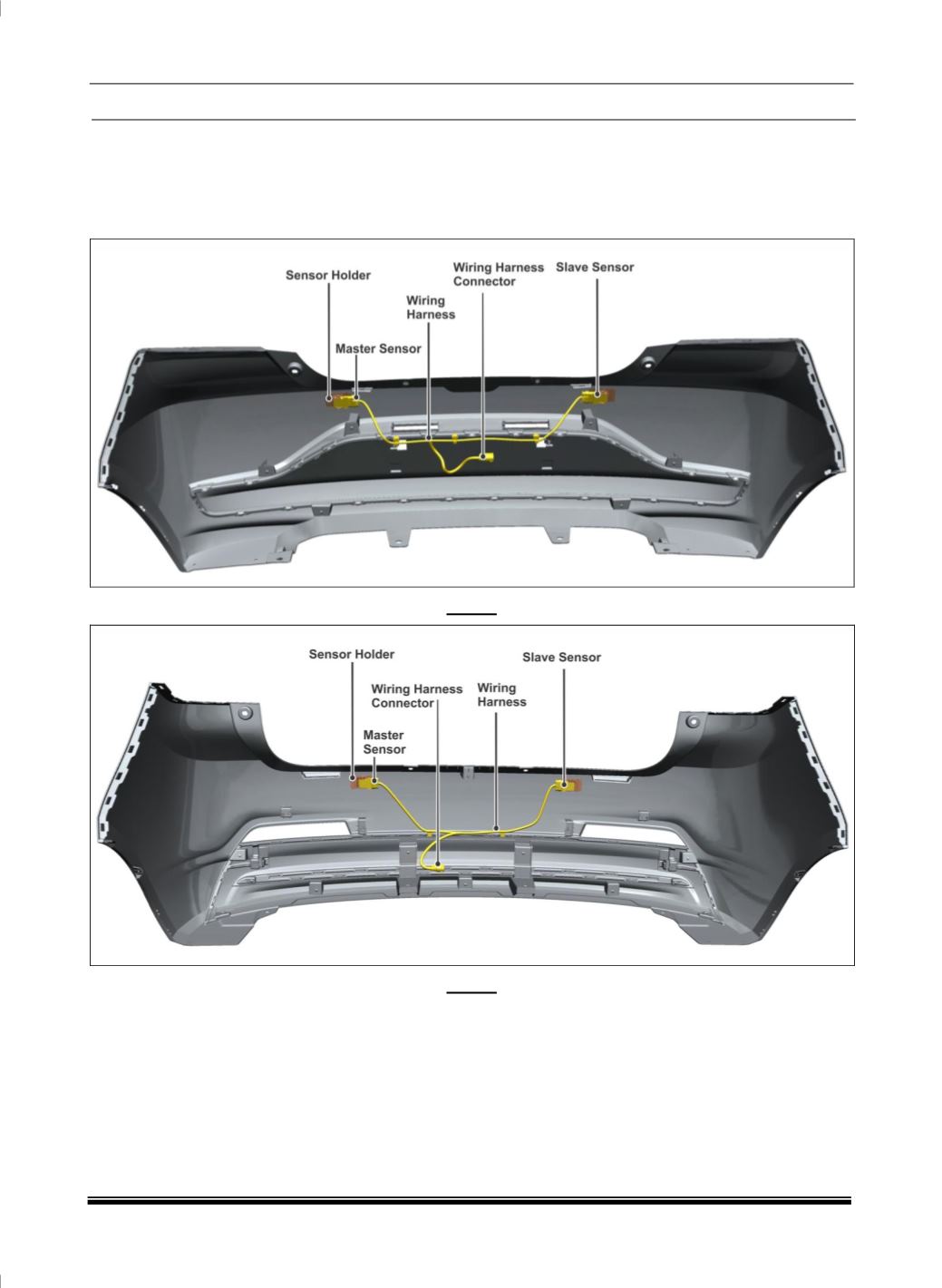

9.2 ECU to Sensor Electrical Interface:
Ultrasonic sensors shall be mounted on the rear bumper. The slave sensors shall be hardwired to the master
sensor and the master sensor shall be hardwired to the BCM ECU through LIN. The sensors shall be
powered through ignition and controlled by BCM ECU. The ground of the sensors shall be connected to the
ground of the vehicle.
TIAGO
TIGOR
