397 / 418
TIAGO / TIGOR RPAS_RVC
99

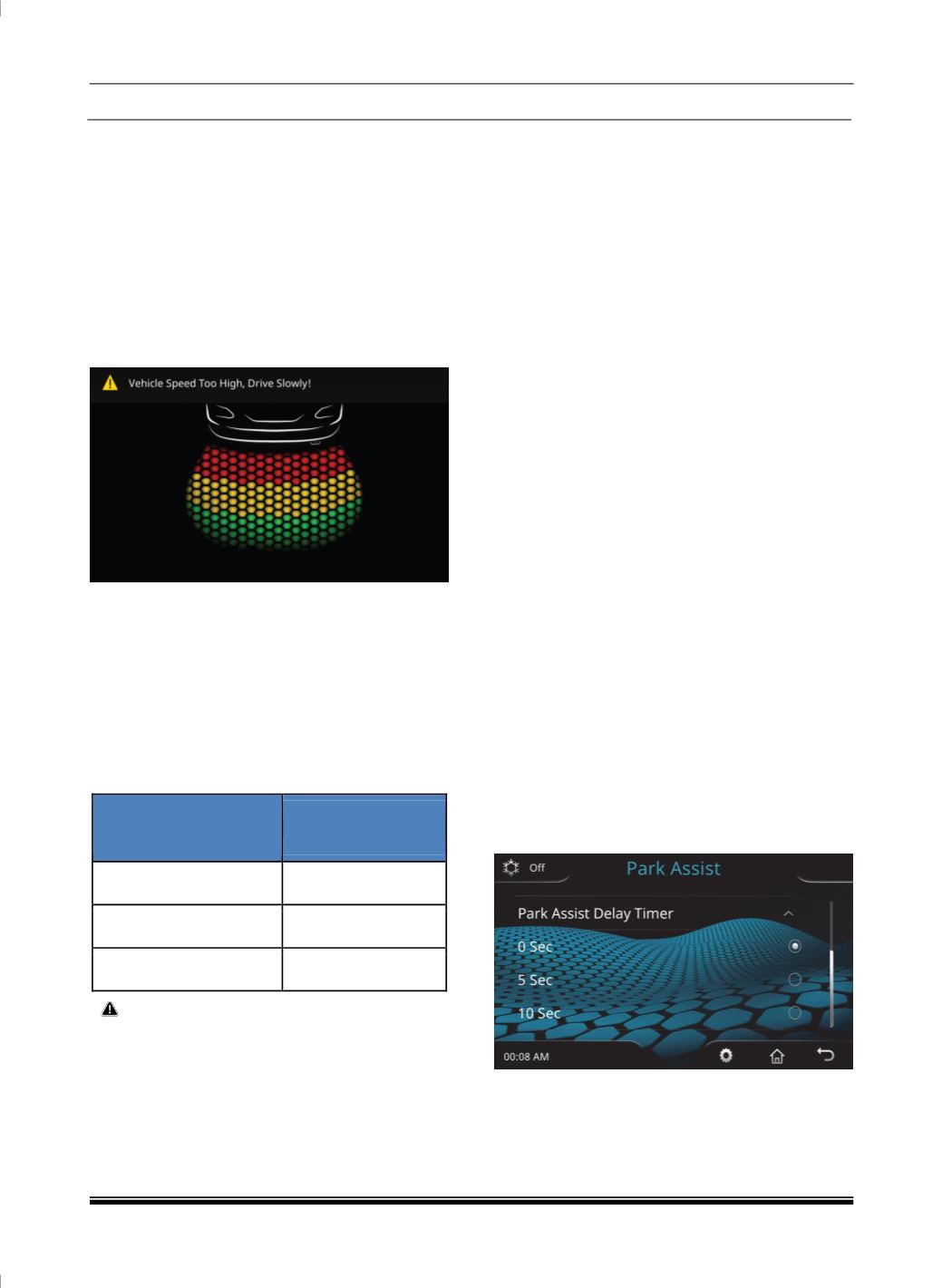

9. REVERSE PARK ASSIST SYSTEM
A. Park Assist:
Park Assist feature will assists you to park vehicle
safely in reverse to avoid objects, which can hit or
damage the rear bumper by alerting with audible
and visual information from car infotainment
system. Audible and visual information is with
respect to the proximity of the object from the rear
bumper.
Park Assist is useful while you are parking the
vehicle in congested and close parking area.
B. Park Assist functionality overview:
There are 2 ultrasonic sensors placed on the rear
bumper of the vehicle. Once Park Assist system
gets activated, sensors will start detecting the
proximity of an obstacle approximately "25cm to
120cm"from the rear bumper and gives the
proximity information to Infotainment music system
in the form of audio and visual information. In case
of low variants without Head unit, there will be only
audio warning through buzzer.
Distance range from
Bumper (in cm)
Audible Information
25
–
40
Continuous Beep
41
–
80
Fast beep
81
–
120
Slow Beep
0-25cm obstacle detection performance is
not guaranteed due to ultrasonic sensor
technology limitation.
NOTE:
The distance values mentioned in above table are
approximate values.
C. Park assist indications
In case reverse park assist system malfunctions,
fault message may appear on the infotainment
screen.
Reason for this fault may be
a. Park Assist Controller / Body Control Module
Failure"
b. Sensor Malfunction
c. Partner components such as Infotainment music
system, Instrument Cluster failure.
D. Park Assist Activation / Deactivation
Procedure:
Activation
Reverse gear
This system will start, if reverse gear is engaged,
or park assist button (if available) is pressed.
Deactivation
System will stop, if reverse gear is disengaged, or
park assist button (if available) is pressed.
If started through infotainment, the system can be
stopped using a cross button on infotainment
screen.
E. Park Assist Delay Timer:
If Park Assist system is deactivated by “Reverse
Gear”, it will take certain configurable time period
to go to previous infotainment screen. This is to
ensure that, Pak Assist should not switch off
immediately for repeated engagements or
disengagements of reverse gear.
You can configure this delay time period by the
following sequence of operations,
“Set Up -> Vehicle Setup -> Park Assist ->Park
Assist Delay Timer”
