ELECTRICAL

97

8.5

REMOVAL AND FITMENT OF FRONT AND

REAR WIPER

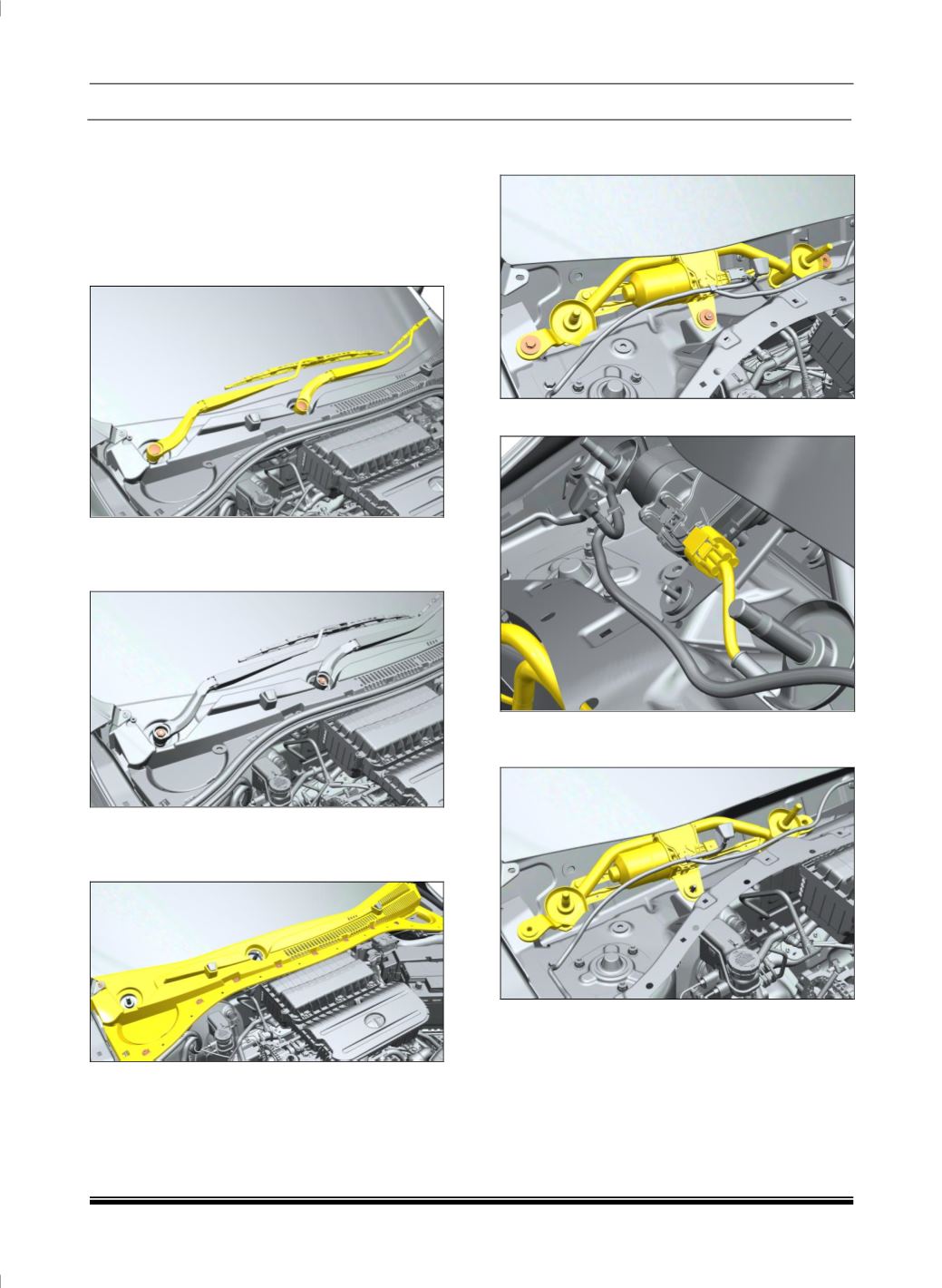

FRONT WIPER

REMOVAL

1. Lift the bonnet and fix it in the stay rod.

2. Remove Wiper Spindle Cap.

3. Loosen and remove wiper blade mounting

fastener and pull wiper arms out of wiper

spindle.

4. Remove Plenum Cover assembly.

(For

procedure refer Plenum Cover assembly

removal process).

5. Loosen and remove mounting bolts and nut of

Wiper

6. Remove the wiper motor electrical connection.

7. Remove Wiper motor assembly complete with

linkages.

FITMENT

For fitment follow reverse procedure of removal.
