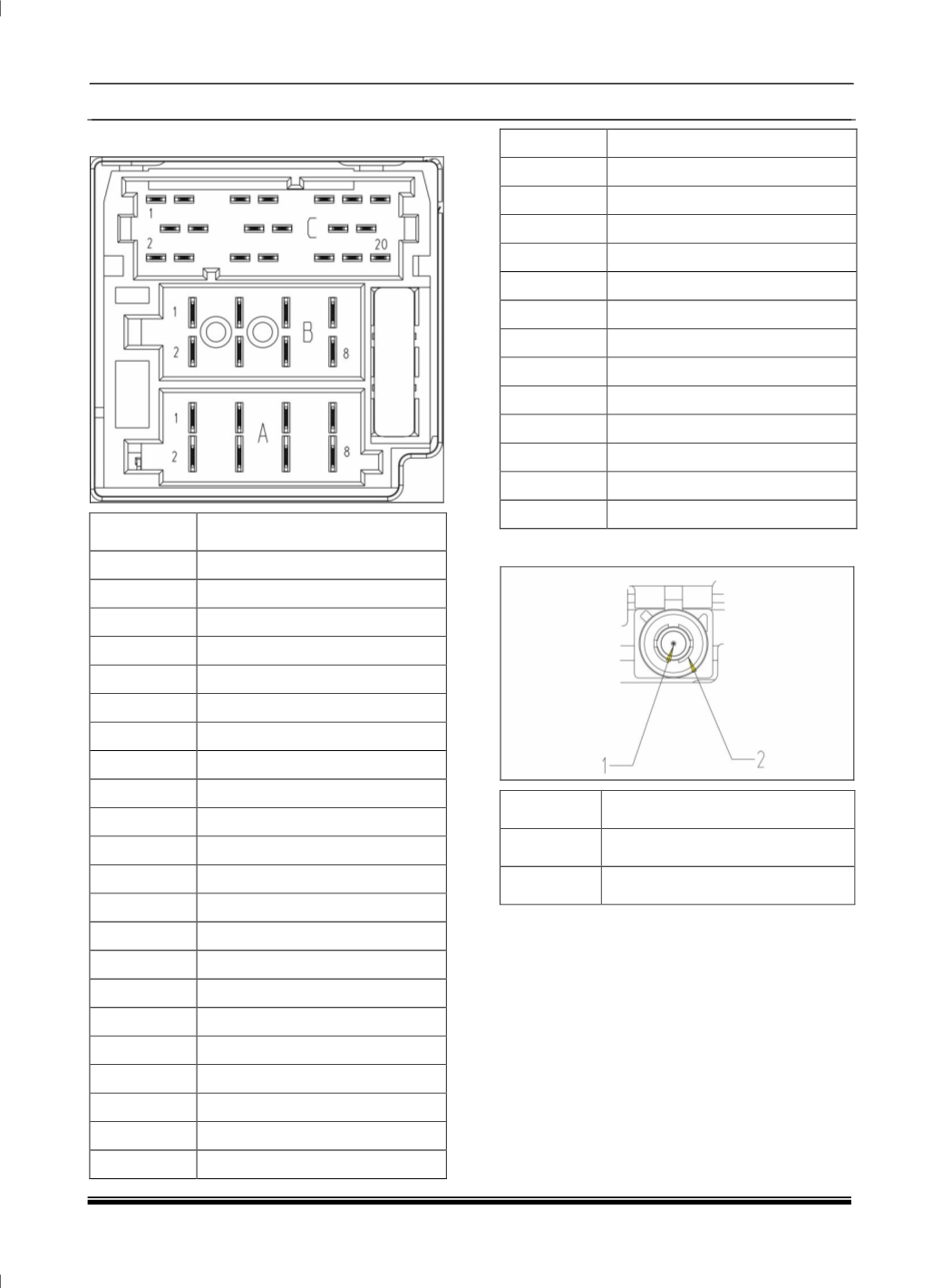

36 POLE CONNECTOR DETAILS:
PIN
DESCRIPTION
A1
Anti-theft enable
A2
LIN
A3
Hard wake up2
A4
Hard wake up1
A5
Ignition
A6
Key In / (Accessory in PEPS)
A7
V Battery
A8
GND
B1
Speaker rear RH +
B2
Speaker rear RH -
B3
Speaker front RH +
B4
Speaker front RH -
B5
Speaker front LH +
B6
Speaker front LH -
B7
Speaker rear LH +
B8
Speaker rear LH -
C1
Mic-
C2
CAN_H
C3
NC
C4
Mic+
C5
CAN_L
C6
NC
C7
SWcSignal
C8
RVcVideoShield
C9
RVcVideoSig+
C10
SWcGND
C11
RVc Power
C12
RVcVideoSig
C13
NC
C14
RVC Ground
C15
NC
C16
Aux In Shield
C17
Aux In Detect
C18
Aux In Com
C19
Aux In_R
C20
Aux In_L
AM / FM CONECTOR:
No.
CONECTIONS
1
Am Fm signal
2
Am Fm shield
