ELECTRICAL
49

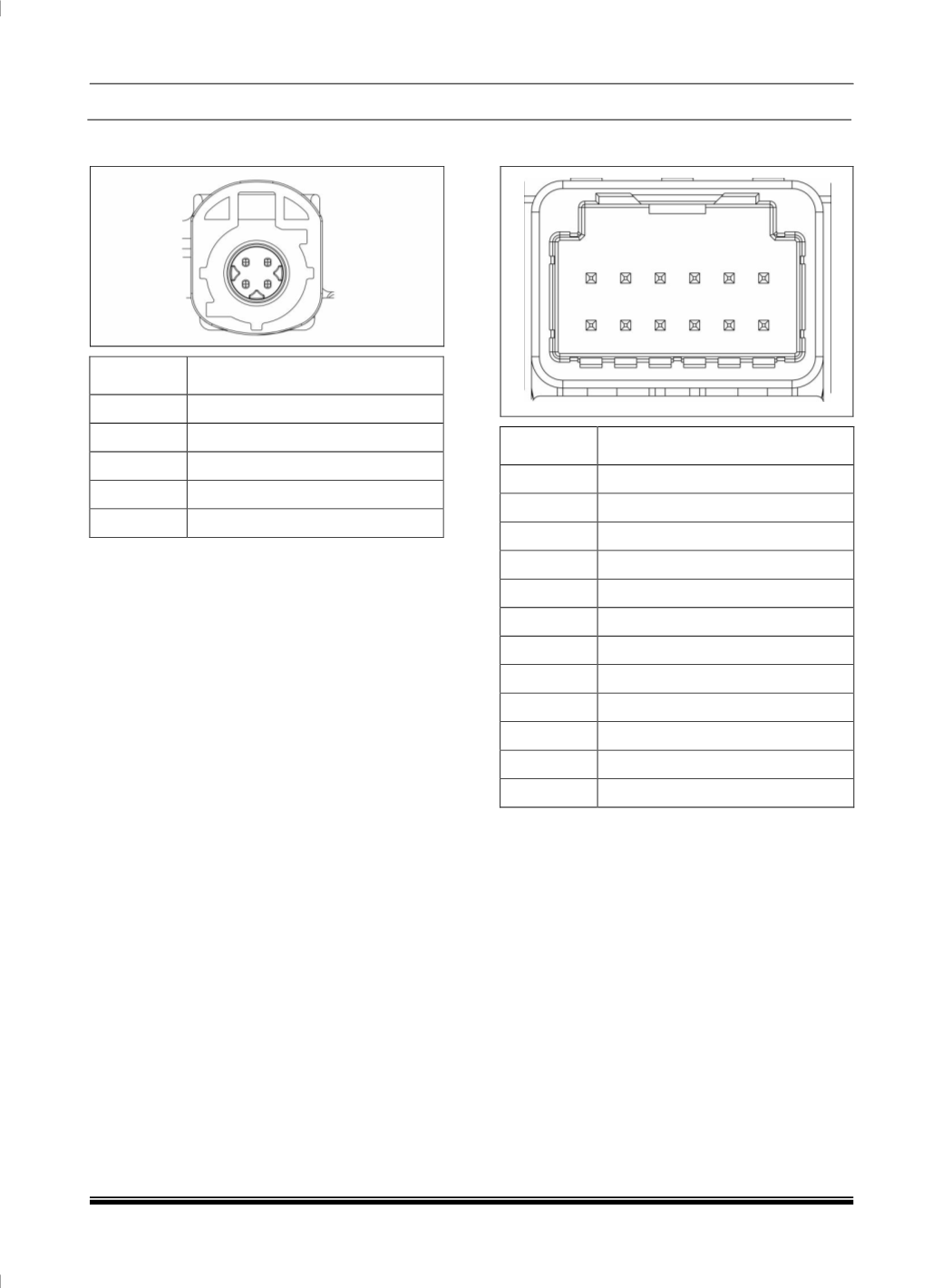

USB CONECTOR
PIN
DESCRIPTION
1
USB1Vbus
2
USB1D-
3
USB1Vbus
4
USB1D+
5
USb1Shield Gnd
12 POLE CONNECTOR DETAILS
PIN
DESCRIPTION
1
LCD_CLK+
2
LCD_CLK-
3
GND
4
LCD_DAT_IN -
5
LCD_DAT_IN +
6
LCD_RST
7
LCD_CS
8
LCD_CMD
9
LCD_DAT_OUT
10
BACKLIGHT PWM
11
+5V VCC
12
GND
