ELECTRICAL
30

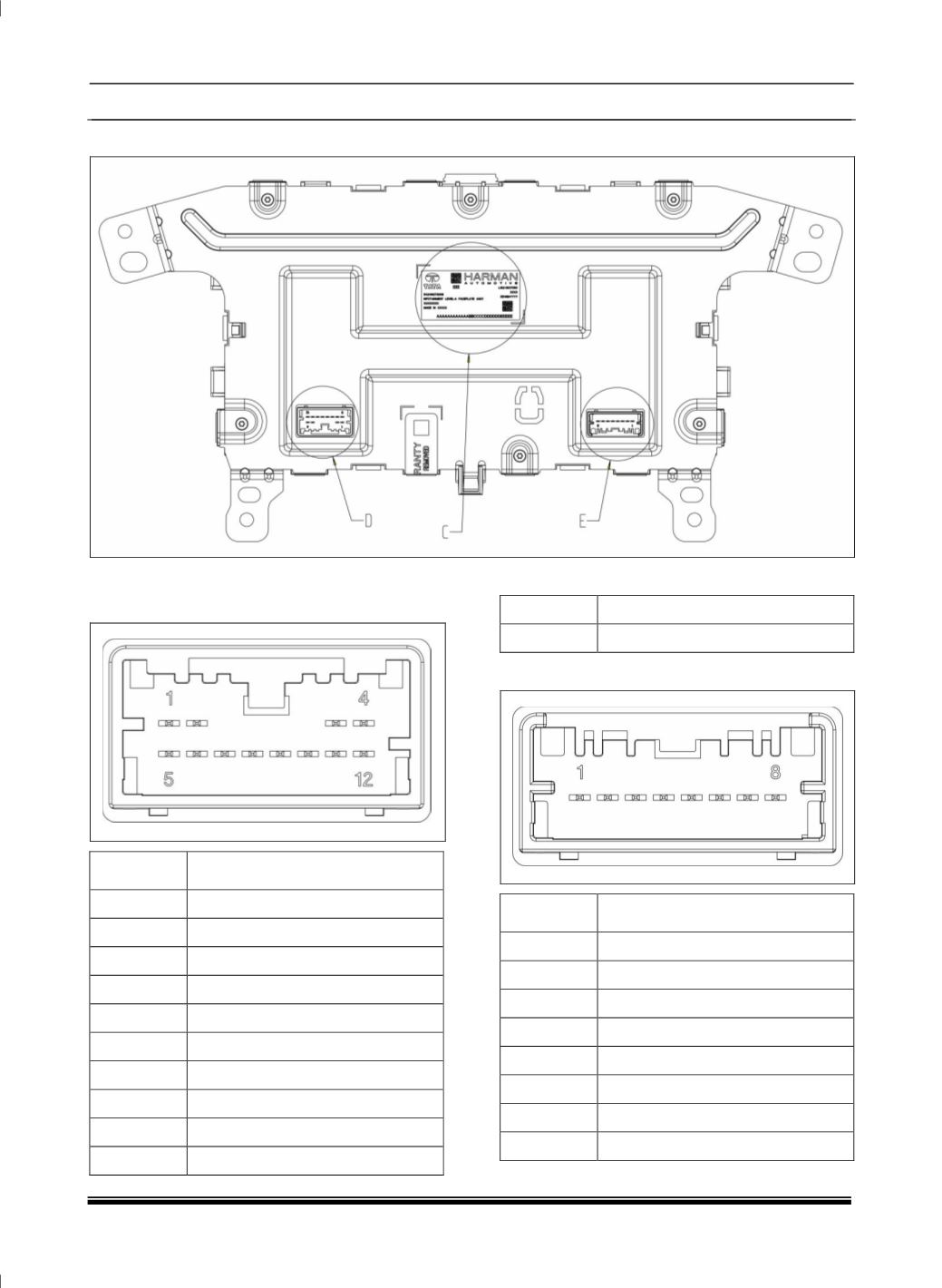

INFOTAINMENT SYSTEM DISPLAY DETAILS (Level A)
12 POLE CONNECTOR DETAILS
PIN
DESCRIPTION
1
LCD_CLK+
2
LCD_CLK-
3
LCD_DAT_IN +
4
LCD_DAT_IN -
5
GND
6
LCD_RST
7
LCD_CS
8
LCD_CMD
9
BACKLIGHT PWM
10
+5V VCC
11
GND
12
LCD_DAT_OUT
8 POLE CONNECTOR DETAILS
PIN
DESCRIPTION
1
ButtonPanelVbatt
2
ButtonPanelGnd
3
Hardwired Wakeup 2
4
Ign
5
NC
6
LIN
7
NC
8
NC
