ELECTRICAL
13

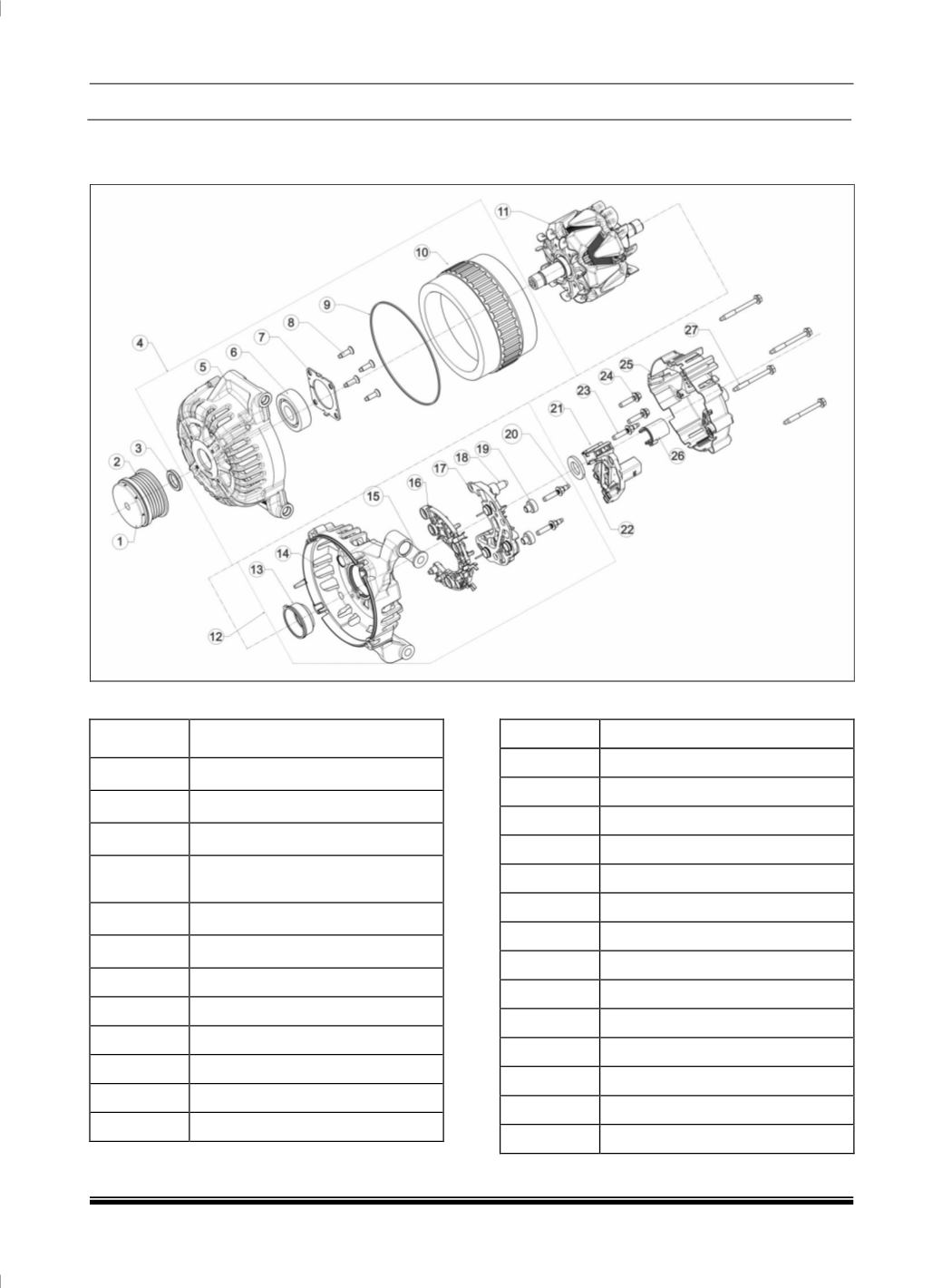

EXPLODED VIEW:
For 1.2L NG (Petrol Engine)
ALTERNATOR (PART LIST):
ITEM NO.
DESCRIPTION
1
PULLEY CAP
2
PULLEY
3
PULLEY SPACER
4
FRONT BRACKET COMPLETE
ASSEMBLY
5
FRONT BRACKET MACHINED
6
FRONT BEARING
7
RETAINER BRACKET
8
RETAINER SCREW
9
O-RING
10
STATOR ASSEMBLY
11
ROTOR ASSEMBLY
12
RECTIFIER ASSEMBLY
13
REAR BRACKET MACHINED
14
REAR BEARING CAP
15
BUSH
16
CONNECTOR
17
HEAT SINK
18
B+TERMINAL
19
INSULATION BUSH
20
STUD BOLT
21
REGULATOR
22
RED SEAL
23
STUD BOLT
24
SCREW
25
REAR COVER
26
SLIP RING GUIDE
27
ASSEMBLY SCREW
