BRAKES
32

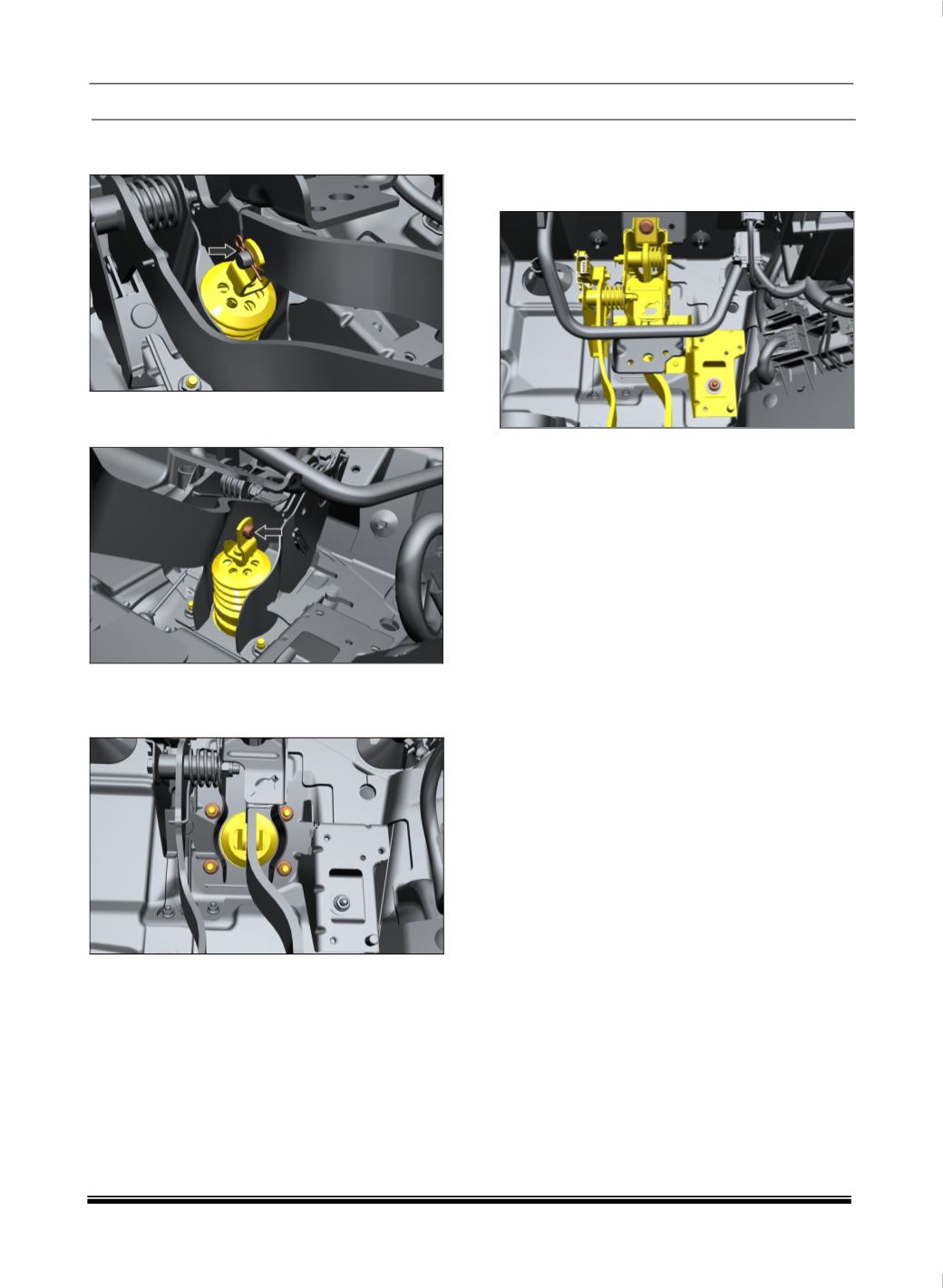

5. To disconnect pedal from brake booster
remove split pin as shown in fig.
6. Remove clevis pin to separate booster
assembly from pedal
7. Loosen and remove the brake mounting M8
nuts from panel firewall RHD to free booster
Assembly.
8. Push out booster Assembly to make space to
release clutch/brake pedal Bracket Assembly.
9. Loosen and Remove Upper and Lower
mountings on Bracket Assembly from Firewall
Panel RHD.(Brake and clutch control
mountings).
10.Pull out the brake mounting bracket along with
brake pedal and clutch pedal from the driver’s
foot control area.
INSTALLATION
1. Hold the brake control bracket on firewall.
2. Tighten the brake upper mounting M8 nut.
3. Tighten the brake mounting M8 nuts on panel
firewall RHD.
4. Match clevis hole to the pedal lever hole and
insert clevis pin into the hole.
5. Insert split pin in to the hole of clevis pin and
split the end of split pin.
NOTE:
1. Not to add carpet over the basic carpet in
the pedal region.
2. Basic carpet should be held firmly in the
pedal region.
