BRAKES

31

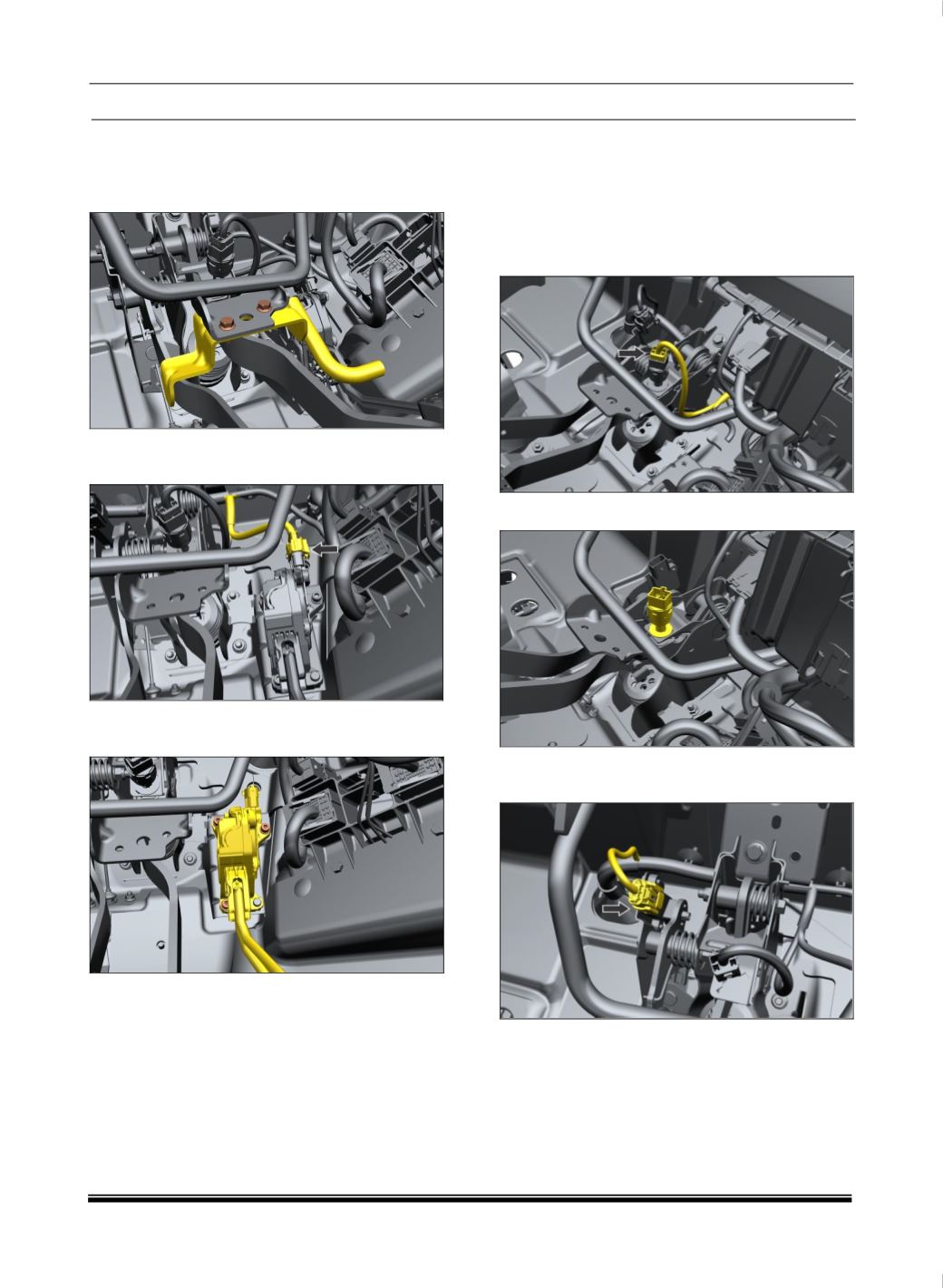

11. ACCELERATOR PEDAL ASSEMBLY

REMOVAL

1. Remove pedal Blocker Rod.

2. Remove Electrical connection on accelerator

pedal.

3. Remove mountings on accelerator pedal and

take out accelerator pedal.

12. BRAKE/CLUTCH PEDAL ASSEMBLY

REMOVAL

1. Remove Accelerator pedal.(Refer Accelerator

removal procedure)

2. Remove electrical connection on brake light

switch.

3. Remove Brake Light Switch.

4. Remove Electrical connection to clutch pedal

sensor.
