BRAKES
38

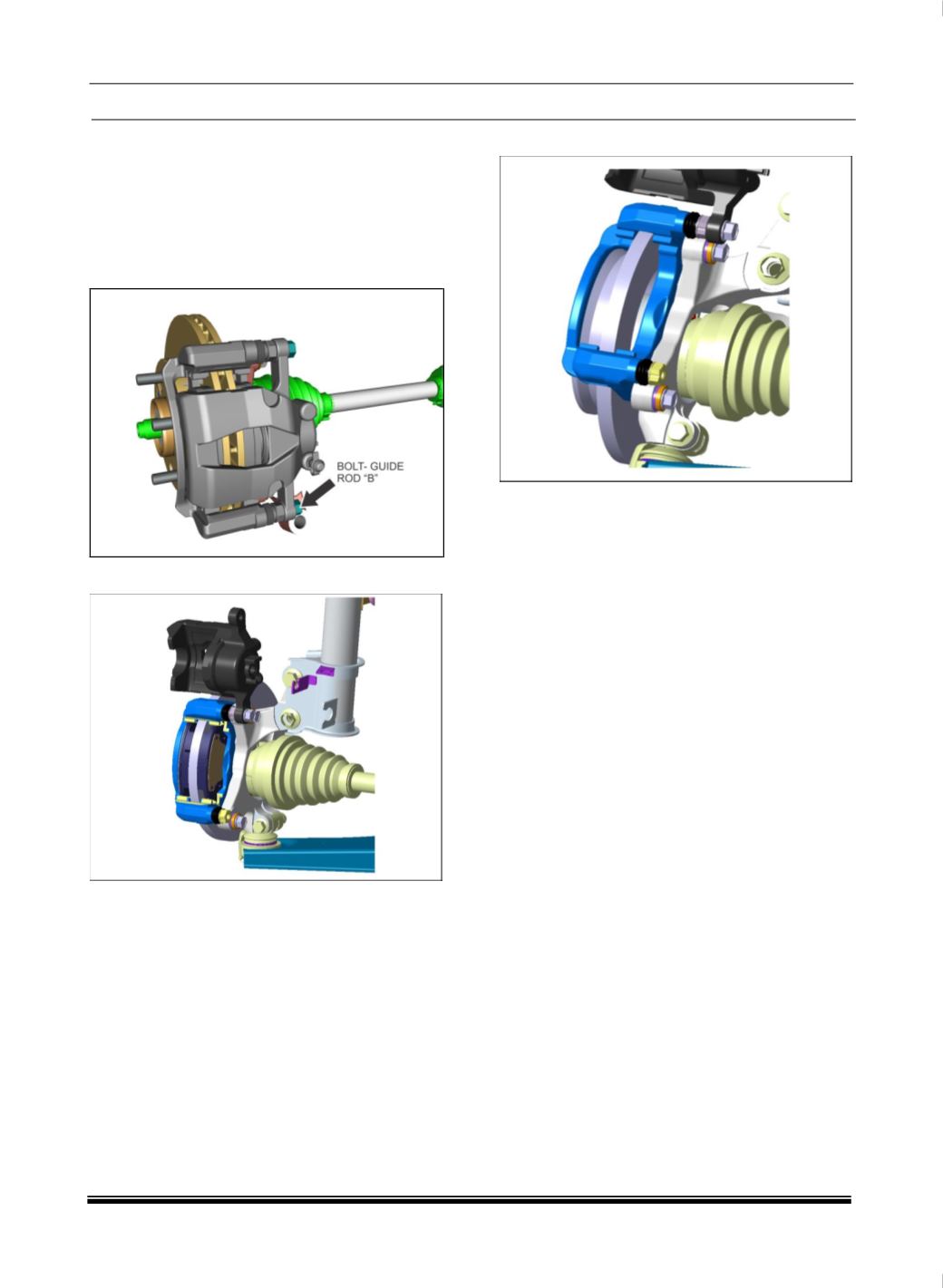

REMOVAL OF PAD
1. Keep the gear shifter lever in neutral position.
2. Apply the parking brake.
3. Jack the vehicle and remove the rear wheel.
4. Loosen and remove the bottom sliding pin
bolt.
5. Swing caliper as shown in figure.
6. Remove brake pads.
ASSEMBLY:
Follow reverse procedure to assemble brake
pads.
