SUSPENSION

37

9.11 ON

BENCH

DISASSEMBLY

AND

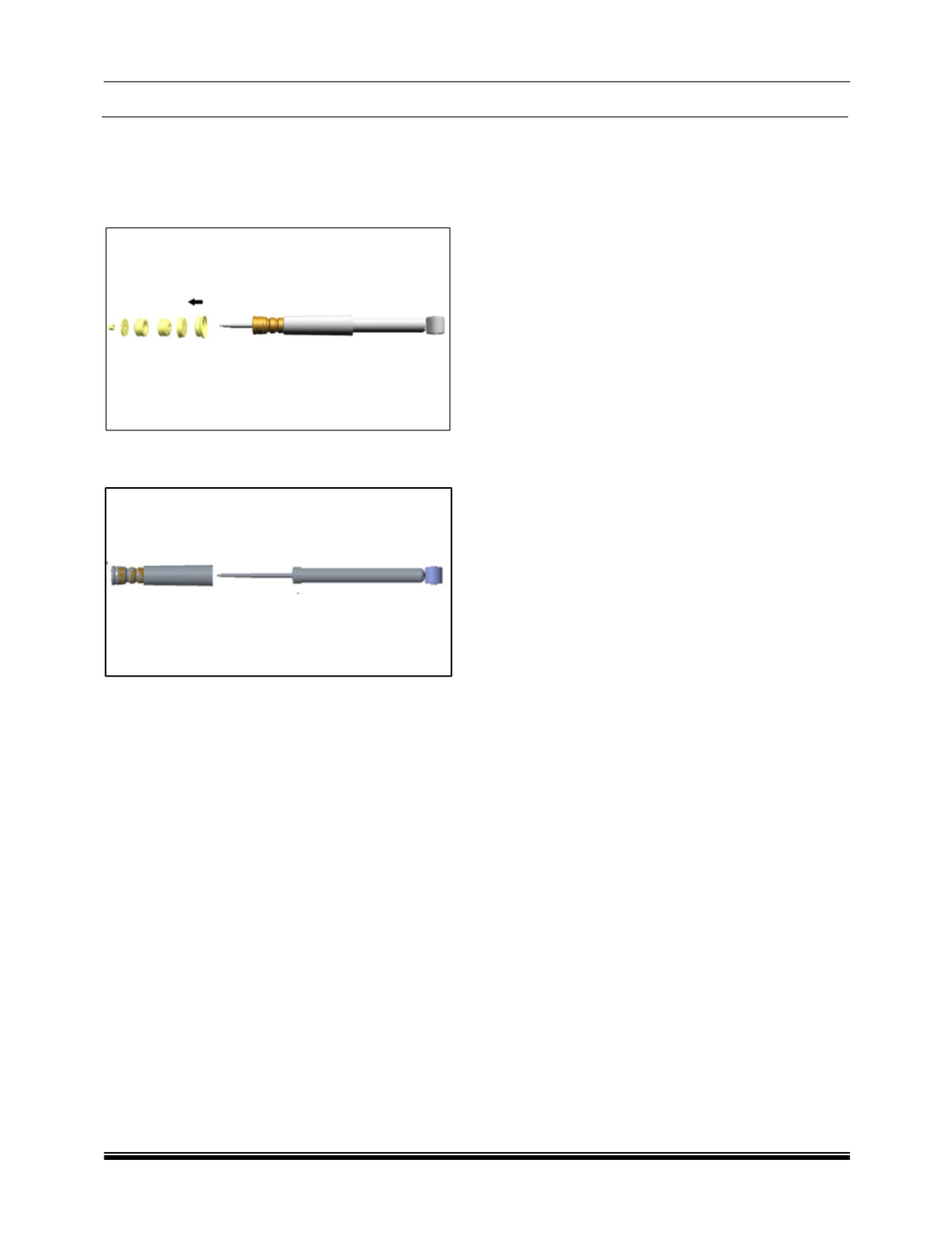

ASSEMBLY OF REAR SHOCK ABSORBER

DISASSEMBLY

1. Remove the rubber pad and metal washer.

2.

Remove sub-assembly of bump stopper & dust

cover from damper assembly

.

3. Check for any oil leakage in the shock absorber,

if any replace the unit.



Check bump stop for cracks and replace if any

after disassembly from sub-assembly.



Check top rubber for cracks.



Check dust cover for damage and replace it if

any

after disassembly from sub-assembly.

ASSEMBLY

1. Press bump stopper inside ID of dust cover

such that dust cover will be fitted in bottom

groove of bump stopper.

2. Fit sub-assembly of bump stopper & dust cover

on shock absorber.

3. Press bump stopper top groove inside ID of

cup bump stopper.

4. Place the metal cover and washer over it.

5. Position the rubber pad over the assembled

Unit.
