TRANSAXLE - TA5260
43

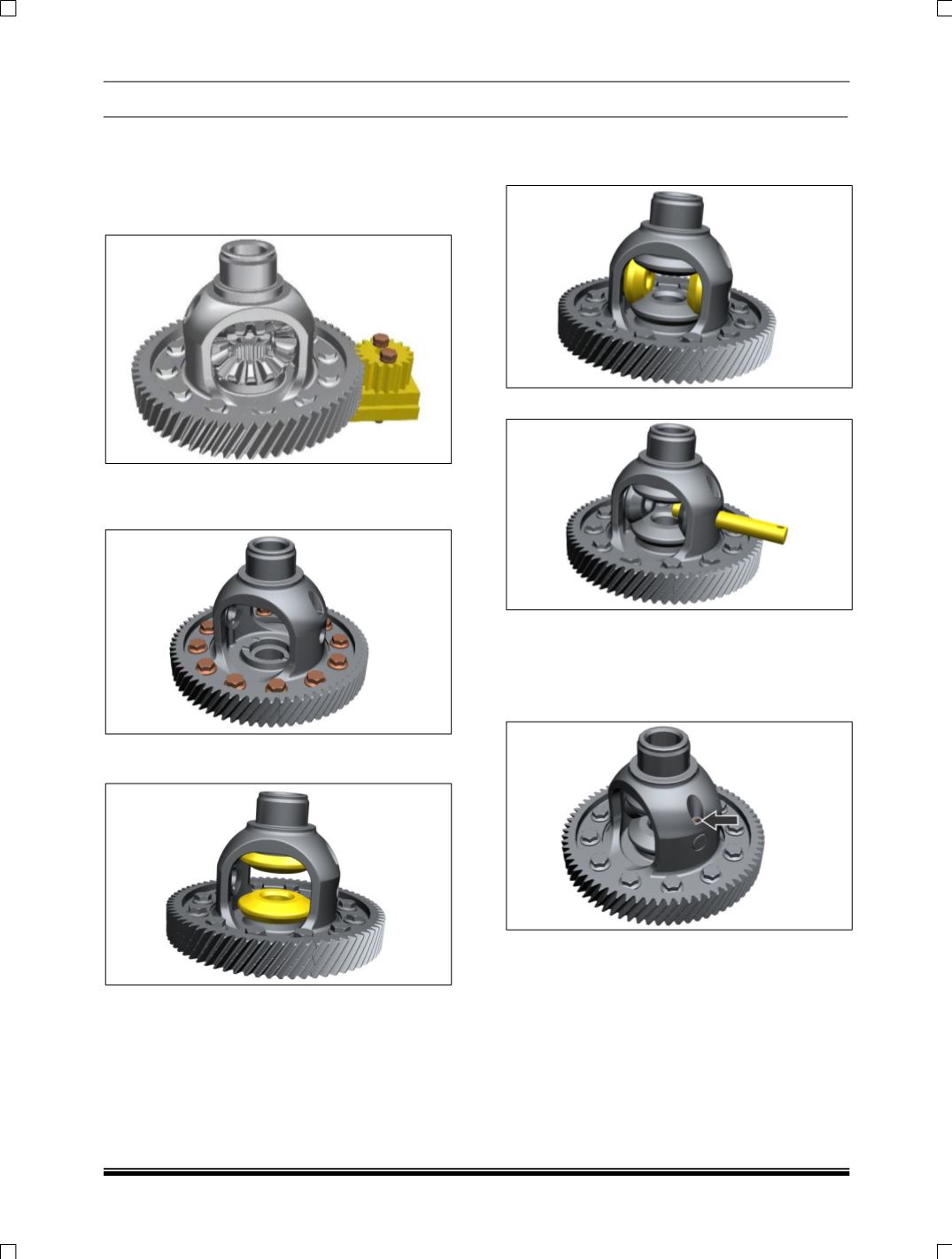

H. ASSEMBLY OF DIFFERENTIAL
1. Hold fixture for gear on differential casing on
soft jaw vice.
2. Mount differential housing on
fixture part no.
2702 5890 2609
and lock it.
3. Place gear final drive on differential housing.
Tighten the collared bolts (12 nos.) to specified
torque of 8 to 9 kg-m.
4. Place both the bevel gear with washer on the
differential housing with spacer.
5. Place another set of idler bevel gear on the
already lifted bevel and rotate by 90° so as to
align the bevel to spider shaft hole.
6. Push the spider into the hole.
7. Check the free play of differential gears. It
should be 0-0.1 mm.
8. If the value of play is not within specifications,
then try with different thickness washer.
9. Assemble Dowel sleeve.
NOTE:
To check backlash, hold the two different pinions
and one side gear and check free play or remaining
side gear teeth flank.
