ALTROZ SERVICE MANUAL

TRANSAXLE - TA5260

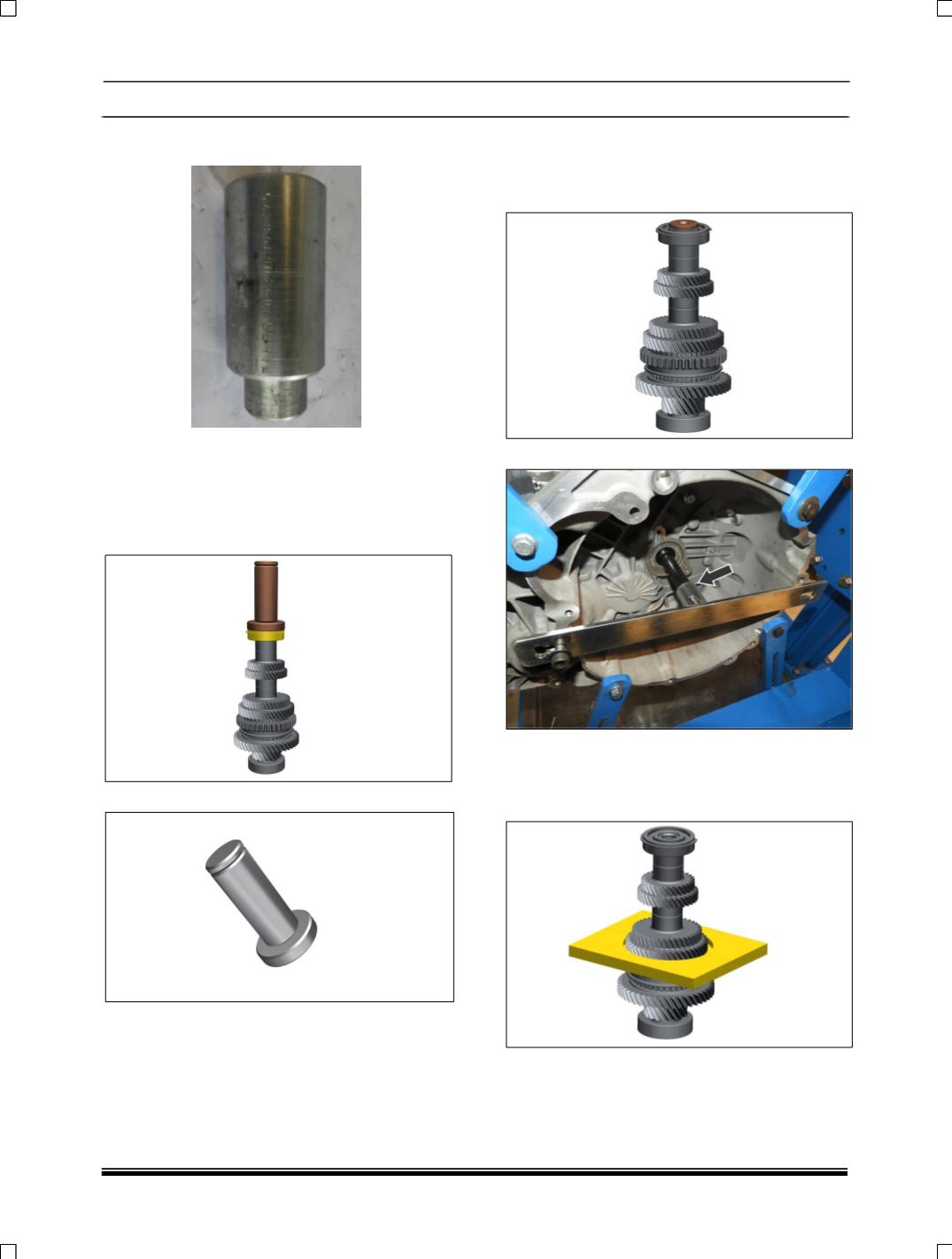

Spacer for removing Deep Groove ball bearing

is 5438 5890 2604

D. ASSEMBLY OF DEEP GROOVE BALL

BEARING ON LAY SHAFT (USE FOR

BEARING REPLACEMENT ONLY)

1. Place and fit deep groove ball bearing (rear) on

input shaft using drift with part no. 2870 5890

3256.

DRIFT 2870 5890 3256

E. DISASSEMBLY OF LAY SHAFT:

1. Remove Locking Screw M18 X 1.5 by

interlocking Input & Lay shaft Assembly in

Gear Box Housing only.

Input shaft Locking Plate 5412 5890 2608

2. Remove Deep Groove Ball bearing, spacer,

with 5

, 4

, 3

& 2

speed gear using

Drift

2834 5890 2607 & Support plate 5412 5890

2606.
